SFU / HGU – how to change mode

Document Date and version	2020.10.29
Tested on OLT	Dasan V5808/V5816/V8102/V8106/V1-08XC Zyxel OLT2406/OLT1404A/OLT1408A Nokia (Alcatel-Lucent) ISAM FX-4/ISAM 7360 ZTE C320 FIBERHOME AN5516-04 Huawei MA5600T/MA5683T/MA5800-X15
Tested with ONT HALNy HL-1GE, HL-4G Tested with ONT HALNy HL-2GRV Tested with ONT HALNy HL-2BV	Supported on Version: V2.0.10 or above Supported on Version: V3.0.19 or above Supported on Version: V4.0.3 or above
Revision	1

Let us know how to improve below document on: support@halny.com

Changing mode through ONT web interface

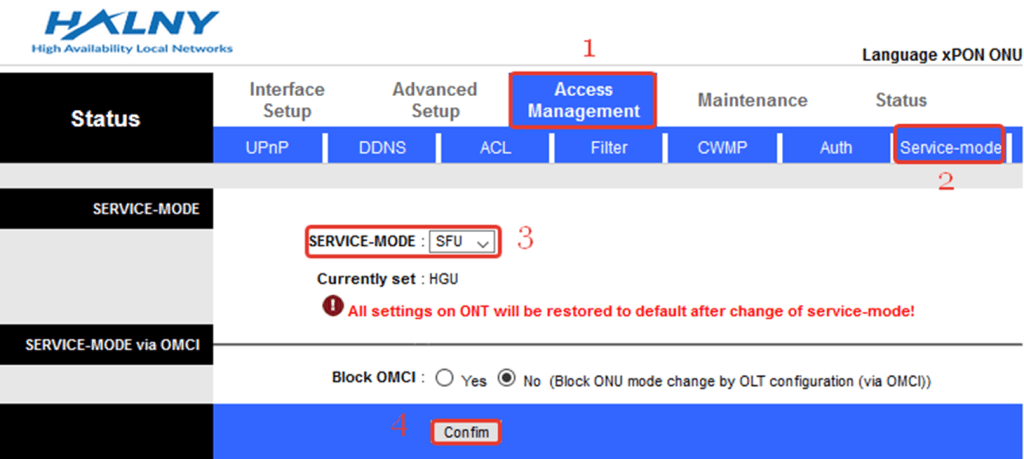

By default, ONT is enabled in HGU mode (new ONT taken out from the box). If OLT does not support auto-switching, to change mode You should go to ONT web interface from IP-host 1 address or LAN IP 192.168.33.1. Next, You should go to Access Management -> Service-mode, select proper mode and click “Confirm” button. After that ONT will restarts, when he turn on, new configuration will be applied.

NOTE:
The operating mode is an important setting that it must be a conscious change, carried out by the administrator.
ONT won’t switch back to HGU mode after restore to factory process (through the button, OLT CLI command and WWW interface), to return previous mode You need to change it through web interface or use correct profile in OLT configuration (if OLT supports this function – see list above)

Changing mode through OLT CLI interface

When OLT supports auto mode switching, to switch mode You need only assign a correct profile to ONT. The device automatically sets the correct mode and restarts.

NOTE:

When You use auto mode switching on NOKIA OLTs You need except changing configuration, also restart ONT or change port admin-state, below an example for ONT 16 connected to port 1:
configure equipment ont interface 1/1/1/1/16 admin-state down
configure equipment ont interface 1/1/1/1/16 admin-state up

NOTE:

When You use auto mode switching on Huawei OLTs You need except changing configuration, also restart or reactivate ONT, below an example for ONT 5 connected to port 0/2:
MA5683T(config-if-gpon-0/0)#ont reset 2 5
Resetting the ONT(s) will interrupt all services on the ONT(s)
Are you sure to reset the ONT(s)? (y/n)[n]: y

MA5683T(config-if-gpon-0/0)#ont deactivate 2 5
MA5683T(config-if-gpon-0/0)#ont activate 2 5

NOTE:

When You use auto mode switching on ZTE OLTs You need except changing configuration, also restart or reactivate ONT, below an example for ONT 3 connected to port 2:
ZXAN(config)#interface gpon-onu_1/1/2:3
ZXAN(config-if)#action deactive

NOTE:

When You use auto mode switching on FIBERHOME OLTs You need except changing configuration, also restart or reactivate ONT, below an example for ONT 9 connected to port 8:
admin\onu# set pon_onoff slot 1 pon 8 onu 9 status off
admin\onu# set pon_onoff slot 1 pon 8 onu 9 status on

NOTE:

When You use auto mode switching on CALIX OLTs You need except changing configuration, also restart or reactivate ONT.

NOTE:

When You use auto mode switching on ADTRAN OLTs You need except changing configuration, also restart or reactivate ONT, below an example for ONT 14 connected to port 1:
interface virtual-gigabit-ethernet 14/0/1@1/6/1.gpon
mac limit 8
shutdown

You have to use a “shutdown” for SFU mode and “no shutdown” for HGU mode.

If You need to run ONT with proper mode (SFU or HGU) please use configuration for yours OLT from below table (remember to customize the configuration to your network, like VLANs and etc.)

OLT VENDOR/MODEL	SFU mode	HGU mode	How check mode from CLI	From FW (and newer)
Dasan V5808/V5816/V8102/V8106/V1-08XC	HL-1GE, HL-4G, HL-2GRV, HL-2BV	HL-1GE, HL-4G, HL-2GRV, HL-2BV	LINK	HL-1GE – V2.0.11 HL-4G – V2.0.11 HL-2GRV – V3.0.19 HL-2BV – V4.0.3
Zyxel OLT2406/OLT1404A/OLT1408A	HL-1GE, HL-4G	HL-1GE, HL-4G		HL-1GE – V2.0.11 HL-4G – V2.0.11
Nokia ISAM FX-4/ISAM 7360	HL-1GE, HL-4G, HL-2BV	HL-1GE, HL-4G, HL-2BV	LINK	HL-1GE – V2.0.11 HL-4G – V2.0.11
ZTE C320,C300 (v1.2.5p3)	HL-1GE, HL-4G	HL-1GE, HL-4G		HL-1GE – V2.0.13 HL-4G – V2.0.13
ZTE C320,C300 (v2.1.0)	HL-1GE, HL-4G	HL-1GE, HL-4G		HL-1GE – V2.0.13 HL-4G – V2.0.13
FIBERHOME AN5516-04	HL-1GE	HL-1GE		HL-1GE – V2.0.14
Huawei MA5600T/MA5683T/MA5800-X15	HL-1GE, HL-4G, HL-2GRV, HL-2BV	HL-1GE, HL-4G, HL-2GRV, HL-2BV		HL-1GE – V2.0.14 HL-4G – V2.0.14 HL-2GRV – V3.0.19 HL-2BV – V4.0.3
Calix E7	HL-1GE	HL-1GE		HL-1GE V2.0.16
ADTRAN TA5006	HL-1GE, HL-2GRV	HL-1GE, HL-2GRV		HL-1GE – V2.0.25 HL-2GRV – V3.1.24

---
