HALNy Integration

Suported service scenarios

1. ONT Configuration (Access Mode – only INTERNET)

Attention: Following configuration example is based on the HL-1GE model, which features 1 LAN ports and 0 POTS ports. Adjust the configuration as needed to suit your ONT model.

View ONT port table

ONT is connected to the port 1/1/1 with onu ID 8
1. Create ONT interface and set up admin-state

admin>#configure equipment ont interface 1/1/1/1/8 sernum HALN:0002F163 sw-ver-pland disabled iphc-allowed enable enable-aes disable
configure>equipment>ont>interface>1/1/1/1/8 admin-state up

2. Plan card slot type and definie quantity and type of ports (1 ETH in case of HL-1GE)

Remember to correctly specify the number of LAN and POTS ports on your ONT!

admin>#configure equipment ont slot 1/1/1/1/8/1 planned-card-type 10_100base plndnumdataports 1 plndnumvoiceports 0 admin-state up

NOTE:
Slot 1 is for Ethernet card -> #configure equipment ont slot 1/1/1/1/8/1

3. Create QoS profile

#configure qos profiles bandwidth 1G committed-info-rate 0 assured-info-rate 0 excessive-info-rate 1000000
#configure qos profiles bandwidth 10G committed-info-rate 0 assured-info-rate 0 excessive-info-rate 10000000

4. Set ethernet port speed/duplex and assign DBA profile

Attention: For ONT’s which have port 10G please use qos profile 10G

admin>#configure ethernet ont 1/1/1/1/8/1/1 auto-detect auto admin-state up
admin>#configure qos interface 1/1/1/1/8/1/1 upstream-queue 0 bandwidth-profile name:1G

5. Add vlan 100 to the bridge port

admin>#configure bridge port 1/1/1/1/8/1/1
admin>configure>bridge>port>1/1/1/1/8/1/1$ vlan-id 100 tag untagged
admin>configure>bridge>port>1/1/1/1/8/1/1>vlan-id>100$ exit
admin>configure>bridge>port>1/1/1/1/8/1/1# pvid 100
admin>configure>bridge>port>1/1/1/1/8/1/1# max-unicast-mac 200

6. Optionally configure ip-host 1

#configure qos interface 1/1/1/1/8/vuni upstream-queue 0 bandwidth-profile name:1G
#configure bridge port 1/1/1/1/8/vuni
#configure>bridge>port>1/1/1/1/8/vuni$ vlan-id 400
#configure iphost ont ont:1/1/1/1/8/1 dhcp enabled vlan 400
#typ:isadmin>configure>iphost>ont>ont:1/1/1/1/8/1$ admin-state up

7. Display ONT ip-host 1 address

#show iphost ont operational-data
operational-data table
=========================================================================================================
index                    |ip-address     |net-mask       |default-router |dns-addr      |sec-dns-addr
-------------------------+---------------+---------------+---------------+--------------+---------------
ont:1/1/1/1/8/1           172.17.180.90    255.255.255.0   172.17.180.1   172.16.180.240  185.228.168.168

NOTE: In order to ip-host work properly, the broadcast should be enabled on VLAN

#configure vlan id 400 new-broadcast enable

2. ONT Configuration (Access Mode – only IPTV)

Attention: Following configuration example is based on the HL-1GE model, which features 1 LAN ports and 0 POTS ports. Adjust the configuration as needed to suit your ONT model.

View ONT port table

ONT is connected to the port 1/1/1 with onu ID 8
1. Create ONT interface and set up admin-state

admin>#configure equipment ont interface 1/1/1/1/8 sernum HALN:0002F163 sw-ver-pland disabled iphc-allowed enable enable-aes disable
configure>equipment>ont>interface>1/1/1/1/8 admin-state up

2. Plan card slot type and definie quantity and type of ports (1 ETH in case of HL-1GE)

Remember to correctly specify the number of LAN and POTS ports on your ONT!

admin>#configure equipment ont slot 1/1/1/1/8/1 planned-card-type 10_100base plndnumdataports 1 plndnumvoiceports 0 admin-state up

NOTE:
Slot 1 is for Ethernet card -> #configure equipment ont slot 1/1/1/1/8/1

3. Create QoS profile

#configure qos profiles bandwidth 1G committed-info-rate 0 assured-info-rate 0 excessive-info-rate 1000000
#configure qos profiles bandwidth 10G committed-info-rate 0 assured-info-rate 0 excessive-info-rate 10000000

4. Set ethernet port speed/duplex and assign DBA profile

Attention: For ONT’s which have port 10G please use qos profile 10G

admin>#configure ethernet ont 1/1/1/1/8/1/1 auto-detect auto admin-state up
admin>#configure qos interface 1/1/1/1/8/1/1 upstream-queue 0 bandwidth-profile name:1G

5. Add vlan 200 to the bridge port

admin>#configure bridge port 1/1/1/1/8/1/1
admin>configure>bridge>port>1/1/1/1/8/1/1$ vlan-id 200 tag untagged
admin>configure>bridge>port>1/1/1/1/8/1/1>vlan-id>200$ exit
admin>configure>bridge>port>1/1/1/1/8/1/1# pvid 200
admin>configure>bridge>port>1/1/1/1/8/1/1# max-unicast-mac 200

Remember to enable multicast control and forwarding on vlan 200

admin>#configure id 200 mode residential-bridge ipv4-mcast-ctrl mac-mcast-ctrl in-qos-prof-name name:Default_TC0

6. Optionally configure ip-host 1

#configure qos interface 1/1/1/1/8/vuni upstream-queue 0 bandwidth-profile name:1G
#configure bridge port 1/1/1/1/8/vuni
#configure>bridge>port>1/1/1/1/8/vuni$ vlan-id 400
#configure iphost ont ont:1/1/1/1/8/1 dhcp enabled vlan 400
#typ:isadmin>configure>iphost>ont>ont:1/1/1/1/8/1$ admin-state up

7. Display ONT ip-host 1 address

#show iphost ont operational-data
operational-data table
=========================================================================================================
index                    |ip-address     |net-mask       |default-router |dns-addr      |sec-dns-addr
-------------------------+---------------+---------------+---------------+--------------+---------------
ont:1/1/1/1/8/1           172.17.180.90    255.255.255.0   172.17.180.1   172.16.180.240  185.228.168.168

NOTE: In order to ip-host work properly, the broadcast should be enabled on VLAN

#configure vlan id 400 new-broadcast enable

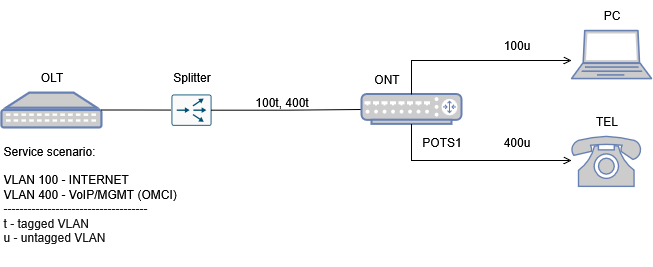

3. ONT Configuration (Access Mode – INTERNET + VoIP)

Attention: Following configuration example is based on the HLX-1TLV model, which features 1 LAN port and 1 POTS ports. Adjust the configuration as needed to suit your ONT model.

View ONT port table


ONT is connected to the port 1/1/1/1 with onu ID 8

1. Create ONT interface and set up admin-state

    #configure equipment ont interface 1/1/1/1/8 sernum HALN:977B3850 sw-ver-pland disabled iphc-allowed enable enable-aes disable
configure>equipment>ont>interface>1/1/1/1/8 admin-state up

    2. Plan card slot type and definie quantity and type of ports (1 ETH in case of HLX-1TLV) and 1x POTS

      Remember to correctly specify the number of LAN and POTS ports on your ONT!

      #configure equipment ont slot 1/1/1/1/8/1 planned-card-type ethernet plndnumdataports 1 plndnumvoiceports 0 admin-state up
#configure equipment ont slot 1/1/1/1/8/4 planned-card-type pots plndnumdataports 0 plndnumvoiceports 1 admin-state up

      NOTE:
      Slot 1 is for Ethernet card -> #configure equipment ont slot 1/1/1/1/8/1
      Slot 4 is for POTS card-> #configure equipment ont slot 1/1/1/1/8/4
      Only for HLX-1TLV model:
      Slot 8 is for Ethernet 10G port/card -> #configure equipment ont slot 1/1/1/13/8

      Configuration for exp. HL-1GE differs and is shown below.

      #configure equipment ont slot 1/1/1/1/8/1 planned-card-type 10_100base plndnumdataports 1 plndnumvoiceports 0 admin-state up
#configure equipment ont slot 1/1/1/1/8/4 planned-card-type pots plndnumdataports 0 plndnumvoiceports 1 admin-state up

      3. Create QoS profile

      #configure qos profiles bandwidth 1G committed-info-rate 0 assured-info-rate 0 excessive-info-rate 1000000
#configure qos profiles bandwidth 10G committed-info-rate 0 assured-info-rate 0 excessive-info-rate 10000000

      4. Set ethernet ports speed/duplex and assign DBA profile

      Attention: For ONT’s which have port 10G please use qos profile 10G

      #configure ethernet ont 1/1/1/1/8/8/1 auto-detect auto admin-state up
#configure qos interface 1/1/1/1/8/8/1 upstream-queue 0 bandwidth-profile name:10G

      Configuration for exp. HL-1GE differs and is shown below.

      #configure ethernet ont 1/1/1/1/8/1/1 auto-detect auto admin-state up
#configure qos interface 1/1/1/1/8/1/1 upstream-queue 0 bandwidth-profile name:1G

      5. Add vlan 100 to the bridge port eth1

      admin>#configure bridge port 1/1/1/1/8/8/1
admin>configure>bridge>port>1/1/1/1/8/8/1$ vlan-id 100 tag untagged
admin>configure>bridge>port>1/1/1/1/8/8/1>vlan-id>100 exit
admin>configure>bridge>port>1/1/1/1/8/8/1# pvid 100
admin>configure>bridge>port>1/1/1/1/8/8/1# max-unicast-mac 10

      Configuration for exp. HL-1GE differs and is shown below.

      admin>#configure bridge port 1/1/1/1/8/1/1
admin>configure>bridge>port>1/1/1/1/8/1/1$ vlan-id 100 tag untagged
admin>configure>bridge>port>1/1/1/1/8/1/1>vlan-id>100$ exit
admin>configure>bridge>port>1/1/1/1/8/1/1# pvid 100
admin>configure>bridge>port>1/1/1/1/8/1/1# max-unicast-mac 10

      6. Configure ip-host 1 for VoIP and management

      #configure qos interface 1/1/1/1/8/vuni upstream-queue 0 bandwidth-profile name:1G
#configure bridge port 1/1/1/1/8/vuni
#configure>bridge>port>1/1/1/1/8/vuni$ vlan-id 400
#configure iphost ont ont:1/1/1/1/8/1 dhcp enabled vlan 400
#configure iphost ont ont:1/1/1/1/8/1 admin-state up

      7. Configure and enable VOIP port

      #configure interface port voip:1/1/1/1/8 admin-up
#configure voice ont voip-config ont:1/1/1/1/8/1 protocol sip

      8. Add SIP configuration profiles (global config)

      #configure voice ont auth-sec-prof 7 name CENTRALA_VOIP validation-scheme md5-digest realm 172.16.16.2
#configure voice ont uri-prof 7 name CENTRALA_VOIP address 172.16.16.2
#configure voice ont sec-uri-profile 7 name CENTRALA_VOIP auth-securi-prof 7 uri-prof 7
#configure voice ont voip-app-service 7 name CENTRALA_APP calling-number enable calling-name enable caller-id-number private caller-id-name private dir-conn-prof none bridge-prof none conf-prof none

      9. Add VoIP account configuration

      configure voice ont sip-config ont:1/1/1/1/8/1 proxyserv-prof 7 outproxyserv-prof 7 aor-host-prt-prof 7 registrar-prof 7
configure voice ont voice-sip-port 1/1/1/1/8/4/1 display-name 9001 user-name 9001 password plain:123456 app-serv-prof 7
configure voice ont voice-port 1/1/1/1/8/4/1 voipconfig sip admin-state unlocked
configure voice ont pots 1/1/1/1/8/4/1 admin-state unlocked

      9*. Add VoIP account configuration with dial plan (optional)

      configure voice ont nwdial-plan-prof 3 name test digitmap1 "411|[0-1][2-9]xxxxxxxxxT|[2-9]xxxxxxxxxT"
configure voice ont sip-config ont:1/1/1/1/8/1 proxyserv-prof 7 outproxyserv-prof 7 aor-host-prt-prof 7 registrar-prof 7
configure voice ont voice-sip-port 1/1/1/1/8/4/1 display-name 9001 user-name 9001 password plain:123456 app-serv-prof 7 ntwk-dp-prof 3
configure voice ont voice-port 1/1/1/1/8/4/1 voipconfig sip admin-state unlocked
configure voice ont pots 1/1/1/1/8/4/1 admin-state unlocked

      10. Display ONT ip-host 1 address

      #show iphost ont operational-data
operational-data table
=========================================================================================================
index                    |ip-address     |net-mask       |default-router |dns-addr      |sec-dns-addr
-------------------------+---------------+---------------+---------------+--------------+---------------
ont:1/1/1/1/8/1           172.17.180.90    255.255.255.0   172.17.180.1   172.16.180.240  185.228.168.168

      NOTE: In order to ip-host work properly, the broadcast should be enabled on VLAN

      #configure vlan id 400 new-broadcast enable

      4. ONT Configuration (Transparent Mode – INTERNET, VOIP, IPTV)

      Attention: Following configuration example is based on the HL-1GE model, which features 1 LAN ports and 0 POTS ports. Adjust the configuration as needed to suit your ONT model.

      View ONT port table

      ONT is connected to the port 1/1/1 with onu ID 8
      1. Create ONT interface and set up admin-state

      admin>#configure equipment ont interface 1/1/1/1/8 sernum HALN:0002F163 sw-ver-pland disabled iphc-allowed enable enable-aes disable
configure>equipment>ont>interface>1/1/1/1/8 admin-state up

      2. Plan card slot type and definie quantity and type of ports (1 ETH in case of HL-1GE)

      Remember to correctly specify the number of LAN and POTS ports on your ONT!

      admin>#configure equipment ont slot 1/1/1/1/8/1 planned-card-type 10_100base plndnumdataports 1 plndnumvoiceports 0 admin-state up

      NOTE:
      Slot 1 is for Ethernet card -> #configure equipment ont slot 1/1/1/1/8/1

      3. Create QoS profile

      #configure qos profiles bandwidth 1G committed-info-rate 0 assured-info-rate 0 excessive-info-rate 1000000
#configure qos profiles bandwidth 10G committed-info-rate 0 assured-info-rate 0 excessive-info-rate 10000000

      4. Set ethernet port speed/duplex and assign DBA profile

      Attention: For ONT’s which have port 10G please use qos profile 10G

      admin>#configure ethernet ont 1/1/1/1/8/1/1 auto-detect auto admin-state up
admin>#configure qos interface 1/1/1/1/8/1/1 upstream-queue 0 bandwidth-profile name:1G

      5. Add vlans 100, 200,300 as tagged to the bridge port

      admin>configure>bridge>port>1/1/1/1/8/1/1$ vlan-id 100 tag single-tagged
admin>configure>bridge>port>1/1/1/1/8/1/1>vlan-id>100$ exit
admin>configure>bridge>port>1/1/1/1/8/1/1$ vlan-id 200 tag single-tagged
admin>configure>bridge>port>1/1/1/1/8/1/1>vlan-id>200$ exit
admin>configure>bridge>port>1/1/1/1/8/1/1$ vlan-id 300 tag single-tagged
admin>configure>bridge>port>1/1/1/1/8/1/1>vlan-id>300$ exit
admin>configure>bridge>port>1/1/1/1/8/1/1# max-unicast-mac 200

      Remember to enable multicast control and forwarding on vlan 200

      admin>#configure id 200 mode residential-bridge ipv4-mcast-ctrl mac-mcast-ctrl in-qos-prof-name name:Default_TC0

      6. Optionally configure ip-host 1

      #configure qos interface 1/1/1/1/8/vuni upstream-queue 0 bandwidth-profile name:1G
#configure bridge port 1/1/1/1/8/vuni
#configure>bridge>port>1/1/1/1/8/vuni$ vlan-id 400
#configure iphost ont ont:1/1/1/1/8/1 dhcp enabled vlan 400
#typ:isadmin>configure>iphost>ont>ont:1/1/1/1/8/1$ admin-state up

      7. Display ONT ip-host 1 address

      #show iphost ont operational-data
operational-data table
=========================================================================================================
index                    |ip-address     |net-mask       |default-router |dns-addr      |sec-dns-addr
-------------------------+---------------+---------------+---------------+--------------+---------------
ont:1/1/1/1/8/1           172.17.180.90    255.255.255.0   172.17.180.1   172.16.180.240  185.228.168.168

      NOTE: In order to ip-host work properly, the broadcast should be enabled on VLAN

      #configure vlan id 400 new-broadcast enable

      5. ONT Configuration (Vlan Translation – RBSA)

      Attention: Following configuration example is based on the HL-1GE model, which features 1 LAN ports and 0 POTS ports. Adjust the configuration as needed to suit your ONT model.

      View ONT port table

      ONT is connected to the port 1/1/1 with onu ID 8
      1. Create ONT interface and set up admin-state

      admin>#configure equipment ont interface 1/1/1/1/8 sernum HALN:0002F163 sw-ver-pland disabled iphc-allowed enable enable-aes disable
configure>equipment>ont>interface>1/1/1/1/8 admin-state up

      2. Plan card slot type and definie quantity and type of ports (1 ETH in case of HL-1GE)

      Remember to correctly specify the number of LAN and POTS ports on your ONT!

      admin>#configure equipment ont slot 1/1/1/1/8/1 planned-card-type 10_100base plndnumdataports 1 plndnumvoiceports 0 admin-state up

      NOTE:
      Slot 1 is for Ethernet card -> #configure equipment ont slot 1/1/1/1/8/1

      3. Create QoS profile

      #configure qos profiles bandwidth 1G committed-info-rate 0 assured-info-rate 0 excessive-info-rate 1000000
#configure qos profiles bandwidth 10G committed-info-rate 0 assured-info-rate 0 excessive-info-rate 10000000

      4. Set ethernet port speed/duplex and assign DBA profile

      Attention: For ONT’s which have port 10G please use qos profile 10G

      admin>#configure ethernet ont 1/1/1/1/8/1/1 auto-detect auto admin-state up
admin>#configure qos interface 1/1/1/1/8/1/1 upstream-queue 0 bandwidth-profile name:1G

      5. Add vlans 100, 200,300 as tagged to the bridge port and set vlan translation

      typ:admin>configure>bridge>port>1/1/1/1/8/1/1
typ:admin>configure>bridge>port>1/1/1/1/8/1/1# vlan-id 35 l2fwder-vlan 100 vlan-scope local
typ:admin>configure>bridge>port>1/1/1/1/8/1/1# vlan-id 838 l2fwder-vlan 200 vlan-scope local
typ:admin>configure>bridge>port>1/1/1/1/8/1/1# vlan-id 839 l2fwder-vlan 300 vlan-scope local
typ:admin>configure>bridge>port>1/1/1/1/8/1/1 max-unicast-mac 200

      Remember to enable multicast control and forwarding on vlan 200

      admin>#configure id 200 mode residential-bridge ipv4-mcast-ctrl mac-mcast-ctrl in-qos-prof-name name:Default_TC0

      6. Add user identification string to vlan 35 and vlan 838

      configure interface port vlan-port:1/1/1/1/8/1/1:35 admin-up user "00C1777A22#1#01#01:08.01.01"
configure interface port vlan-port:1/1/1/1/8/1/1:838 admin-up user "03#1#01#01:08.01.01"

      7.Add onu description

      configure equipment ont interface 1/1/1/1/8 desc1 DESCRIPTION
configure equipment ont interface 1/1/1/1/8 desc2 DESCRIPTION2

      8. Optionally configure ip-host 1

      #configure qos interface 1/1/1/1/8/vuni upstream-queue 0 bandwidth-profile name:1G
#configure bridge port 1/1/1/1/8/vuni
#configure>bridge>port>1/1/1/1/8/vuni$ vlan-id 400
#configure iphost ont ont:1/1/1/1/8/1 dhcp enabled vlan 400
#typ:isadmin>configure>iphost>ont>ont:1/1/1/1/8/1$ admin-state up

      9. Display ONT ip-host 1 address

      #show iphost ont operational-data
operational-data table
=========================================================================================================
index                    |ip-address     |net-mask       |default-router |dns-addr      |sec-dns-addr
-------------------------+---------------+---------------+---------------+--------------+---------------
ont:1/1/1/1/8/1           172.17.180.90    255.255.255.0   172.17.180.1   172.16.180.240  185.228.168.168

      NOTE: In order to ip-host work properly, the broadcast should be enabled on VLAN

      #configure vlan id 400 new-broadcast enable

      6. ONT Configuration (QinQ – INTERNET, VOIP, IPTV – unrestricted c-VLANs)

      Attention: Following configuration example is based on the HL-1GE model, which features 1 LAN ports and 0 POTS ports. Adjust the configuration as needed to suit your ONT model.

      View ONT port table

      Before ONT configuration, set VLAN stacking on OLT (with NOT specified C-VLANs)

      configure vlan id stacked:999:0 mode residential-bridge in-qos-prof-name name:Default_TC0


      ONT is connected to the port 1/1/1 with onu ID 8
      1. Create ONT interface and set up admin-state

      admin>#configure equipment ont interface 1/1/1/1/8 sernum HALN:0002F163 sw-ver-pland disabled iphc-allowed enable enable-aes disable
configure>equipment>ont>interface>1/1/1/1/8 admin-state up

      2. Plan card slot type and definie quantity and type of ports (1 ETH in case of HL-1GE)

      Remember to correctly specify the number of LAN and POTS ports on your ONT!

      admin>#configure equipment ont slot 1/1/1/1/8/1 planned-card-type 10_100base plndnumdataports 1 plndnumvoiceports 0 admin-state up

      NOTE:
      Slot 1 is for Ethernet card -> #configure equipment ont slot 1/1/1/1/8/1

      3. Create QoS profile

      #configure qos profiles bandwidth 1G committed-info-rate 0 assured-info-rate 0 excessive-info-rate 1000000
#configure qos profiles bandwidth 10G committed-info-rate 0 assured-info-rate 0 excessive-info-rate 10000000

      4. Set ethernet port speed/duplex and assign DBA profile

      Attention: For ONT’s which have port 10G please use qos profile 10G

      admin>#configure ethernet ont 1/1/1/1/8/1/1 auto-detect auto admin-state up
admin>#configure qos interface 1/1/1/1/8/1/1 upstream-queue 0 bandwidth-profile name:1G

      5. Add S-VLAN as stacked VLAN 999

      typ:admin>configure>bridge>port>1/1/1/1/8/1/1 max-unicast-mac 200
 vlan-id stacked:999:0
 tag single-tagged
exit

pvid stacked:999:0

      Remember to enable multicast control and forwarding on vlan 200

      admin>#configure id 200 mode residential-bridge ipv4-mcast-ctrl mac-mcast-ctrl in-qos-prof-name name:Default_TC0

      6. Optionally configure ip-host 1

      #configure qos interface 1/1/1/1/8/vuni upstream-queue 0 bandwidth-profile name:1G
#configure bridge port 1/1/1/1/8/vuni
#configure>bridge>port>1/1/1/1/8/vuni$ vlan-id 400
#configure iphost ont ont:1/1/1/1/8/1 dhcp enabled vlan 400
#typ:isadmin>configure>iphost>ont>ont:1/1/1/1/8/1$ admin-state up

      7. Display ONT ip-host 1 address

      #show iphost ont operational-data
operational-data table
=========================================================================================================
index                    |ip-address     |net-mask       |default-router |dns-addr      |sec-dns-addr
-------------------------+---------------+---------------+---------------+--------------+---------------
ont:1/1/1/1/8/1           172.17.180.90    255.255.255.0   172.17.180.1   172.16.180.240  185.228.168.168

      NOTE: In order to ip-host work properly, the broadcast should be enabled on VLAN

      #configure vlan id 400 new-broadcast enable

      7. ONT Configuration (QinQ – INTERNET, VOIP, IPTV – restricted c-VLANs)

      Attention: Following configuration example is based on the HL-1GE model, which features 1 LAN ports and 0 POTS ports. Adjust the configuration as needed to suit your ONT model.

      View ONT port table

      Before ONT configuration, set VLAN stacking on OLT (with specified C-VLANs)

      configure vlan id stacked:999:100 mode residential-bridge in-qos-prof-name name:Default_TC0
configure vlan id stacked:999:200 mode residential-bridge in-qos-prof-name name:Default_TC0
configure vlan id stacked:999:300 mode residential-bridge in-qos-prof-name name:Default_TC0

      ONT is connected to the port 1/1/1 with onu ID 8
      1. Create ONT interface and set up admin-state

      admin>#configure equipment ont interface 1/1/1/1/8 sernum HALN:0002F163 sw-ver-pland disabled iphc-allowed enable enable-aes disable
configure>equipment>ont>interface>1/1/1/1/8$ admin-state up

      2. Plan card slot type and definie quantity and type of ports (1 ETH in case of HL-1GE)

      Remember to correctly specify the number of LAN and POTS ports on your ONT!

      admin>#configure equipment ont slot 1/1/1/1/8/1 planned-card-type 10_100base plndnumdataports 1 plndnumvoiceports 0 admin-state up

      NOTE:
      Slot 1 is for Ethernet card -> #configure equipment ont slot 1/1/1/1/8/1

      3. Create QoS profile

      #configure qos profiles bandwidth 1G committed-info-rate 0 assured-info-rate 0 excessive-info-rate 1000000
#configure qos profiles bandwidth 10G committed-info-rate 0 assured-info-rate 0 excessive-info-rate 10000000

      4. Set ethernet port speed/duplex and assign DBA profile

      Attention: For ONT’s which have port 10G please use qos profile 10G

      admin>#configure ethernet ont 1/1/1/1/8/1/1 auto-detect auto admin-state up
admin>#configure qos interface 1/1/1/1/8/1/1 upstream-queue 0 bandwidth-profile name:1G

      5. Add S-VLAN as stacked VLAN 999

      typ:admin>configure>bridge>port>1/1/1/1/8/1/1
  max-unicast-mac 200
  vlan-id 100
    tag single-tagged
    l2fwder-vlan stacked:999:100
    vlan-scope local
 exit
  vlan-id 200
    tag single-tagged
    l2fwder-vlan stacked:999:200
    vlan-scope local
 exit
  vlan-id 300
    tag single-tagged
    l2fwder-vlan stacked:999:300
    vlan-scope local
  exit

      Remember to enable multicast control and forwarding on vlan 200

      admin>#configure id stacked:999:200 mode residential-bridge ipv4-mcast-ctrl mac-mcast-ctrl in-qos-prof-name name:Default_TC0

      6. Optionally configure ip-host 1

      #configure qos interface 1/1/1/1/8/vuni upstream-queue 0 bandwidth-profile name:1G
#configure bridge port 1/1/1/1/8/vuni
#configure>bridge>port>1/1/1/1/8/vuni$ vlan-id 400
#configure iphost ont ont:1/1/1/1/8/1 dhcp enabled vlan 400
#typ:isadmin>configure>iphost>ont>ont:1/1/1/1/8/1$ admin-state up

      7. Display ONT ip-host 1 address

      #show iphost ont operational-data
operational-data table
=========================================================================================================
index                    |ip-address     |net-mask       |default-router |dns-addr      |sec-dns-addr
-------------------------+---------------+---------------+---------------+--------------+---------------
ont:1/1/1/1/8/1           172.17.180.90    255.255.255.0   172.17.180.1   172.16.180.240  185.228.168.168

      NOTE: In order to ip-host work properly, the broadcast should be enabled on VLAN

      #configure vlan id 400 new-broadcast enable

      ONT Managment

      Note: Most provisioning and upgrade options below require ONT to have a valid IP Host setup. For detailed information regarding IP Host click here.

      MethodConfigurationUpgrade
      Rest API V2[Example]–
      XML Provisioning
      [DHCP 66/67, WEB]      		[Example]–
      OTT–[Example]
      OLT CLI–[Example]
      TR-069
      [OLT CLI, DHCP 43]      		[Example][Example]
      WEB[Example][Example]
      Found something we can improve? Let us know at support@halny.com
      Tags:
      Table of Contents
      Comments are closed.
