[NOKIA] OLT Integration with HALNy HGU

Created On10 June 2025

Last Updated On8 December 2025

byAdrian Puk

HALNy Integration

Supported service scenarios

1. ONT configuration (Bridge access/Router NAT/PPPoE – INTERNET, IPTV, VoIP)

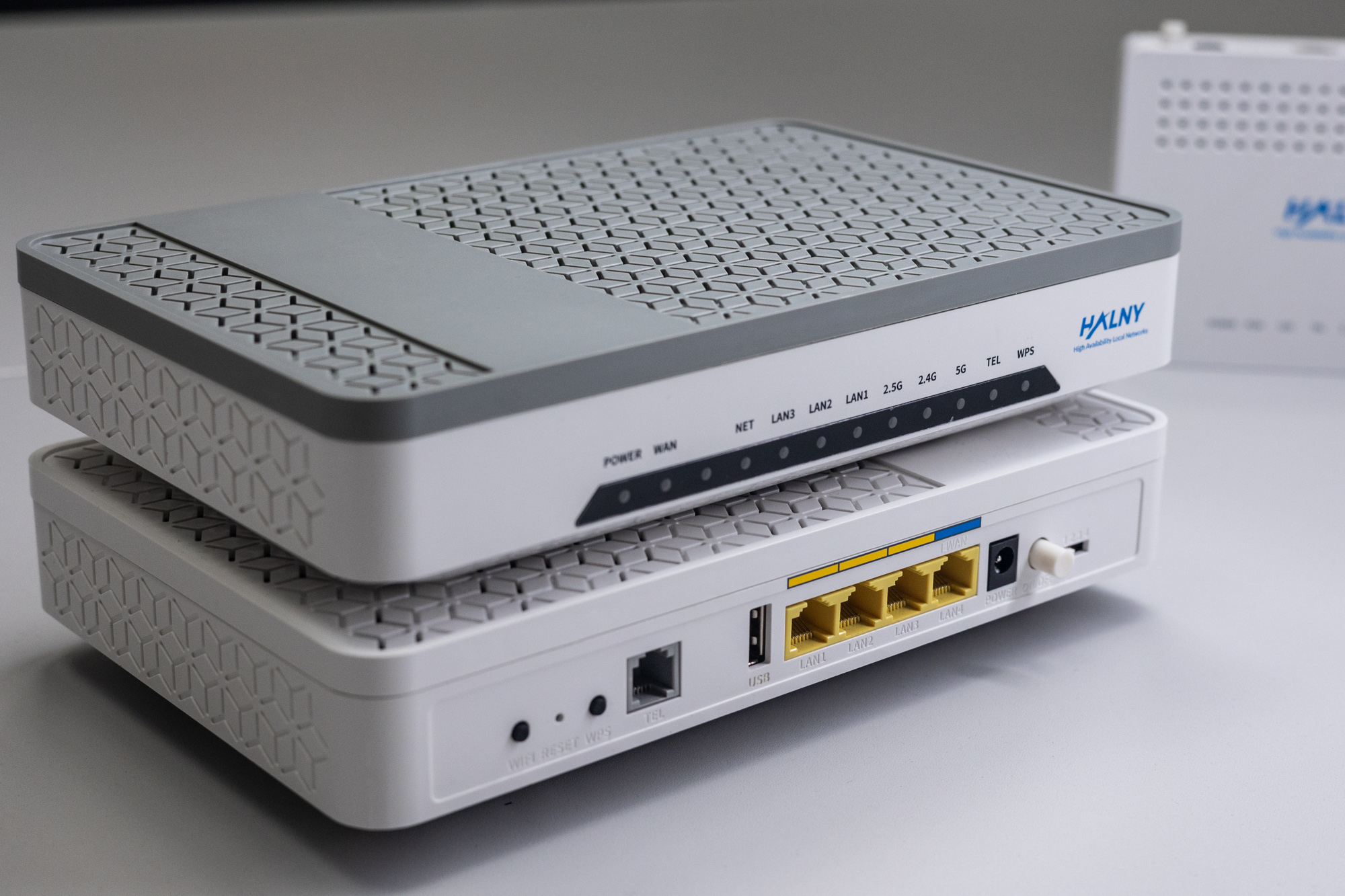

Attention: Following configuration example is based on the HL-4GMV2 model, which features 4 LAN ports and 2 POTS ports. Adjust the configuration as needed to suit your ONT model.

View ONT port table

ONT is connected to the port 1/1/1 with onu ID 13

1. Add ONT

#configure equipment ont interface 1/1/1/1/13 sernum HALN:606FDF30 sw-ver-pland disabled iphc-allowed enable enable-aes disabled
#configure equipment ont interface 1/1/1/1/13 admin-state up

2.ONT slot configuration:

Note:
Slot 1 is for Ethernet card -> #configure equipment ont slot 1/1/1/1/13/1
Slot 4 is for VoIP -> #configure equipment ont slot 1/1/1/1/13/4
Slot 10 is for VEIP ->#configure equipment ont slot 1/1/1/1/13/10
Only for HLX-TGV model:
Slot 8 is for Ethernet 10G port/card -> #configure equipment ont slot 1/1/1/13/8

Remember to correctly specify the number of LAN and POTS ports on your ONT!

#configure equipment ont slot 1/1/1/1/13/1 planned-card-type 10_100base plndnumdataports 4 plndnumvoiceports 0 admin-state up
#configure equipment ont slot 1/1/1/1/13/4 planned-card-type pots plndnumdataports 0 plndnumvoiceports 2 admin-state up
#configure equipment ont slot 1/1/1/1/13/10 planned-card-type veip plndnumdataports 1 plndnumvoiceports 0 admin-state up
#show equipment ont slot

Configuration for HLX-TGV differs and is shown below.

#configure equipment ont slot 1/1/1/1/13/1 planned-card-type 10_100base plndnumdataports 1 plndnumvoiceports 0 admin-state up
#configure equipment ont slot 1/1/1/1/13/4 planned-card-type pots plndnumdataports 0 plndnumvoiceports 2 admin-state up
#configure equipment ont slot 1/1/1/1/13/8 planned-card-type ethernet plndnumdataports 1 plndnumvoiceports 0 admin-state up
configure equipment ont slot 1/1/1/1/13/10 planned-card-type veip plndnumdataports 1 plndnumvoiceports 0 admin-state up

3. ONT QOS configuration:

#configure qos profiles bandwidth 1G committed-info-rate 0 assured-info-rate 0 excessive-info-rate 1000000
#configure qos profiles bandwidth 10G committed-info-rate 0 assured-info-rate 0 excessive-info-rate 10000000

4. ONT ip-host 1 configuration:

#configure qos interface 1/1/1/1/13/vuni upstream-queue 0 bandwidth-profile name:1G
#configure bridge port 1/1/1/1/13/vuni
#configure>bridge>port>1/1/1/1/13/vuni$ vlan-id 400
#configure iphost ont ont:1/1/1/1/13/1 dhcp enabled vlan 400
#typ:isadmin>configure>iphost>ont>ont:1/1/1/1/13/1$ admin-state up

5. Enable ONT eth ports

#configure ethernet ont 1/1/1/1/13/1/1 auto-detect auto admin-state up
typ:isadmin>configure>ethernet>ont>1/1/1/1/13/1/1# exit all
typ:isadmin># configure ethernet ont 1/1/1/1/13/1/2 auto-detect auto admin-state up
typ:isadmin>configure>ethernet>ont>1/1/1/1/13/1/2# exit all
typ:isadmin># configure ethernet ont 1/1/1/1/13/1/3 auto-detect auto admin-state up
typ:isadmin>configure>ethernet>ont>1/1/1/1/13/1/3# exit all
typ:isadmin># configure ethernet ont 1/1/1/1/13/1/4 auto-detect auto admin-state up

6. Enable VEIP

Attention: For ONT’s which have port 10G please use qos profile 10G

typ:isadmin># configure veip ont 1/1/1/1/13/10/1 admin-state up
typ:isadmin># configure qos interface 1/1/1/1/13/10/1 upstream-queue 0 bandwidth-profile name:1G
typ:isadmin># configure bridge port 1/1/1/1/13/10/1
typ:isadmin>configure>bridge>port>1/1/1/1/13/10/1$ max-unicast-mac 200
typ:isadmin>configure>bridge>port>1/1/1/1/13/10/1$ vlan-id 100 tag single-tagged
typ:isadmin>configure>bridge>port>1/1/1/1/13/10/1>vlan-id>100$ exit
typ:isadmin>configure>bridge>port>1/1/1/1/13/10/1# vlan-id 200 tag single-tagged
typ:isadmin>configure>bridge>port>1/1/1/1/13/10/1>vlan-id>200$ exit
typ:isadmin>configure>bridge>port>1/1/1/1/13/10/1# vlan-id 300 tag single-tagged
typ:isadmin>configure>bridge>port>1/1/1/1/13/10/1>vlan-id>300$ exit
typ:isadmin>configure>bridge>port>1/1/1/1/13/10/1# vlan-id 400 tag single-tagged
typ:isadmin>configure>bridge>port>1/1/1/1/13/10/1>vlan-id>400$ exit
typ:isadmin>configure>bridge>port>1/1/1/1/13/10/1# exit all

8. Display ONT ip-host 1 address

#show iphost ont operational-data
operational-data table
=========================================================================================================
index                    |ip-address     |net-mask       |default-router |dns-addr      |sec-dns-addr
-------------------------+---------------+---------------+---------------+--------------+---------------
ont:1/1/1/1/13/1           172.17.180.90    255.255.255.0   172.17.180.1   172.16.180.240  185.228.168.168

NOTE: In order to ip-host work properly, the broadcast should be enabled on VLAN

#configure vlan id 400 new-broadcast enable

ONT Managment

Note: Most provisioning and upgrade options below require ONT to have a valid IP Host setup. For detailed information regarding IP Host click here.

Method	Configuration	Upgrade
Rest API V2	[Example]	–
XML Provisioning [DHCP 66/67, WEB]	[Example]	–
OTT	–	[Example]
OLT CLI	–	[Example]
TR-069 [OLT CLI, DHCP 43]	[Example]	[Example]
WEB	[Example]	[Example]

Found something we can improve? Let us know at support@halny.com
