HALNy HL-2BV Configuration

Service scenario

HL-2BV can work in two modes – HGU (Home Gateway Unit) and SFU (Single Family Unit).
HGU mode configuration is presented here.
Managing ONT mode is done by setting up/or not bridge port and VEIP for ONT. In SFU mode we need to set bridge port.
In this tutorial, we will focus on SFU mode configuration.

ONT modes switching HGU<->SFU

Switching between HGU and SFU modes is described here.

This tutorial is based on ONT with firmware V4.0.10zh1 and ZHONE mx1U19x running with firmware MX 2.5.1.518

In example configuration we used below VLANs:
VLAN 100 – INTERNET
VLAN 200 – IPTV (multicast uplink port 3)
VLAN 300 – MGMT/VoIP

Example for ONT configured on second GPON port with ID 17

Change vendor serial number

• Log in to ONT via LAN: 192.168.33.1/cgi-bin/vendor-support.asp.
• Change Vendor to ZHONE ZNTS
• Apply configuration, ONT will reboot

Changing ONT’s serial number is described here

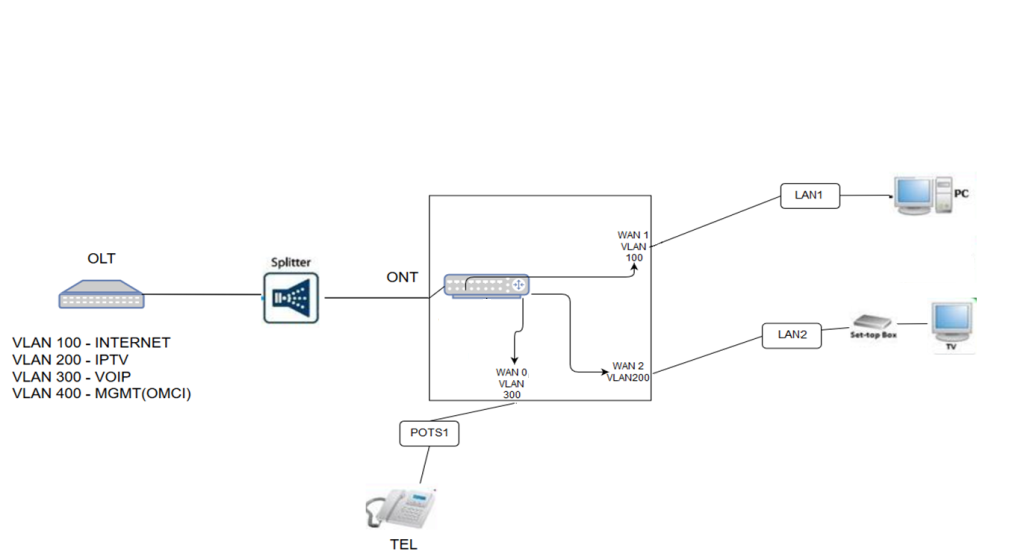

Supported SFU service scenario

1. ONT Configuration (Internet, IPTV, VoIP)

1. Create DBA profile

Zhone# new gpon-traffic-profile dba-enabled = true dba-fixed-us-ubr-bw = 1024 dba-max-us-bw = 102400 1

2. Check unregistered ONTs

Zhone# gpononu show
Processing list of 256
This command may take several minutes to complete.
Do you want to continue?  (yes or no) [no] yes
Free ONUs for slot 1 olt 1:
    1    2    3    4    5    6    7    8    9   10   11   12
   13   14   15   16   17   18   19   20   21   22   23   24
   25   26   27   28   29   30   31   32   33   34   35   36
   37   38   39   40   41   42   43   44   45   46   47   48
   49   50   51   52   53   54   55   56   57   58   59   60
   61   62   63   64
Discovered serial numbers for slot 1 olt 1:
sernoID   Vendor  Serial Number     sernoID   Vendor  Serial Number
    1      ZNTS    032FC351             2      ZNTS    5AFF64B0
    3      ZNTS    03361173

3. Register ONT on GPON

Zhone# onu set SLOT/OLT-ID/ONT-ID SERNO-ID meprof INTERNAL-ME
ex. Zhone# onu set 1/2/17 2 meprof zhone-2424

4. Disable ONT auto-configuration

Zhone# gpononu auto-cfg disable SLOT/OLT-ID/ONT-ID
ex. Zhone# gpononu auto-cfg disable 1/2/17

5. Configure ONT bridge services

#NET
Zhone# bridge add SHELF/SLOT/OLT-ID/ONT-ID/gpononu gem GEM gtp GTP-ID downlink vlan VID tagged cos COS rg
ex. Zhone# bridge add 1/1/2/17/gpononu gem 517 gtp 1 downlink vlan 100 tagged cos 0 eth 2

#IPTV
Zhone# bridge add SHELF/SLOT/OLT-ID/ONT-ID/gpononu gem GEM gtp GTP-ID downlink vlan VID tagged video ACL-ID/GROUP-NUM cos COS rg
ex. Zhone# bridge add 1/1/2/17/gpononu gem 717 gtp 1 downlink vlan 200 tagged video 0/20 cos 4 eth 1

6. Configure ONT VoIP / IP-host 1 service

Zhone# bridge add 1/1/2/17/gpononu gem 917 gtp 1 downlink vlan 300 tagged sip

7. Configure ONT VoIP service

new cpe-ip  1/1/2/17/gpononu/1
Please provide the following: [q]uit.
host-ip: ----------->  {0.0.0.0}: dhcp
Invalid IP address format. Try "n.n.n.n", where n is 0 to 255
host-ip: ----------->  {0.0.0.0}:
ip-server-profile: ->  {1}:
....................
Save new record? [s]ave, [c]hange or [q]uit: s
New record saved.

new cpe-voip-subscriber  1/1/2/17/gpononu/1
Please provide the following: [q]uit.
admin-state: ----------->  {up}:
dial-number: ----------->  {}: 9041
display-name: ---------->  {}: 9041
impedance: ------------->  {ohm600}:
rx-gain: --------------->  {0}:
tx-gain: --------------->  {0}:
transmission-path: ----->  {fulltimeonhookxmit}:
signalling-code: ------->  {loopstart}:
voip-server-profile: --->  {0}: 13
voip-features-profile: ->  {1}:
voip-media-profile: ---->  {1}:
phone-follows-wan: ----->  {disabled}:
password: -------------->  {** private **}: 123456
user-name: ------------->  {}: 9041
description: ----------->  {}: 9041
....................
Save new record? [s]ave, [c]hange or [q]uit: s
New record saved.

8. Verify ONT ip-host 1 IP address

Zhone# bridge show 1/1/2/17/gpononu vlan 500
         Orig
Type     VLAN/SLAN  VLAN/SLAN      Physical                  Bridge                              St  Table Data
---------------------------------------------------------------------------------------------------------------------
dwn                 Tagged  300    1/1/2/17/gpononu           1-1-2-917-gponport-500/bridge       UP  D e0:5a:9f:ff:64:b0
                                                                                                     D 172.17.60.27
                                                                                                     D fe80::e25a:9fff:feff:64b0
1 Bridge Interfaces displayed
