HALNy HL-1GE / HL-1GE2 / HL-1GC / HL-1GR / HL-1B SFU Configuration [ZHONE]

HALNy HL-1GE Configuration

Service scenario

HL-1GE / HL-1GE2 / HL-1GC / HL-1GR / HL-1B can work in two modes – HGU (Home Gateway Unit) and SFU (Single Family Unit).
HGU mode configuration is presented here.
Managing ONT mode is done by setting up/or not bridge port and VEIP for ONT. In SFU mode we need to set bridge port.
In this tutorial, we will focus on SFU mode configuration.

ONT modes switching HGU<->SFU

Switching between HGU and SFU modes is described here.

ONT configuration

This tutorial is based on ONT with firmware V2.0.27zh1 and ZHONE mx1U19x running with firmware MX 2.5.1.518

In example configuration we used below VLANs:
VLAN 100 – INTERNET

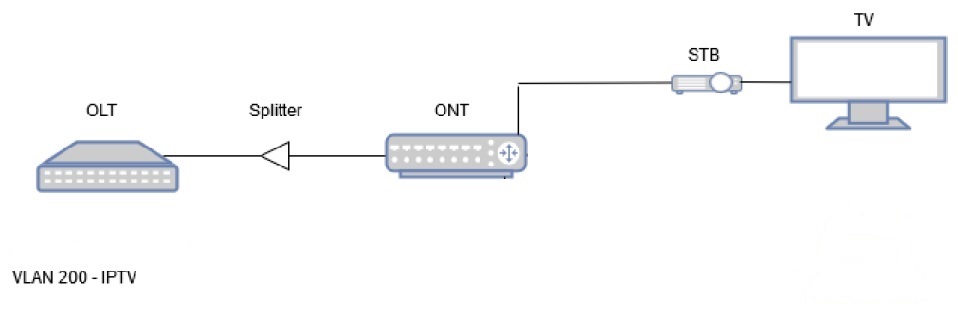

VLAN 200 – IPTV (multicast uplink port 3)
VLAN 400 – MGMT

Example for ONT configured on second GPON port with ID 14

Change vendor serial number

• Log in to ONT via LAN: 192.168.33.1/cgi-bin/vendor-support.asp.
• Change Vendor to ZHONE ZNTS
• Apply configuration, ONT will reboot

Changing ONT’s serial number is described here

Supported SFU service scenario

1. ONT configuration (Bridge access – INTERNET)

1. Create DBA profile

Zhone# new gpon-traffic-profile dba-enabled = true dba-fixed-us-ubr-bw = 1024 dba-max-us-bw = 102400 1

2. Check unregistered ONTs

Zhone# gpononu show
Processing list of 256
This command may take several minutes to complete.
Do you want to continue?  (yes or no) [no] yes
Free ONUs for slot 1 olt 1:
    1    2    3    4    5    6    7    8    9   10   11   12
   13   14   15   16   17   18   19   20   21   22   23   24
   25   26   27   28   29   30   31   32   33   34   35   36
   37   38   39   40   41   42   43   44   45   46   47   48
   49   50   51   52   53   54   55   56   57   58   59   60
   61   62   63   64
Discovered serial numbers for slot 1 olt 1:
sernoID   Vendor  Serial Number     sernoID   Vendor  Serial Number
    1      ZNTS    032FC351             2      ZNTS    08604710
    3      ZNTS    03361173

3. Register ONT on GPON

Zhone# onu set SLOT/OLT-ID/ONT-ID SERNO-ID meprof INTERNAL-ME
ex. Zhone# onu set 1/2/14 2 meprof zhone-2301

4. Disable ONT auto-configuration

Zhone# gpononu auto-cfg disable SLOT/OLT-ID/ONT-ID
ex. Zhone# gpononu auto-cfg disable 1/2/14

5. Configure ONT bridge services

Zhone# bridge add SHELF/SLOT/OLT-ID/ONT-ID/gpononu gem GEM gtp GTP-ID downlink vlan VID tagged cos COS rg
ex. Zhone# bridge add 1/1/2/14/gpononu gem 514 gtp 1 downlink vlan 100 tagged cos 0 eth 1
