[DASAN] Modular OLT Integration with HALNy SFU 1 LAN

Created On
Last Updated On
byAdrian Puk
You are here:
< All Topics

HALNy Integration

Supported SFU service scenarios

1. ONT configuration (Access mode, only INTERNET)

ONT was connect to the GPON port 2 with ONU_ID 15

1. Create DBA Profiles

modular6U[A](config)#dba-profile DBA create
  mode sr
  sla fixed 1024
  sla maximum 1031616
  apply

modular6U[A](config)#dba-profile DBA_10G create
  mode sr
  sla fixed 1024
  sla maximum 9870208
  apply

2. Create access VLAN configuration

modular6U[A](config)#extended-vlan-tagging-operation INTERNET create
  downstream-mode enable
  untagged-frame 1
   treat inner vid 100 cos 0 tpid 0x8100
  apply

3. Create MGMT VLAN configuration

modular6U[A](config)#extended-vlan-tagging-operation MGMT create
  downstream-mode enable
  untagged-frame 1
   treat inner vid 400 cos 0 tpid 0x8100
  apply

4. Create traffic-profile

Attention: For ONT’s which have port 10G please use DBA_10G

Max-frame for such port should be set to 10240.

 modular6U[A](config)#traffic-profile SFU_INT_1_LAN create
  tcont 1
   gemport 1/1
   dba-profile DBA
  tcont 2
   gemport 2/1
   dba-profile DBA
  mapper 1
   gemport count 1
  mapper 2
   gemport count 1
  bridge 1
   ani mapper 1
   uni eth 1
    extended-vlan-tagging-operation INTERNET
    max-frame 2036
  bridge 2
   ani mapper 2
   link ip-host-config 1
  ip-host-config 1
   ip address dhcp
   extended-vlan-tagging-operation MGMT
  apply

5. Create onu-profile

modular6U[A](config)#onu-profile SFU_INT_1_LAN create
  traffic-profile SFU_INT_1_LAN
  apply

6. Assign onu-profile to ONT

modular6U[A](config-if[GPON1/2])#onu-profile 15 SFU_INT_1_LAN

7. Verify ONT ip-host 1 IP address

modular6U[A](config-if[GPON1/2])#show onu ip-host 15
---------------------------------------------------------------
 OLT : 2, ONU : 15, Host : 1(0x0000)
---------------------------------------------------------------
 IP Option             : DHCP
 MAC Address           : e0:5a:9f:60:46:78
 Current IP            : 172.17.61.195
 Current Mask          : 255.255.254.0
 Current Gateway       : 172.17.60.1
 Current Primary DNS   : 172.16.16.240
 Current Secondary DNS : 185.228.168.10
 Domain name           :
 Host name             :

2. ONT configuration (Access mode, only IPTV)

ONT was connect to the GPON port 2 with ONU_ID 16

1. Create DBA Profiles

modular6U[A](config)#dba-profile DBA create
  mode sr
  sla fixed 1024
  sla maximum 1031616
  apply

modular6U[A](config)#dba-profile DBA_10G create
  mode sr
  sla fixed 1024
  sla maximum 9870208
  apply

2. Create multicast VLAN configuration

modular6U[A](config)#extended-vlan-tagging-operation IPTV create
  downstream-mode enable
  untagged-frame 1
   treat inner vid 200 cos 0 tpid 0x8100
  apply

3. Create multicast-profile

modular6U[A](config)#multicast-profile MULTI create
  igmp robustness-variable 7
  igmp access-list vid 200 dst-ip start 224.0.0.1 end 239.255.255.255 bw 4294952 gem 4094
  apply

4. Create MGMT VLAN configuration

modular6U[A](config)#extended-vlan-tagging-operation MGMT create
  downstream-mode enable
  untagged-frame 1
   treat inner vid 400 cos 0 tpid 0x8100
  apply

5. Create traffic-profile

Attention: For ONT’s which have port 10G please use DBA_10G

Max-frame for such port should be set to 9216.

 modular6U[A](config)#traffic-profile SFU_IPTV_1_LAN create
  tcont 1
   gemport 1/1
   dba-profile DBA
  tcont 2
   gemport 2/1
   dba-profile DBA
  mapper 1
   gemport count 1
  mapper 2
   gemport count 1
  bridge 1
   ani mapper 1
   uni eth 1
    multicast-profile MULTI
    extended-vlan-tagging-operation IPTV
    max-frame 2036
  bridge 2
   ani mapper 2
   link ip-host-config 1
  ip-host-config 1
   ip address dhcp
   extended-vlan-tagging-operation MGMT
  apply

6. Create onu-profile

modular6U[A](config)#onu-profile SFU_IPTV_1_LAN create
  traffic-profile SFU_IPTV_1_LAN
  apply

7. Assign onu-profile to ONT

modular6U[A](config-if[GPON1/2])#onu-profile 16 SFU_IPTV_1_LAN

8. Verify ONT ip-host 1 IP address

modular6U[A](config-if[GPON1/2])#show onu ip-host 16
---------------------------------------------------------------
 OLT : 2, ONU : 16, Host : 1(0x0000)
---------------------------------------------------------------
 IP Option             : DHCP
 MAC Address           : e0:5a:9f:60:46:78
 Current IP            : 172.17.61.195
 Current Mask          : 255.255.254.0
 Current Gateway       : 172.17.60.1
 Current Primary DNS   : 172.16.16.240
 Current Secondary DNS : 185.228.168.10
 Domain name           :
 Host name             :

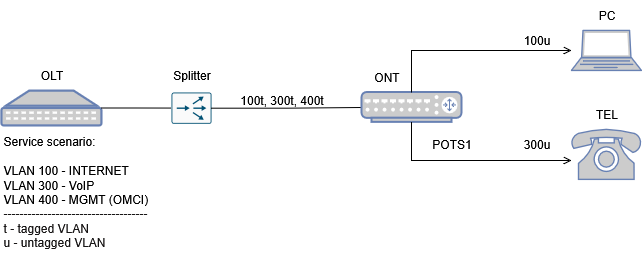

3. ONT configuration (Access mode, INTERNET+ VoIP)

ONT was connect to the GPON port 2 with ONU_ID 23

VoIP number is 9001

1. Create DBA Profiles

modular6U[A](config)#dba-profile DBA create
  mode sr
  sla fixed 1024
  sla maximum 1031616
  apply

modular6U[A](config)#dba-profile DBA_10G create
  mode sr
  sla fixed 1024
  sla maximum 9870208
  apply

2. Create MGMT VLAN configuration

modular6U[A](config)#extended-vlan-tagging-operation MGMT create
  downstream-mode enable
  untagged-frame 1
   treat inner vid 400 cos 0 tpid 0x8100
  apply

3. Create Internet Access VLAN configuration

modular6U[A](config)#extended-vlan-tagging-operation INT create
  downstream-mode enable
  untagged-frame 1
   treat inner vid 100 cos 0 tpid 0x8100
  apply

4. Create VoIP VLAN configuration

modular6U[A](config)#extended-vlan-tagging-operation VoIP create
  downstream-mode enable
  untagged-frame 1
   treat inner vid 300 cos 0 tpid 0x8100
  apply

5. Create voip-profile

 voip-profile VOIP create
  codec-nego 1 codec pcmu packet-period 10 silence-suppression 0
  codec-nego 2 codec pcma packet-period 10 silence-suppression 0
  codec-nego 3 codec g729 packet-period 10 silence-suppression 0
  codec-nego 4 codec g723 packet-period 10 silence-suppression 0
  protocol sip
   proxy-server 172.16.1.2
   outbound-proxy-server 172.16.1.2
   register-server 172.16.1.2
   host-part-server 172.16.1.2
   reg-exp-time 60
   caller-id call-number
   dial-plan table 1 x.T
  apply

6. Create ONU traffic-profile

Attention: For ONT’s which have port 10G please use DBA_10G

Max-frame for such port should be set to 9216.

modular6U[A](config)#traffic-profile SFU_INT_VOIP_1_LAN create
  tcont 1
   gemport 1/1
   dba-profile DBA
  tcont 2
   gemport 2/1
   dba-profile DBA
  tcont 3
   gemport 3/1
   dba-profile DBA
  mapper 1
   gemport count 1
  mapper 2
   gemport count 1
  mapper 3
   gemport count 1
  bridge 1
   ani mapper 1
   uni eth 1
    extended-vlan-tagging-operation INT
    max-frame 2036
  bridge 2
   ani mapper 2
   link ip-host-config 1
  bridge 3
   ani mapper 3
   link ip-host-config 2
  ip-host-config 1
   ip address dhcp
   extended-vlan-tagging-operation MGMT
  ip-host-config 2
   ip address dhcp
   link voip-service 1
   extended-vlan-tagging-operation VoIP
  voip-service 1
   manage-method omci
   voip-profile VOIP
   uni pots 1
  apply

7. Create onu-profile

modular6U[A](config)#onu-profile SFU_INT_VOIP_1_LAN create
  traffic-profile SFU_INT_VOIP_1_LAN
  apply

8. Assign onu-profile to ONT

modular6U[A](config-if[GPON1/2])#onu-profile 23 SFU_INT_VOIP_1_LAN

9. Set VoIP account

modular6U[A](config-if[GPON1/2])#onu voip-sip 23 auth pots 1 9001 123456
modular6U[A](config-if[GPON1/2])#onu voip-sip 23 phone-number pots 1 9001 display 9001

10. Verify ONT ip-host 1 IP address

modular6U[A](config-if[GPON1/2])#show onu ip-host 23
---------------------------------------------------------------
 OLT : GPON1/2, ONU : 23, Host : 1(0x0000)
---------------------------------------------------------------
 IP Option             : DHCP
 MAC Address           : e0:5a:9f:6f:a6:70
 Current IP            : 172.17.60.133
 Current Mask          : 255.255.254.0
 Current Gateway       : 172.17.60.1
 Current Primary DNS   : 172.17.60.1
 Current Secondary DNS : 0.0.0.0
 Domain name           :
 Host name             :

3. ONT configuration (TRANSPARENT mode)

ONT was connect to the GPON port 2 with ONU_ID 17

1. Create DBA Profiles

modular6U[A](config)#dba-profile DBA create
  mode sr
  sla fixed 1024
  sla maximum 1031616
  apply

modular6U[A](config)#dba-profile DBA_10G create
  mode sr
  sla fixed 1024
  sla maximum 9870208
  apply

2. Create VLANs configuration

modular6U[A](config)#extended-vlan-tagging-operation TRANS create
  downstream-mode enable
  single-tagged-frame 1
   filter inner vid 100 cos any tpid any
   treat remove single
   treat inner vid 100 cos copy-inner tpid copy-inner
  single-tagged-frame 2
   filter inner vid 200 cos any tpid any
   treat remove single
   treat inner vid 200 cos copy-inner tpid copy-inner
  single-tagged-frame 3
   filter inner vid 300 cos any tpid any
   treat remove single
   treat inner vid 300 cos copy-inner tpid copy-inner
  apply

HALNy ONTs support transparent forwarding of up to 10 VLANs.

3. Create MGMT VLAN configuration

modular6U[A](config)#extended-vlan-tagging-operation MGMT create
  downstream-mode enable
  untagged-frame 1
   treat inner vid 400 cos 0 tpid 0x8100
  apply

4. Create multicast-profile

modular6U[A](config)#multicast-profile MULTI create
  igmp robustness-variable 7
  igmp access-list vid 200 dst-ip start 224.0.0.1 end 239.255.255.255 bw 4294952 gem 4094
  apply

5. Create traffic-profile

Attention: For ONT’s which have port 10G please use DBA_10G

Max-frame for such port should be set to 9216.

modular6U[A](config)#traffic-profile SFU_TRANS_1_LAN create
  tcont 1
   gemport 1/1
   dba-profile DBA
  tcont 2
   gemport 2/1
   dba-profile DBA
  mapper 1
   gemport count 1
  mapper 2
   gemport count 1
  bridge 1
   ani mapper 1
   uni eth 1
    multicast-profile MULTI
    extended-vlan-tagging-operation TRANS
    max-frame 2036
  bridge 2
   ani mapper 2
   link ip-host-config 1
  ip-host-config 1
   ip address dhcp
   extended-vlan-tagging-operation MGMT
  apply

6. Create onu-profile

 modular6U[A](config)#onu-profile SFU_TRANS_1_LAN create
  traffic-profile SFU_TRANS_1_LAN
  apply

7. Assign onu-profile to ONT

modular6U[A](config-if[GPON1/2])#onu-profile 17 SFU_TRANS_1_LAN

8. Verify ONT ip-host 1 IP address

modular6U[A](config-if[GPON1/2])#show onu ip-host 17
---------------------------------------------------------------
 OLT : 2, ONU : 17, Host : 1(0x0000)
---------------------------------------------------------------
 IP Option             : DHCP
 MAC Address           : e0:5a:9f:60:46:78
 Current IP            : 172.17.61.195
 Current Mask          : 255.255.254.0
 Current Gateway       : 172.17.60.1
 Current Primary DNS   : 172.16.16.240
 Current Secondary DNS : 185.228.168.10
 Domain name           :
 Host name             :

4. ONT configuration (Hybrid mode)

ONT was connect to the GPON port 2 with ONU_ID 18

1. Create DBA Profiles

modular6U[A](config)#dba-profile DBA create
  mode sr
  sla fixed 1024
  sla maximum 1031616
  apply

modular6U[A](config)#dba-profile DBA_10G create
  mode sr
  sla fixed 1024
  sla maximum 9870208
  apply

2. Create VLANs configuration

modular6U[A](config)#extended-vlan-tagging-operation Hybrid create
  downstream-mode enable
  single-tagged-frame 1
   filter inner vid 200 cos any tpid any
   treat remove single
   treat inner vid 200 cos copy-inner tpid copy-inner
  untagged-frame 1
   treat inner vid 100 cos 0 tpid 0x8100
  apply

3. Create MGMT VLAN configuration

modular6U[A](config)#extended-vlan-tagging-operation MGMT create
  downstream-mode enable
  untagged-frame 1
   treat inner vid 400 cos 0 tpid 0x8100
  apply

4. Create multicast-profile

modular6U[A](config)#multicast-profile MULTI create
  igmp robustness-variable 7
  igmp access-list vid 200 dst-ip start 224.0.0.1 end 239.255.255.255 bw 4294952 gem 4094
  apply

5. Create traffic-profile

Attention: For ONT’s which have port 10G please use DBA_10G

Max-frame for such port should be set to 9216.

modular6U[A](config)#traffic-profile SFU_Hybrid_1_LAN create
  tcont 1
   gemport 1/1
   dba-profile DBA
  tcont 2
   gemport 2/1
   dba-profile DBA
  mapper 1
   gemport count 1
  mapper 2
   gemport count 1
  bridge 1
   ani mapper 1
   uni eth 1
    multicast-profile MULTI
    extended-vlan-tagging-operation Hybrid
    max-frame 2036
  bridge 2
   ani mapper 2
   link ip-host-config 1
  ip-host-config 1
   ip address dhcp
   extended-vlan-tagging-operation MGMT
  apply

6. Create onu-profile

 modular6U[A](config)#onu-profile SFU_Hybrid_1_LAN create
  traffic-profile SFU_Hybrid_1_LAN
  apply

7. Assign onu-profile to ONT

modular6U[A](config-if[GPON1/2])#onu-profile 18 SFU_Hybrid_1_LAN

8. Verify ONT ip-host 1 IP address

modular6U[A](config-if[GPON1/2])#show onu ip-host 18
---------------------------------------------------------------
 OLT : 2, ONU : 18, Host : 1(0x0000)
---------------------------------------------------------------
 IP Option             : DHCP
 MAC Address           : e0:5a:9f:60:46:78
 Current IP            : 172.17.61.195
 Current Mask          : 255.255.254.0
 Current Gateway       : 172.17.60.1
 Current Primary DNS   : 172.16.16.240
 Current Secondary DNS : 185.228.168.10
 Domain name           :
 Host name             :

5. ONT configuration (VLAN translation – rBSA)

ONT was connect to the GPON port 2 with ONU_ID 19

1. Create DBA Profiles

modular6U[A](config)#dba-profile DBA create
  mode sr
  sla fixed 1024
  sla maximum 1031616
  apply

modular6U[A](config)#dba-profile DBA_10G create
  mode sr
  sla fixed 1024
  sla maximum 9870208
  apply

2. Create VLANs configuration

modular6U[A](config)#extended-vlan-tagging-operation TRANS create
  downstream-mode enable
  single-tagged-frame 1
   filter inner vid 35 cos any tpid any
   treat remove single
   treat inner vid 100 cos copy-inner tpid copy-inner
  single-tagged-frame 2
   filter inner vid 838 cos any tpid any
   treat remove single
   treat inner vid 200 cos copy-inner tpid copy-inner
  single-tagged-frame 3
   filter inner vid 839 cos any tpid any
   treat remove single
   treat inner vid 300 cos copy-inner tpid copy-inner
  apply

HALNy ONTs support transparent forwarding of up to 10 VLANs.

3. Create MGMT VLAN configuration

modular6U[A](config)#extended-vlan-tagging-operation MGMT create
  downstream-mode enable
  untagged-frame 1
   treat inner vid 400 cos 0 tpid 0x8100
  apply

4. Create multicast-profile

modular6U[A](config)#multicast-profile MULTI create
  igmp robustness-variable 7
  igmp access-list vid 200 dst-ip start 224.0.0.1 end 239.255.255.255 bw 4294952 gem 4094
  apply

5. Create traffic-profile

Attention: For ONT’s which have port 10G please use DBA_10G

Max-frame for such port should be set to 9216.

modular6U[A](config)#traffic-profile SFU_RBSA_1_LAN create
  tcont 1
   gemport 1/1-1/8
   dba-profile DBA
  tcont 2
   gemport 2/1
   dba-profile DBA
  mapper 1
   gemport count 8
  mapper 2
   gemport count 1
  bridge 1
   ani mapper 1
   uni eth 1
    multicast-profile MULTI
    extended-vlan-tagging-operation RBSA
    max-frame 2036
  bridge 2
   ani mapper 2
   link ip-host-config 1
  ip-host-config 1
   ip address dhcp
   extended-vlan-tagging-operation MGMT
  apply

6. Create onu-profile

 modular6U[A](config)#onu-profile SFU_RBSA_1_LAN create
  traffic-profile SFU_RBSA_1_LAN
  apply

7. Assign onu-profile to ONT

modular6U[A](config-if[GPON1/2])#onu-profile 19 SFU_RBSA_1_LAN

8. Verify ONT ip-host 1 IP address

modular6U[A](config-if[GPON1/2])#show onu ip-host 19
---------------------------------------------------------------
 OLT : 2, ONU : 19, Host : 1(0x0000)
---------------------------------------------------------------
 IP Option             : DHCP
 MAC Address           : e0:5a:9f:60:46:78
 Current IP            : 172.17.61.195
 Current Mask          : 255.255.254.0
 Current Gateway       : 172.17.60.1
 Current Primary DNS   : 172.16.16.240
 Current Secondary DNS : 185.228.168.10
 Domain name           :
 Host name             :

6. ONT configuration (802.1q in 802.1q Begin/End of Tunnel)

ONT was connect to the GPON port 2 with ONU_ID 20

1. Create DBA Profiles

modular6U[A](config)#dba-profile DBA create
  mode sr
  sla fixed 1024
  sla maximum 1031616
  apply

modular6U[A](config)#dba-profile DBA_10G create
  mode sr
  sla fixed 1024
  sla maximum 9870208
  apply

2. Create VLANs configuration

modular6U[A](config)#extended-vlan-tagging-operation QinQ create
  downstream-mode enable
  single-tagged-frame 1
   filter inner vid any cos any tpid any
   treat inner vid 999 cos copy-inner tpid copy-inner
  apply

3. Create MGMT VLAN configuration

modular6U[A](config)#extended-vlan-tagging-operation MGMT create
  downstream-mode enable
  untagged-frame 1
   treat inner vid 400 cos 0 tpid 0x8100
  apply

4. Create traffic-profile

Attention: For ONT’s which have port 10G please use DBA_10G

Max-frame for such port should be set to 9216.

modular6U[A](config)#traffic-profile SFU_QinQ_1_LAN create
  tcont 1
   gemport 1/1
   dba-profile DBA
  tcont 2
   gemport 2/1
   dba-profile DBA
  mapper 1
   gemport count 1
  mapper 2
   gemport count 1
  bridge 1
   ani mapper 1
   uni eth 1
    extended-vlan-tagging-operation QinQ
    max-frame 2036
  bridge 2
   ani mapper 2
   link ip-host-config 1
  ip-host-config 1
   ip address dhcp
   extended-vlan-tagging-operation MGMT
  apply

5. Create onu-profile

modular6U[A](config)#onu-profile SFU_QinQ_1_LAN create
  traffic-profile SFU_QinQ_1_LAN
  apply

6. Assign onu-profile to ONT

modular6U[A](config-if[GPON1/2])#onu-profile 20 SFU_QinQ_1_LAN

7. Verify ONT ip-host 1 IP address

modular6U[A](config-if[GPON1/2])#show onu ip-host 20
---------------------------------------------------------------
 OLT : 2, ONU : 20, Host : 1(0x0000)
---------------------------------------------------------------
 IP Option             : DHCP
 MAC Address           : e0:5a:9f:60:46:78
 Current IP            : 172.17.61.195
 Current Mask          : 255.255.254.0
 Current Gateway       : 172.17.60.1
 Current Primary DNS   : 172.16.16.240
 Current Secondary DNS : 185.228.168.10
 Domain name           :
 Host name             :

7. Transparent QinQ

ONT was connect to the GPON port 2 with ONU_ID 21

1. Create DBA Profiles

modular6U[A](config)#dba-profile DBA create
  mode sr
  sla fixed 1024
  sla maximum 1031616
  apply

modular6U[A](config)#dba-profile DBA_10G create
  mode sr
  sla fixed 1024
  sla maximum 9870208
  apply

2. Create VLANs configuration

modular6U[A](config)#extended-vlan-tagging-operation TRANS-QinQ create
  downstream-mode enable
  double-tagged-frame 1
   filter outer vid 999 cos any tpid any
   filter inner vid any cos any tpid any
   treat remove double
   treat outer vid 999 cos copy-inner tpid copy-inner
   treat inner vid copy-inner cos copy-inner tpid copy-inner
  apply

3. Create MGMT VLAN configuration

modular6U[A](config)#extended-vlan-tagging-operation MGMT create
  downstream-mode enable
  untagged-frame 1
   treat inner vid 400 cos 0 tpid 0x8100
  apply

4. Create traffic-profile

Attention: For ONT’s which have port 10G please use DBA_10G

Max-frame for such port should be set to 9216.

modular6U[A](config)#traffic-profile SFU_TRANS_QinQ_1_LAN create
  tcont 1
   gemport 1/1
   dba-profile DBA
  tcont 2
   gemport 2/1
   dba-profile DBA
  mapper 1
   gemport count 1
  mapper 2
   gemport count 1
  bridge 1
   ani mapper 1
   uni eth 1
    extended-vlan-tagging-operation TRANS-QinQ
    max-frame 2036
  bridge 2
   ani mapper 2
   link ip-host-config 1
  ip-host-config 1
   ip address dhcp
   extended-vlan-tagging-operation MGMT
  apply

5. Create onu-profile

modular6U[A](config)#onu-profile SFU_TRANS_QinQ_1_LAN create
  traffic-profile SFU_TRANS_QinQ_1_LAN
  apply

6. Assign onu-profile to ONT

modular6U[A](config-if[GPON1/2])#onu-profile 21 SFU_TRANS_QinQ_1_LAN

7. Verify ONT ip-host 1 IP address

modular6U[A](config-if[GPON1/2])#show onu ip-host 21
---------------------------------------------------------------
 OLT : 2, ONU : 21, Host : 1(0x0000)
---------------------------------------------------------------
 IP Option             : DHCP
 MAC Address           : e0:5a:9f:60:46:78
 Current IP            : 172.17.61.195
 Current Mask          : 255.255.254.0
 Current Gateway       : 172.17.60.1
 Current Primary DNS   : 172.16.16.240
 Current Secondary DNS : 185.228.168.10
 Domain name           :
 Host name             :

8. ONT configuration (OSE / MdO)

ONT was connect to the GPON port 2 with ONU_ID 22

1. Create DBA Profiles

modular6U[A](config)#dba-profile DBA create
  mode sr
  sla fixed 1024
  sla maximum 1031616
  apply

modular6U[A](config)#dba-profile DBA_10G create
  mode sr
  sla fixed 1024
  sla maximum 9870208
  apply

2. Create VLANs configuration

 modular6U[A](config)#extended-vlan-tagging-operation OSE create
  downstream-mode enable
  single-tagged-frame 1
   filter inner vid 10 cos any tpid any
   treat remove single
   treat outer vid 999 cos 0 tpid 0x8100
   treat inner vid 100 cos copy-inner tpid copy-inner
  single-tagged-frame 2
   filter inner vid 11 cos any tpid any
   treat remove single
   treat outer vid 999 cos 0 tpid 0x8100
   treat inner vid 200 cos copy-inner tpid copy-inner
  single-tagged-frame 3
   filter inner vid 51 cos any tpid any
   treat remove single
   treat outer vid 999 cos 0 tpid 0x8100
   treat inner vid 300 cos copy-inner tpid copy-inner
  apply

3. Create MGMT VLAN configuration

modular6U[A](config)#extended-vlan-tagging-operation MGMT create
  downstream-mode enable
  untagged-frame 1
   treat inner vid 400 cos 0 tpid 0x8100
  apply

4. Create traffic-profile

Attention: For ONT’s which have port 10G please use DBA_10G

Max-frame for such port should be set to 9216.

modular6U[A](config)#traffic-profile SFU_OSE_1_LAN create
  tcont 1
   gemport 1/1
   dba-profile DBA
  tcont 2
   gemport 2/1
   dba-profile DBA
  mapper 1
   gemport count 1
  mapper 2
   gemport count 1
  bridge 1
   ani mapper 1
   uni eth 1
    extended-vlan-tagging-operation OSE
    max-frame 2036
  bridge 2
   ani mapper 2
   link ip-host-config 1
  ip-host-config 1
   ip address dhcp
   extended-vlan-tagging-operation MGMT
  apply

5. Create onu-profile

modular6U[A](config)#onu-profile SFU_OSE_1_LAN create
  traffic-profile SFU_OSE_1_LANE
  apply

6. Assign onu-profile to ONT

modular6U[A](config-if[GPON1/2])#onu-profile 22 SFU_OSE_1_LAN

7. Verify ONT ip-host 1 IP address

modular6U[A](config-if[GPON1/2])#show onu ip-host 22
---------------------------------------------------------------
 OLT : 2, ONU : 22, Host : 1(0x0000)
---------------------------------------------------------------
 IP Option             : DHCP
 MAC Address           : e0:5a:9f:60:46:78
 Current IP            : 172.17.61.195
 Current Mask          : 255.255.254.0
 Current Gateway       : 172.17.60.1
 Current Primary DNS   : 172.16.16.240
 Current Secondary DNS : 185.228.168.10
 Domain name           :
 Host name             :

ONT Managment

Note: Most provisioning and upgrade options below require ONT to have a valid IP Host setup. For detailed information regarding IP Host click here.

MethodConfigurationUpgrade
Rest API V2[Example]–
XML Provisioning
[OLT CLI, DHCP 66/67, WEB]		[Example]–
OTT–[Example]
OLT CLI–[Example]
TR-069
[OLT CLI, DHCP 43]		[Example][Example]
WEB[Example][Example]
Found something we can improve? Let us know at support@halny.com
Tags:
Table of Contents
Comments are closed.
