HALNy HL-2BV Configuration

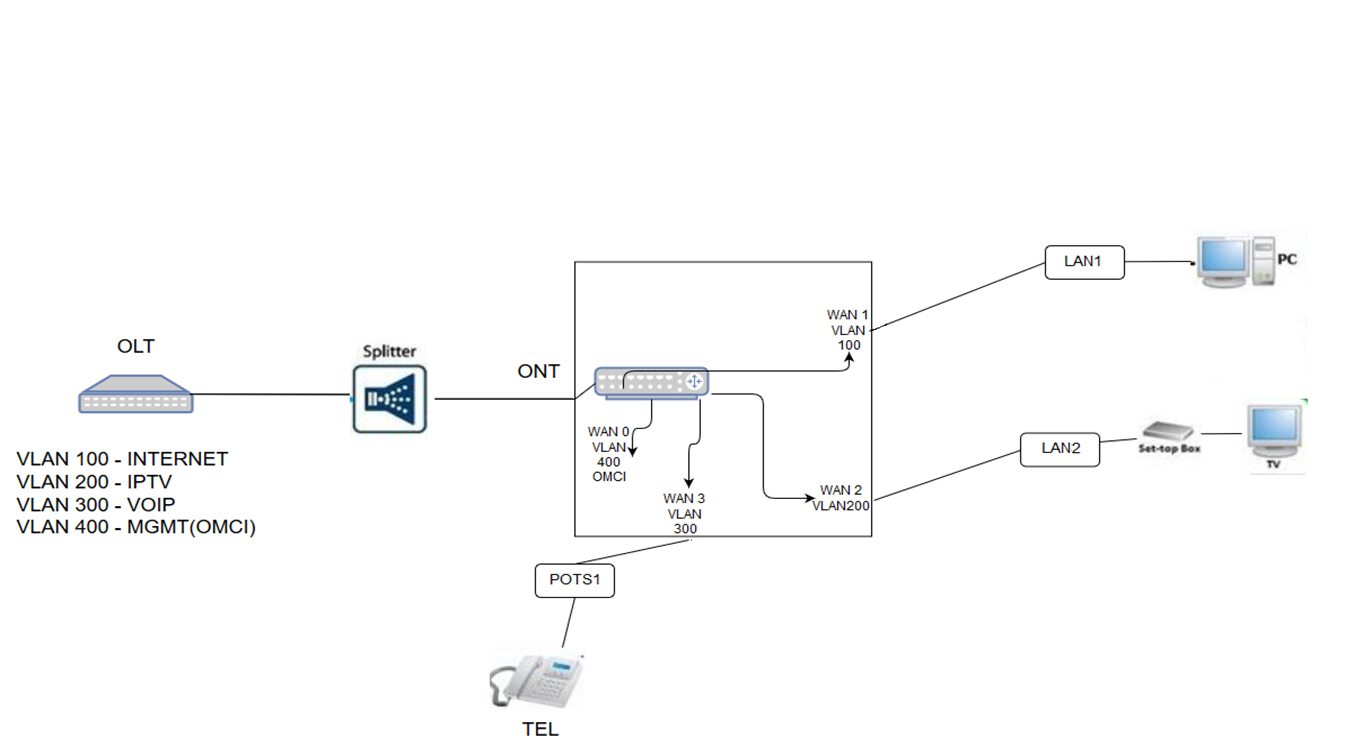

Service scenario

HL-2GRV can work in two modes – HGU (Home Gateway Unit) and SFU (Single Family Unit).
HGU mode configuration is presented here.
Managing ONT mode is done by setting up/or not bridge port and VEIP for ONT. In SFU mode we need to set bridge port and VEIP(only if we want to use ip-host).
SFU mode allows to prepare different configurations – such as QiQ tunnel or VLAN translation on the ONT. In this tutorial we will focus on SFU mode configuration.

Document Date and version
2022.04.13
Tested on OLT DASAN V5808Version: 1.04-0050
Tested with ONT HALNy HL-2GRVSupported on Version: V3.0.18 or above
Revision1
Let us know how to improve below document on: support@halny.com

ONT configuration

1. ONT configuration (Access mode, only INTERNET)

ONT was connect to the GPON port 2 with ONU_ID 41

1. Create DBA Profile

V5808(gpon)#dba-profile DBA create
  mode sr
  sla fixed 1024
  sla maximum 1031616
  apply

2. MGMT VLAN configuration

V5808(gpon)#extended-vlan-tagging-operation MGMT create
  downstream-mode enable
  untagged-frame 1
  treat inner vid 400 cos 0 tpid 0x8100
  apply

3. Internet Access VLAN configuration

V5808(gpon)#extended-vlan-tagging-operation INT create
  downstream-mode enable
  untagged-frame 1
  treat inner vid 100 cos 0 tpid 0x8100
  apply

4. ONU traffic-profile configuration

V5808(gpon)#traffic-profile HL-2GRV create
  tcont 1
   gemport 1/1
   dba-profile DBA
  tcont 2
   gemport 2/1
   dba-profile DBA
  mapper 1
   gemport count 1
  mapper 2
   gemport count 1
  bridge 1
   ani mapper 1
   uni eth 1
    extended-vlan-tagging-operation INT
    max-frame 2036
   uni eth 2
    extended-vlan-tagging-operation INT
    max-frame 2036
  bridge 2
   ani mapper 2
   link ip-host-config 1
  ip-host-config 1
   ip address dhcp
   extended-vlan-tagging-operation MGMT
  apply

5. ONU onu-profile configuration

V5808(gpon)#onu-profile HL-2GRV create
  traffic-profile HL-2GRV
  apply

6. Assig onu-profile to ONT

V5808(config-gpon-olt-[2])#onu-profile 41 HL-2GRV

7. Verify ONT ip-host 1 IP address

V5808(config-gpon-olt-[2])#show onu ip-host 41
---------------------------------------------------------------
OLT : 2, ONU : 41, Host : 1(0x0000)
---------------------------------------------------------------
 IP Option             : DHCP
 MAC Address           : 54:db:a2:f9:fb:60
 Current IP            : 172.17.60.95
 Current Mask          : 255.255.254.0
 Current Gateway       : 172.17.60.1
 Current Primary DNS   : 172.17.60.1
 Current Secondary DNS : 0.0.0.0
 Domain name           :
 Host name             :

2. ONT configuration (Access mode, Internet + IPTV)

ONT was connect to the GPON port 2 with ONU_ID 42

1. Create DBA Profile

V5808(gpon)#dba-profile DBA create
  mode sr
  sla fixed 1024
  sla maximum 1031616
  apply

2. Create multicast-profile

V5808(gpon)#multicast-profile MULTI create
  igmp robustness-variable 7
  igmp access-list vid 200 dst-ip start 224.0.0.1 end 239.255.255.255 bw 4294952 gem 4094
  apply

3. Create MGMT VLAN configuration

V5808(gpon)#extended-vlan-tagging-operation MGMT create
  downstream-mode enable
  untagged-frame 1
  treat inner vid 400 cos 0 tpid 0x8100
  apply

4. Create Internet Access VLAN configuration

V5808(gpon)#extended-vlan-tagging-operation INT create
  downstream-mode enable
  untagged-frame 1
  treat inner vid 100 cos 0 tpid 0x8100
  apply

5. Create Multicast Access VLAN configuration

V5808(gpon)# extended-vlan-tagging-operation IPTV create
  downstream-mode enable
  untagged-frame 1
  treat inner vid 200 cos 0 tpid 0x8100
  apply

6. Create ONU traffic-profile

V5808(gpon)# traffic-profile HL-2GRV-N_TV create
  tcont 1
   gemport 1/1
   dba-profile DBA
  tcont 2
   gemport 2/1
   dba-profile DBA
  tcont 3
   gemport 3/1
   dba-profile DBA
  mapper 1
   gemport count 1
  mapper 2
   gemport count 1
  mapper 3
   gemport count 1
  bridge 1
   ani mapper 1
   uni eth 1
    extended-vlan-tagging-operation INT
    max-frame 2036
  bridge 2
   ani mapper 2
   uni eth 2
    multicast-profile MULTI
    extended-vlan-tagging-operation IPTV
    max-frame 2036
  bridge 3
   ani mapper 3
   link ip-host-config 1
  ip-host-config 1
   ip address dhcp
   extended-vlan-tagging-operation MGMT
  apply

7. Create onu-profile

V5808(gpon)#onu-profile HL-2GRV_SFU_INT_IPTV create
  traffic-profile HL-2GRV_SFU_INT_IPTV
  apply

8. Assign onu-profile to ONT

V5808(config-gpon-olt-[2])#onu-profile 42 HL-2GRV_SFU_INT_IPTV

9. Verify ONT ip-host 1 IP address

V5808(config-gpon-olt-[2])#show onu ip-host 42
---------------------------------------------------------------
OLT : 2, ONU : 42, Host : 1(0x0000)
---------------------------------------------------------------
 IP Option             : DHCP
 MAC Address           : 54:db:a2:f9:fb:60
 Current IP            : 172.17.60.95
 Current Mask          : 255.255.254.0
 Current Gateway       : 172.17.60.1
 Current Primary DNS   : 172.17.60.1
 Current Secondary DNS : 0.0.0.0
 Domain name           :
 Host name             :

3. ONT configuration (Access mode, Internet + IPTV + VoIP)

ONT was connect to the GPON port 2 with ONU_ID 43

1. Create DBA Profile

V5808(gpon)#dba-profile DBA create
  mode sr
  sla fixed 1024
  sla maximum 1031616
  apply

2. MGMT VLAN configuration

V5808(gpon)#extended-vlan-tagging-operation MGMT create
  downstream-mode enable
  untagged-frame 1
  treat inner vid 400 cos 0 tpid 0x8100
  apply

3. Create Internet Access VLAN configuration

V5808(gpon)#extended-vlan-tagging-operation INT create
  downstream-mode enable
  untagged-frame 1
  treat inner vid 100 cos 0 tpid 0x8100
  apply

4. Create Multicast Access VLAN configuration

V5808(gpon)# extended-vlan-tagging-operation IPTV create
  downstream-mode enable
  untagged-frame 1
  treat inner vid 200 cos 0 tpid 0x8100
  apply

5. Create VoIP VLAN configuration

V5808(gpon)# extended-vlan-tagging-operation VoIP create
  downstream-mode enable
  untagged-frame 1
  treat inner vid 300 cos 0 tpid 0x8100
  apply

5. Create multicast-profile

V5808(gpon)#multicast-profile MULTI create
  igmp robustness-variable 7
  igmp access-list vid 200 dst-ip start 224.0.0.1 end 239.255.255.255 bw 4294952 gem 4094
  apply

6. Create voip-profile

 voip-profile VOIP create
  codec-nego 1 codec pcmu packet-period 10 silence-suppression 0
  codec-nego 2 codec pcma packet-period 10 silence-suppression 0
  codec-nego 3 codec g729 packet-period 10 silence-suppression 0
  codec-nego 4 codec g723 packet-period 10 silence-suppression 0
  protocol sip
   proxy-server 172.16.1.2
   outbound-proxy-server 172.16.1.2
   register-server 172.16.1.2
   host-part-server 172.16.1.2
   reg-exp-time 60
   caller-id call-number
   dial-plan table 1 x.
  apply

7. Create traffic-profile

V5808(gpon)# traffic-profile HL-2GRV-N_TV_VOIP create
  tcont 1
   gemport 1/1
   dba-profile DBA
  tcont 2
   gemport 2/1
   dba-profile DBA
  tcont 3
   gemport 3/1
   dba-profile DBA
  tcont 4
   gemport 4/1
   dba-profile DBA
  mapper 1
   gemport count 1
  mapper 2
   gemport count 1
  mapper 3
   gemport count 1
  mapper 4
   gemport count 1
  bridge 1
   ani mapper 1
   uni eth 1
    extended-vlan-tagging-operation INT
    max-frame 2036
  bridge 2
   ani mapper 2
   uni eth 2
    multicast-profile MULTI
    extended-vlan-tagging-operation IPTV
    max-frame 2036
  bridge 3
   ani mapper 3
   link ip-host-config 1
  bridge 4
   ani mapper 4
   link ip-host-config 2
  ip-host-config 1
   ip address dhcp
   extended-vlan-tagging-operation MGMT
  ip-host-config 2
   ip address dhcp
   link voip-service 1
   extended-vlan-tagging-operation VoIP
  voip-service 1
   manage-method omci
   voip-profile VOIP
   uni pots 1
  apply

8. Create onu-profile

V5808(gpon)#onu-profile HL-2GRV_SFU_INT_IPTV_VOIP create
  traffic-profile HL-2GRV_SFU_INT_IPTV_VOIP
  apply

9. Assign onu-profile to ONT

V5808(config-gpon-olt-[2])#onu-profile 43 HL-2GRV_SFU_INT_IPTV_VOIP

10. Verify ONT IP-host 1 IP address

V5808(config-gpon-olt-[2])#show onu ip-host 43
---------------------------------------------------------------
OLT : 2, ONU : 43, Host : 1(0x0000)
---------------------------------------------------------------
 IP Option             : DHCP
 MAC Address           : 54:db:a2:f9:fb:60
 Current IP            : 172.17.60.95
 Current Mask          : 255.255.254.0
 Current Gateway       : 172.17.60.1
 Current Primary DNS   : 172.17.60.1
 Current Secondary DNS : 0.0.0.0
 Domain name           :
 Host name             :

3. ONT configuration (TRANSPARENT mode)

ONT was connect to the GPON port 2 with ONU_ID 44

1. Create DBA Profile

V5808(gpon)#dba-profile DBA create
  mode sr
  sla fixed 1024
  sla maximum 1031616
  apply

2. MGMT VLAN configuration

V5808(gpon)#extended-vlan-tagging-operation MGMT create
  downstream-mode enable
  untagged-frame 1
  treat inner vid 400 cos 0 tpid 0x8100
  apply

3. Create VLANs configuration

V5808(gpon)#extended-vlan-tagging-operation TRANSPARENT create
  downstream-mode enable
  single-tagged-frame 1
  filter inner vid 100 cos any tpid any
  treat remove single
  treat inner vid 100 cos copy-inner tpid copy-inner
  single-tagged-frame 2
  filter inner vid 200 cos any tpid any
  treat remove single
  treat inner vid 200 cos copy-inner tpid copy-inner
  single-tagged-frame 3
  filter inner vid 300 cos any tpid any
  treat remove single
  treat inner vid 300 cos copy-inner tpid copy-inner
  apply

*HL-2GRV supports to send transparently up to 10 vlans

4. ONU traffic-profile configuration

V5808(gpon)#traffic-profile HL-2GRV_SFU_TRANSPARENT create
  tcont 1
   gemport 1/1
   dba-profile DBA
  tcont 2
   gemport 2/1
   dba-profile DBA
  mapper 1
   gemport count 1
  mapper 2
   gemport count 1
  bridge 1
   ani mapper 1
   uni eth 1
    extended-vlan-tagging-operation TRANSPARENT
    max-frame 2036
   uni eth 2
    extended-vlan-tagging-operation TRANSPARENT
    max-frame 2036
  bridge 2
   ani mapper 2
   link ip-host-config 1
  ip-host-config 1
   ip address dhcp
   extended-vlan-tagging-operation MGMT
  apply

5. ONU onu-profile configuration

V5808(gpon)#onu-profile HL-2GRV_SFU_TRANSPARENT create
  traffic-profile HL-2GRV_SFU_TRANSPARENT
  apply

6. Assig onu-profile to ONT

V5808(config-gpon-olt-[2])#onu-profile 44 HL-2GRV_SFU_TRANSPARENT

7. Verify ONT ip-host 1 IP address

V5808(config-gpon-olt-[2])#show onu ip-host 44
---------------------------------------------------------------
OLT : 2, ONU : 44, Host : 1(0x0000)
---------------------------------------------------------------
 IP Option             : DHCP
 MAC Address           : 54:db:a2:f9:fb:60
 Current IP            : 172.17.60.95
 Current Mask          : 255.255.254.0
 Current Gateway       : 172.17.60.1
 Current Primary DNS   : 172.17.60.1
 Current Secondary DNS : 0.0.0.0
 Domain name           :
 Host name             :

4. ONT configuration (Hybrid mode)

ONT was connect to the GPON port 2 with ONU_ID 45

1. Create DBA Profile

V5808(gpon)#dba-profile DBA create
  mode sr
  sla fixed 1024
  sla maximum 1031616
  apply

2. Create hybrid VLAN configurations

V5808(gpon)#extended-vlan-tagging-operation HYBRID1 create
  downstream-mode enable
  single-tagged-frame 1
  filter inner vid 100 cos any tpid any
  treat remove single
  treat inner vid 100 cos copy-inner tpid copy-inner
  untagged-frame 1
  treat inner vid 200 cos 0 tpid 0x8100
  apply

extended-vlan-tagging-operation HYBRID2 create
  downstream-mode enable
  single-tagged-frame 1
  filter inner vid 300 cos any tpid any
  treat remove single
  treat inner vid 300 cos copy-inner tpid copy-inner
  untagged-frame 1
  treat inner vid 100 cos 0 tpid 0x8100
  apply

3. Create multicast-profile

V5808(gpon)#multicast-profile MULTI create
  igmp robustness-variable 7
  igmp access-list vid 200 dst-ip start 224.0.0.1 end 239.255.255.255 bw 4294952 gem 4094
  apply

4. Create MGMT VLAN configuration

V5808(gpon)#extended-vlan-tagging-operation MGMT create
  downstream-mode enable
  untagged-frame 1
  treat inner vid 400 cos 0 tpid 0x8100
  apply

5. Create traffic-profile

V5808(gpon)#traffic-profile HL-2GRV_SFU_HYBRID create
  tcont 1
   gemport 1/1
   dba-profile DBA
  tcont 2
   gemport 2/1
   dba-profile DBA
  tcont 3
   gemport 3/1
   dba-profile DBA
  mapper 1
   gemport count 1
  mapper 2
   gemport count 1
  mapper 3
   gemport count 1
  bridge 1
   ani mapper 1
   uni eth 1
    extended-vlan-tagging-operation HYBRID1
    max-frame 2036
  bridge 2
   ani mapper 2
   uni eth 2
    extended-vlan-tagging-operation HYBRID2
    max-frame 2036
  bridge 3
   ani mapper 3
   link ip-host-config 1
  ip-host-config 1
   ip address dhcp
   extended-vlan-tagging-operation MGMT
  apply

8. Create onu-profile

V5808(gpon)#onu-profile HL-2GRV_SFU_HYBRID create
  traffic-profile HL-2GRV_SFU_HYBRID
  apply

9. Assign onu-profile to ONT

V5808(config-gpon-olt[2])#onu-profile 45 HL-2GRV_SFU_HYBRID

10. Verify ONT ip-host 1 IP address

V5808(config-gpon-olt[2])#show onu ip-host 45
---------------------------------------------------------------
OLT : 2, ONU : 45, Host : 1(0x0000)
---------------------------------------------------------------
 IP Option             : DHCP
 MAC Address           : 54:db:a2:f9:fb:60
 Current IP            : 172.17.60.95
 Current Mask          : 255.255.254.0
 Current Gateway       : 172.17.60.1
 Current Primary DNS   : 172.17.60.1
 Current Secondary DNS : 0.0.0.0
 Domain name           :
 Host name             :

5. ONT configuration (VLAN translation – rBSA)

ONT was connect to the GPON port 2 with ONU_ID 46

1. Create DBA Profile

V5808(gpon)#dba-profile DBA create
  mode sr
  sla fixed 1024
  sla maximum 1031616
  apply

2. MGMT VLAN configuration

V5808(gpon)#extended-vlan-tagging-operation MGMT create
  downstream-mode enable
  untagged-frame 1
  treat inner vid 400 cos 0 tpid 0x8100
  apply

3. Create VLANs configuration

V5808(gpon)#extended-vlan-tagging-operation TRANSLATION create
  downstream-mode enable
  single-tagged-frame 1
  filter inner vid 35 cos any tpid any
  treat remove single
  treat inner vid 100 cos copy-inner tpid copy-inner
  single-tagged-frame 2
  filter inner vid 838 cos any tpid any
  treat remove single
  treat inner vid 200 cos copy-inner tpid copy-inner
  single-tagged-frame 3
  filter inner vid 839 cos any tpid any
  treat remove single
  treat inner vid 300 cos copy-inner tpid copy-inner
  apply

4. ONU traffic-profile configuration

V5808(gpon)#traffic-profile HL-2GRV_SFU_TRANSLATION create
  tcont 1
   gemport 1/1
   dba-profile DBA
  tcont 2
   gemport 2/1
   dba-profile DBA
  mapper 1
   gemport count 1
  mapper 2
   gemport count 1
  bridge 1
   ani mapper 1
   uni eth 1
    extended-vlan-tagging-operation TRANSLATION
    max-frame 2036
   uni eth 2
    extended-vlan-tagging-operation TRANSLATION
    max-frame 2036
  bridge 2
   ani mapper 2
   link ip-host-config 1
  ip-host-config 1
   ip address dhcp
   extended-vlan-tagging-operation MGMT
  apply

5. ONU onu-profile configuration

V5808(gpon)#onu-profile HL-2GRV_SFU_TRANSLATION create
  traffic-profile HL-2GRV_SFU_TRANSLATION
  apply

6. Assig onu-profile to ONT

V5808(config-gpon-olt-[2])#onu-profile 46 HL-2GRV_SFU_TRANSLATION

7. Verify ONT ip-host 1 IP address

V5808(config-gpon-olt-[2])#show onu ip-host 46
---------------------------------------------------------------
OLT : 2, ONU : 46, Host : 1(0x0000)
---------------------------------------------------------------
 IP Option             : DHCP
 MAC Address           : 54:db:a2:f9:fb:60
 Current IP            : 172.17.60.95
 Current Mask          : 255.255.254.0
 Current Gateway       : 172.17.60.1
 Current Primary DNS   : 172.17.60.1
 Current Secondary DNS : 0.0.0.0
 Domain name           :
 Host name             :

ONT HL-2GRV SFU upgrade on DASAN OLTs

HL-2GRV can be upgrade the same way as other HALNy ONTs, You can find upgrade procedure here.

Table of Contents
Hit enter to search or ESC to close

Search Page

The beauty of this theme is that is built with Modules. Every time you can active or dis-active any module that you would not need anymore ! Awesome WordPress Theme with latest technologies.

May We Suggest?
