[ALTICE] OLT1T0 OLT Integration with HALNy SFU 4 LAN
HALNy Integration
Supported SFU service scenarios
1. Service scenario – access mode ONLY INTERNET
Attention: Following configuration example is based on the HL-4GV model, which features 4 LAN ports, 1 POTS port. Adjust the configuration/services as needed to suit your ONT model.
1. Create ONT profile on OLT :
Click on the image to enlarge it.

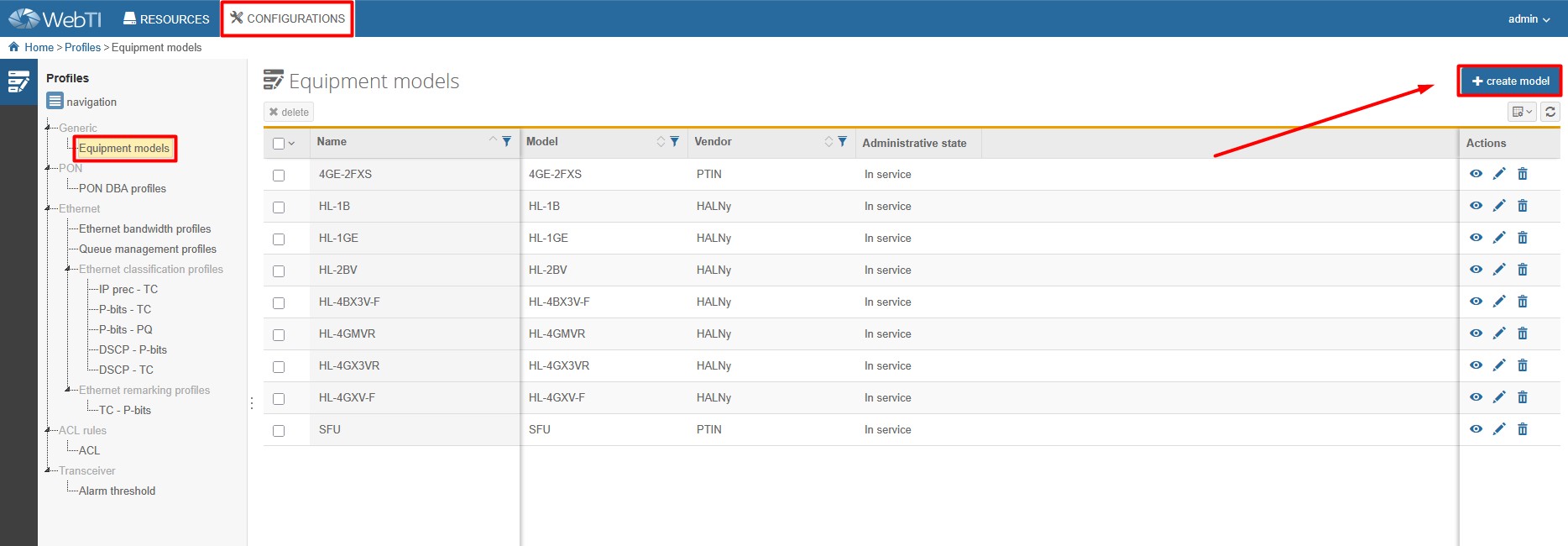

(CONFIGURATIONS > GENERIC > EQUIPMENT MODELS > CREATE MODEL)
- NAME – name of the ONT profile (e.g HL-4GV)
- VENDOR – HALNy,
- MODEL – model of the ONT,
- ADMINISTRATIVE STATE – switch to IN SERVICE,
- ETH – put exact number of ETH ports of the ONT (HL-4GV used in this example has 4 ETH ports),
- PON – 1,
- RF – in case ONT is equipped with RF port (HL-4GV used in this example has no RF port),
- VoIP - put exact number of POTS ports of the ONT (HL-4GV used in this example has 2 POTS ports),
- VEIP – 1 – for MGMT IP host purposes.

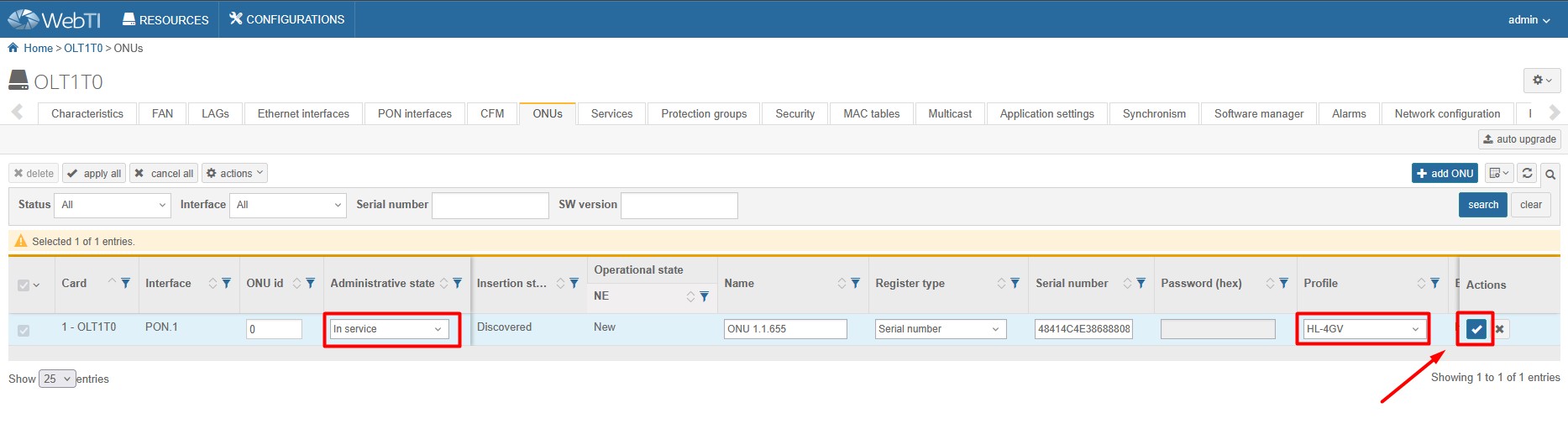

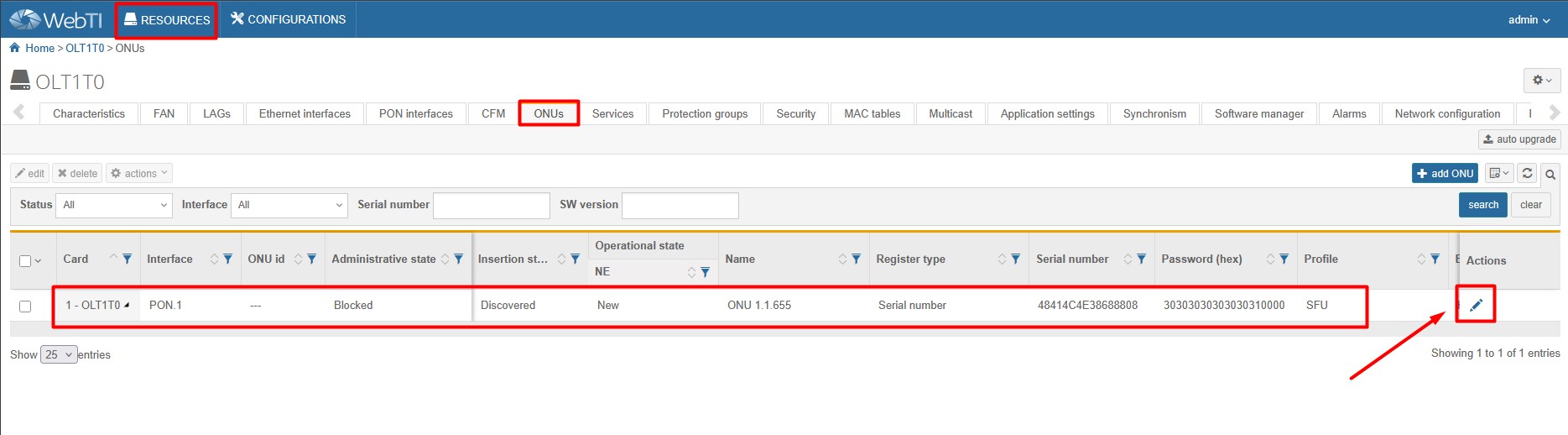

2. Add ONT to GPON port
3. Create DBA profile (CONFIGURATIONS > PON > PON DBA PROFILES)
4. Create Ethernet bandwidth profile (CONFIGURATIONS > ETHERNET > ETHERNET BANDWIDTH PROFILE)
5. Add Network services (VLANs) you need (RESOURCES > SERVICES > NETWORK SERVICES).
INTERNET – VLAN 100
MGMT – IP host – VLAN 400
6. Add Client service to your ONU. (RESOURCES > SERVICES > CLIENT SERVICES)

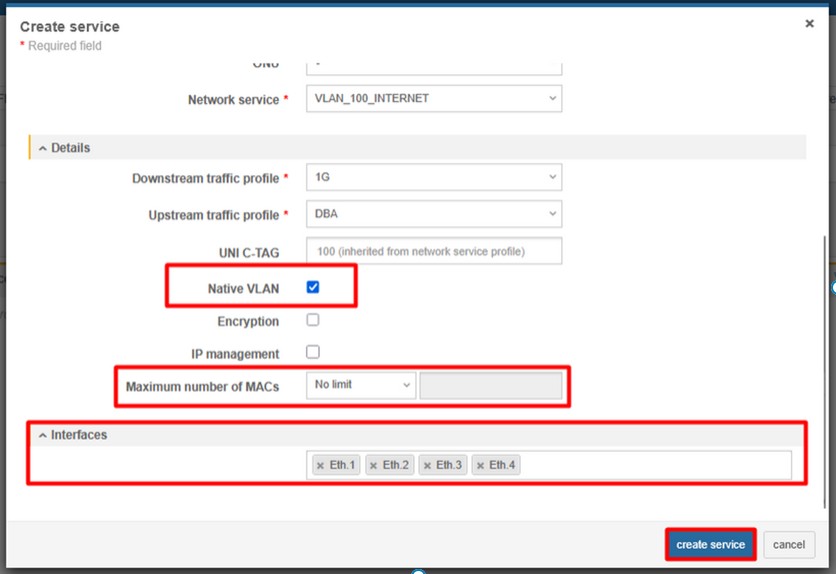

INTERNET (VLAN 100)
MGMT (VLAN 400)
2. Service scenario – Access mode – INTERNET + IPTV
Attention: Following configuration example is based on the HL-4GV model, which features 4 LAN ports, 1 POTS port. Adjust the configuration/services as needed to suit your ONT model.
1. Create ONT profile on OLT :
Click on the image to enlarge it.
(CONFIGURATIONS > GENERIC > EQUIPMENT MODELS > CREATE MODEL)
- NAME – name of the ONT profile (e.g HL-4GV)
- VENDOR – HALNy,
- MODEL – model of the ONT,
- ADMINISTRATIVE STATE – switch to IN SERVICE,
- ETH – put exact number of ETH ports of the ONT (HL-4GV used in this example has 4 ETH ports),
- PON – 1,
- RF – in case ONT is equipped with RF port (HL-4GV used in this example has no RF port),
- VoIP - put exact number of POTS ports of the ONT (HL-4GV used in this example has 2 POTS ports),
- VEIP – 1 – for MGMT IP host purposes.2. Add ONT to GPON port
3. Create DBA profile (CONFIGURATIONS > PON > PON DBA PROFILES)
4. Create Ethernet bandwidth profile (CONFIGURATIONS > ETHERNET > ETHERNET BANDWIDTH PROFILE)
5. Add Network services (VLANs) you need (RESOURCES > SERVICES > NETWORK SERVICES).
INTERNET – VLAN 100
IPTV (VLAN 200)
MGMT – IP host – VLAN 400
6. Add Client service to your ONU. (RESOURCES > SERVICES > CLIENT SERVICES)
INTERNET (VLAN 100)

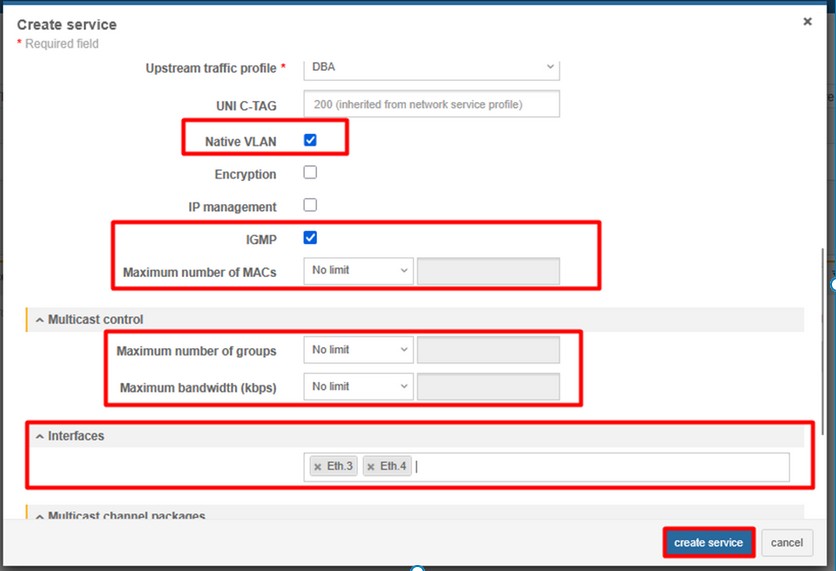

IPTV (VLAN 200)
MGMT (VLAN 400)
3. Service scenario – TRANSPARENT
Attention: Following configuration example is based on the HL-4GV model, which features 4 LAN ports, 1 POTS port. Adjust the configuration/services as needed to suit your ONT model.
1. Create ONT profile on OLT :
Click on the image to enlarge it.
(CONFIGURATIONS > GENERIC > EQUIPMENT MODELS > CREATE MODEL)
- NAME – name of the ONT profile (e.g HL-4GV)
- VENDOR – HALNy,
- MODEL – model of the ONT,
- ADMINISTRATIVE STATE – switch to IN SERVICE,
- ETH – put exact number of ETH ports of the ONT (HL-4GV used in this example has 4 ETH ports),
- PON – 1,
- RF – in case ONT is equipped with RF port (HL-4GV used in this example has no RF port),
- VoIP - put exact number of POTS ports of the ONT (HL-4GV used in this example has 2 POTS ports),
- VEIP – 1 – for MGMT IP host purposes.2. Add ONT to GPON port
3. Create DBA profile (CONFIGURATIONS > PON > PON DBA PROFILES)
4. Create Ethernet bandwidth profile (CONFIGURATIONS > ETHERNET > ETHERNET BANDWIDTH PROFILE)
5. Add Network services (VLANs) you need (RESOURCES > SERVICES > NETWORK SERVICES).
INTERNET – VLAN 100
IPTV (VLAN 200)
VoIP – VLAN 300
MGMT – IP host – VLAN 400

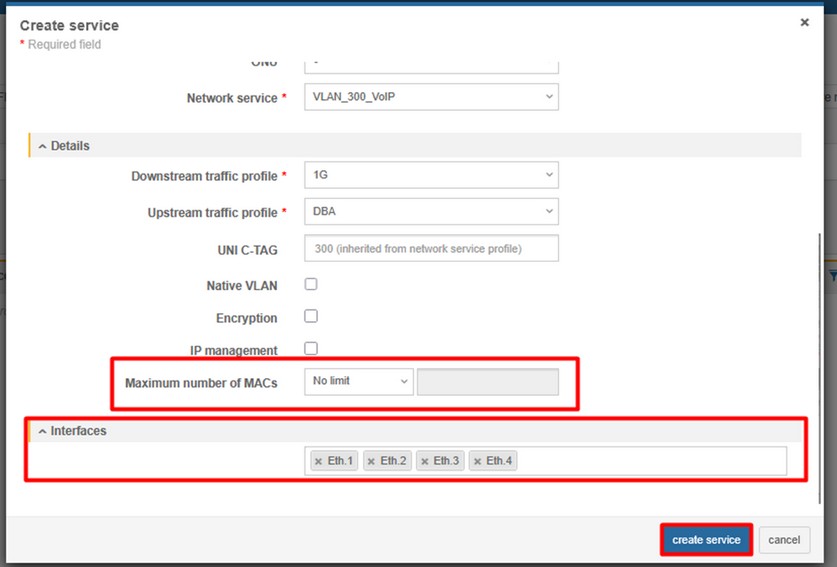

6. Add Client service to your ONU. (RESOURCES > SERVICES > CLIENT SERVICES)

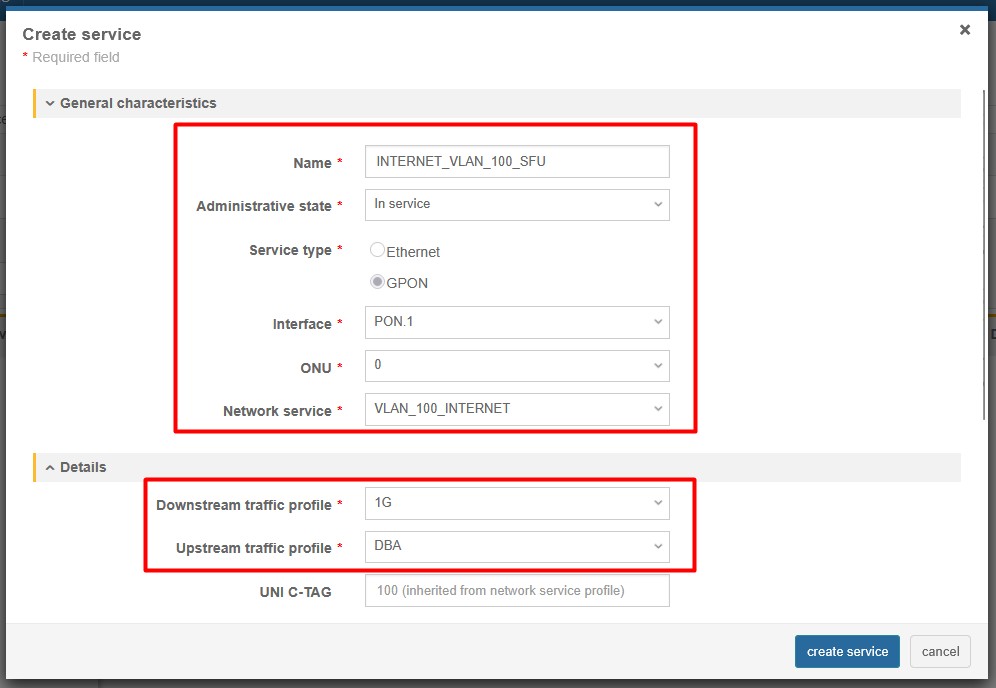

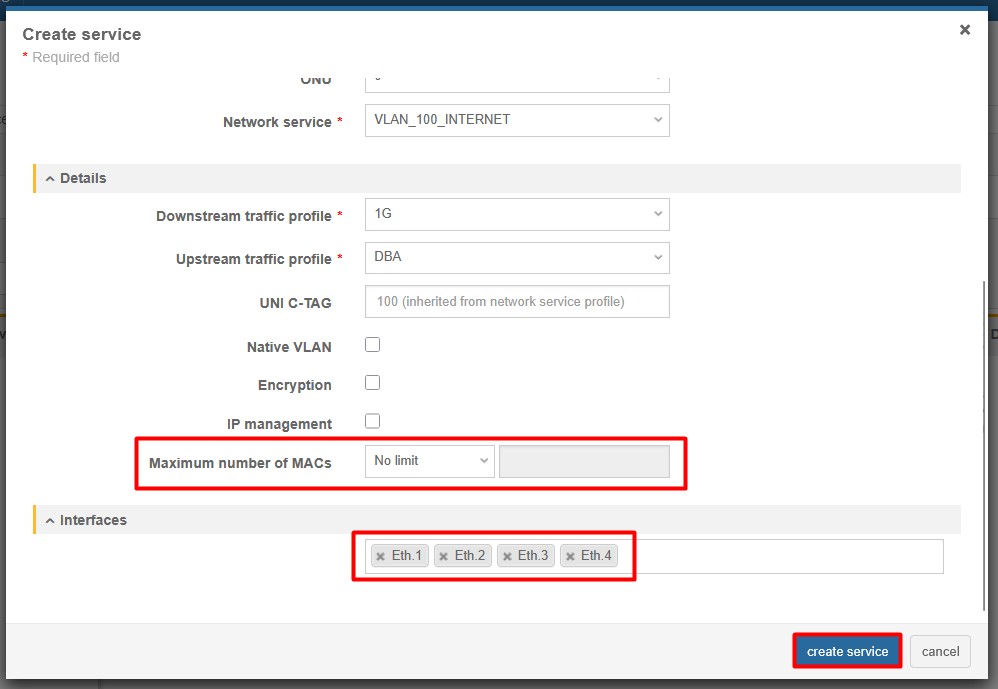

INTERNET (VLAN 100)

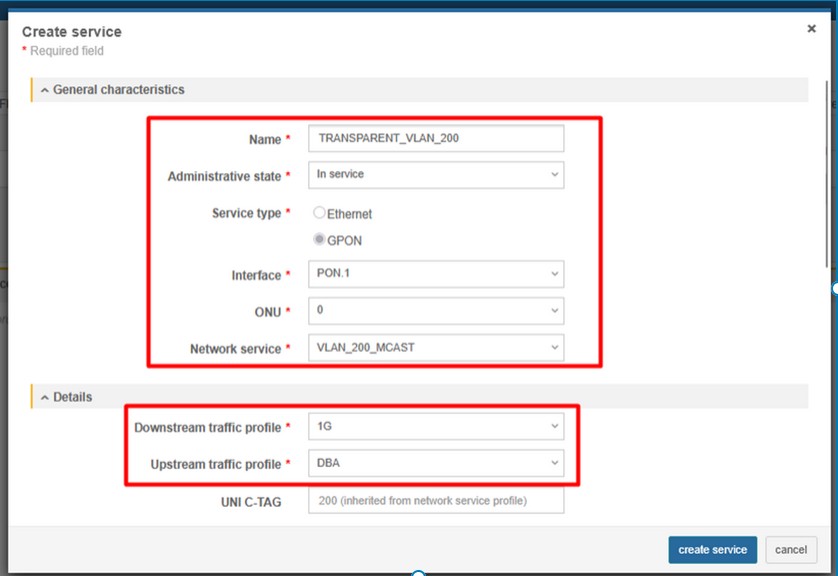

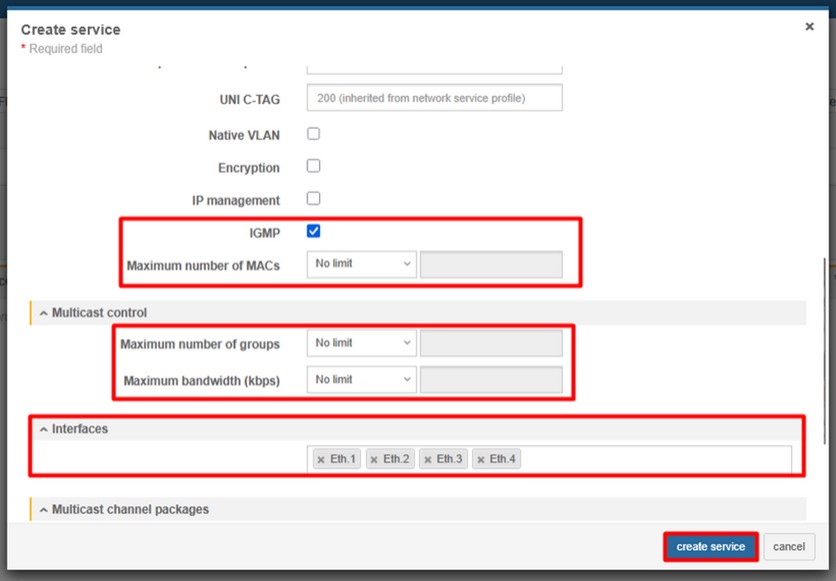

IPTV (VLAN 200)
VoIP (VLAN 300)
MGMT (VLAN 400)
4. Service scenario – VLAN Translation rBSA
Attention: Following configuration example is based on the HL-4GV model, which features 4 LAN ports, 1 POTS port. Adjust the configuration/services as needed to suit your ONT model.
1. Create ONT profile on OLT :
Click on the image to enlarge it.
(CONFIGURATIONS > GENERIC > EQUIPMENT MODELS > CREATE MODEL)
- NAME – name of the ONT profile (e.g HL-4GV)
- VENDOR – HALNy,
- MODEL – model of the ONT,
- ADMINISTRATIVE STATE – switch to IN SERVICE,
- ETH – put exact number of ETH ports of the ONT (HL-4GV used in this example has 4 ETH ports),
- PON – 1,
- RF – in case ONT is equipped with RF port (HL-4GV used in this example has no RF port),
- VoIP - put exact number of POTS ports of the ONT (HL-4GV used in this example has 2 POTS ports),
- VEIP – 1 – for MGMT IP host purposes.2. Add ONT to GPON port
3. Create DBA profile (CONFIGURATIONS > PON > PON DBA PROFILES)
4. Create Ethernet bandwidth profile (CONFIGURATIONS > ETHERNET > ETHERNET BANDWIDTH PROFILE)
5. Add Network services (VLANs) you need (RESOURCES > SERVICES > NETWORK SERVICES).
INTERNET – VLAN 100
IPTV (VLAN 200)
VoIP – VLAN 300
MGMT – IP host – VLAN 400
6. Add Client service to your ONU. (RESOURCES > SERVICES > CLIENT SERVICES)

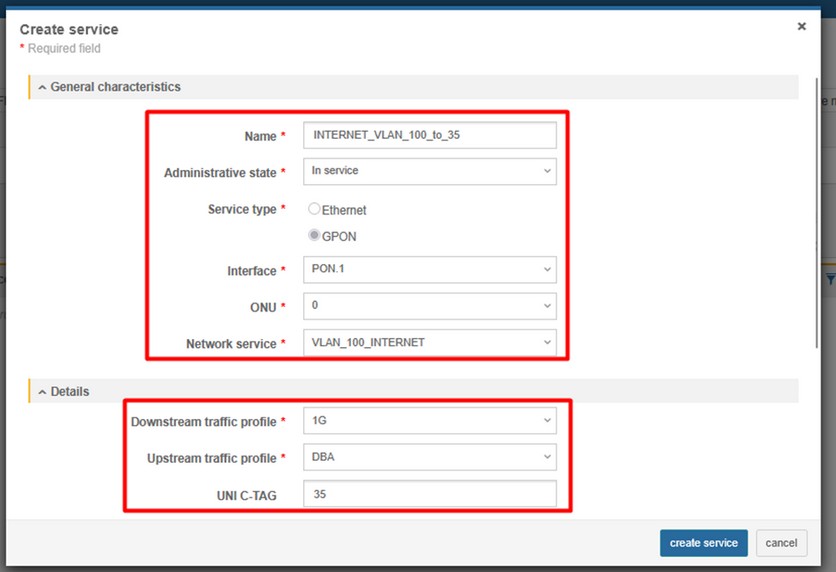

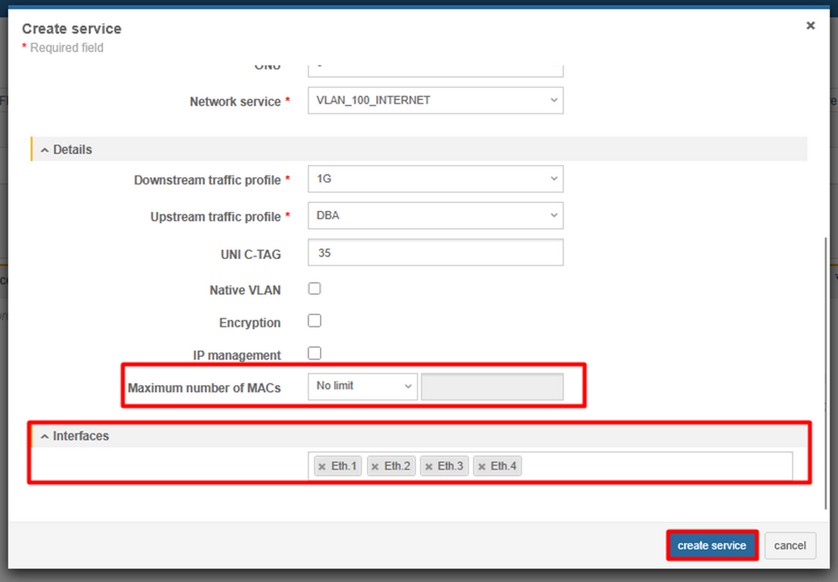

INTERNET

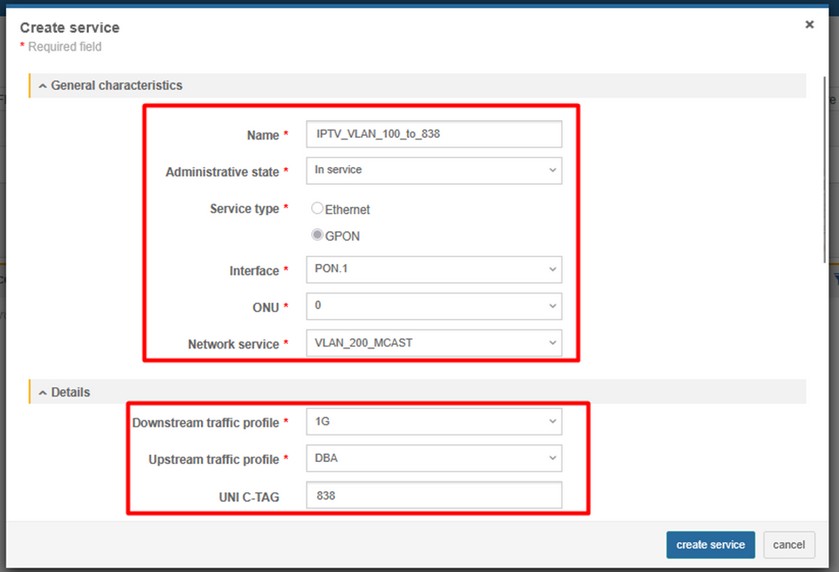

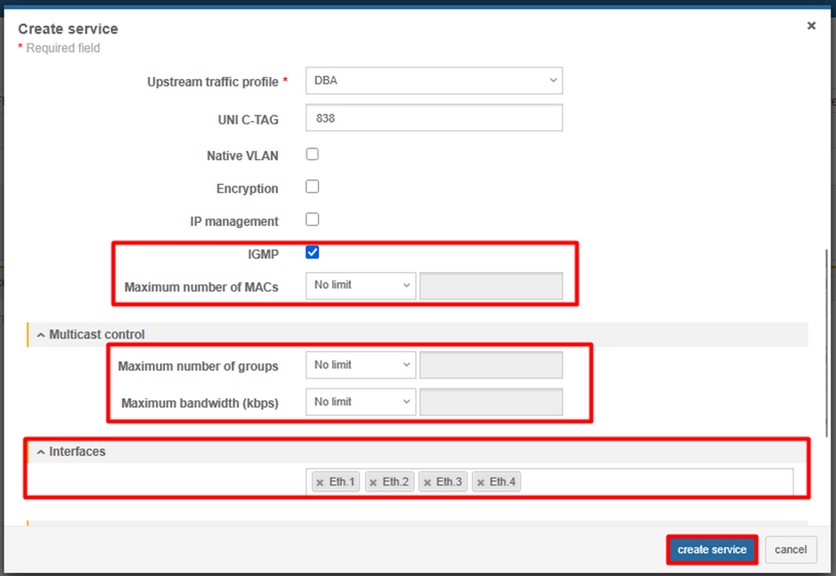

IPTV

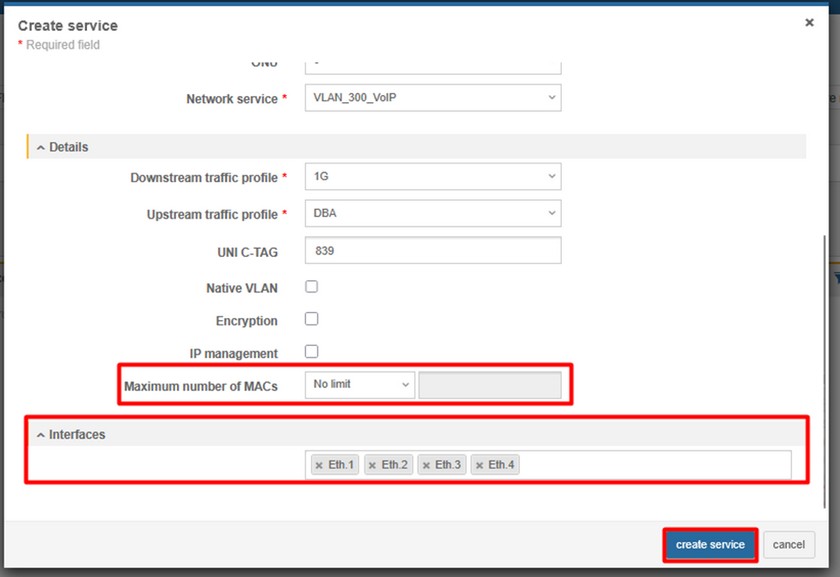

VoIP
MGMT (VLAN 400)
5. Service scenario – QinQ (802.1q in 802.1q Begin/End of Tunnel)
Attention: Following configuration example is based on the HL-4GV model, which features 4 LAN ports, 1 POTS port. Adjust the configuration/services as needed to suit your ONT model.
1. Create ONT profile on OLT :
Click on the image to enlarge it.
(CONFIGURATIONS > GENERIC > EQUIPMENT MODELS > CREATE MODEL)
- NAME – name of the ONT profile (e.g HL-4GV)
- VENDOR – HALNy,
- MODEL – model of the ONT,
- ADMINISTRATIVE STATE – switch to IN SERVICE,
- ETH – put exact number of ETH ports of the ONT (HL-4GV used in this example has 4 ETH ports),
- PON – 1,
- RF – in case ONT is equipped with RF port (HL-4GV used in this example has no RF port),
- VoIP - put exact number of POTS ports of the ONT (HL-4GV used in this example has 2 POTS ports),
- VEIP – 1 – for MGMT IP host purposes.2. Add ONT to GPON port
3. Create DBA profile (CONFIGURATIONS > PON > PON DBA PROFILES)
4. Create Ethernet bandwidth profile (CONFIGURATIONS > ETHERNET > ETHERNET BANDWIDTH PROFILE)
5. Add Network services (VLANs) you need (RESOURCES > SERVICES > NETWORK SERVICES).
MGMT – IP host – VLAN 400
6. Add Client service to your ONU. (RESOURCES > SERVICES > CLIENT SERVICES)

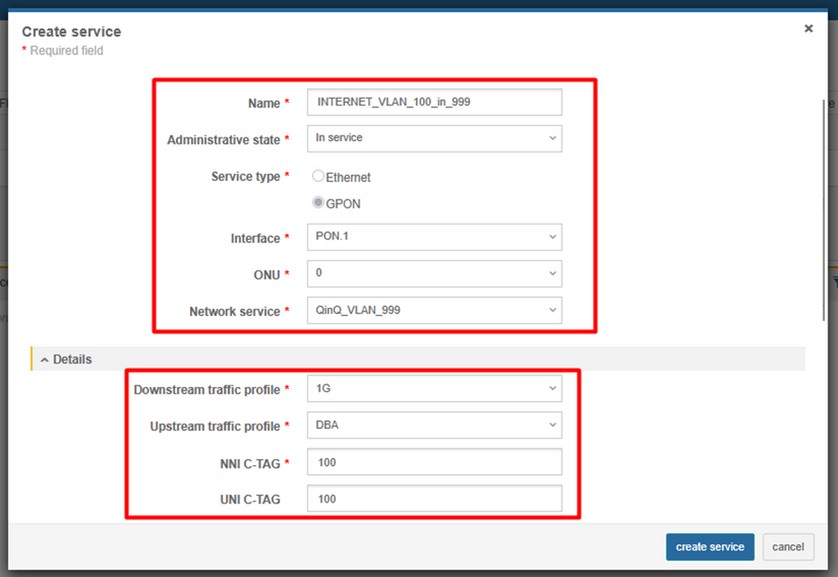

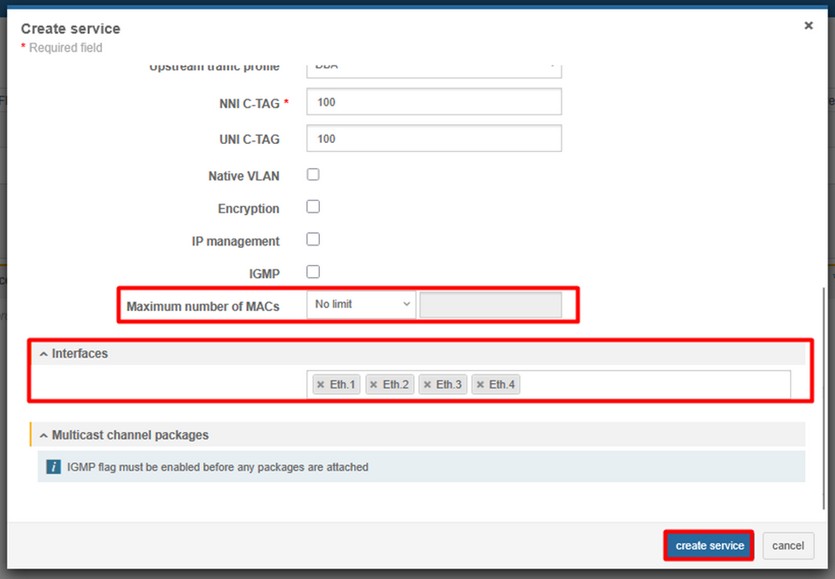

INTERNET (C-VLAN 100)

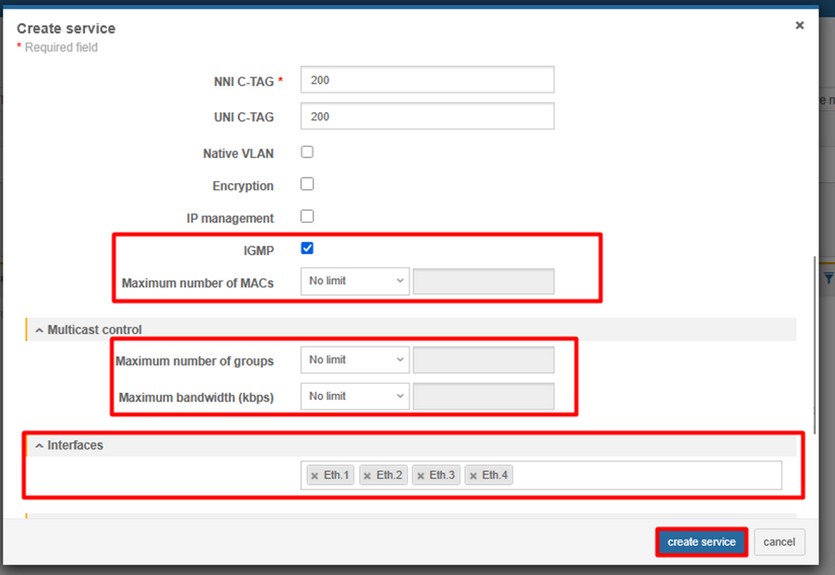

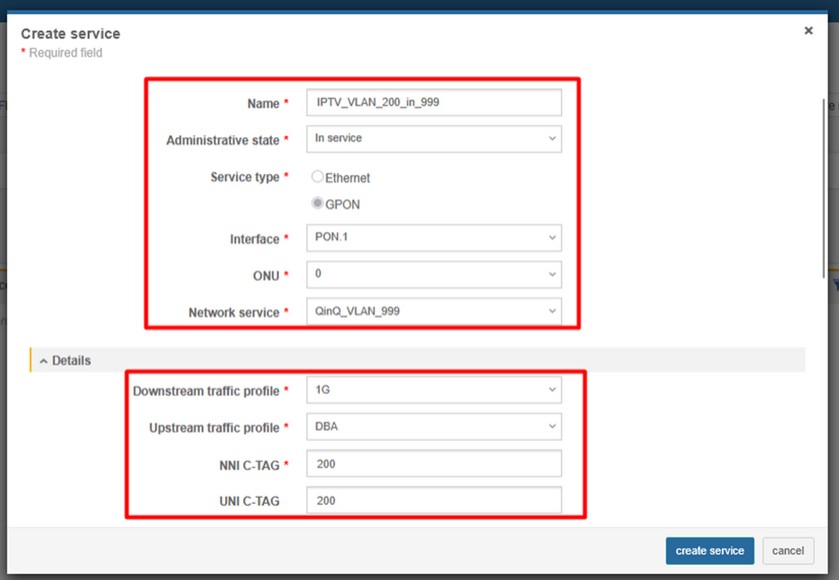

IPTV (C-VLAN 200)

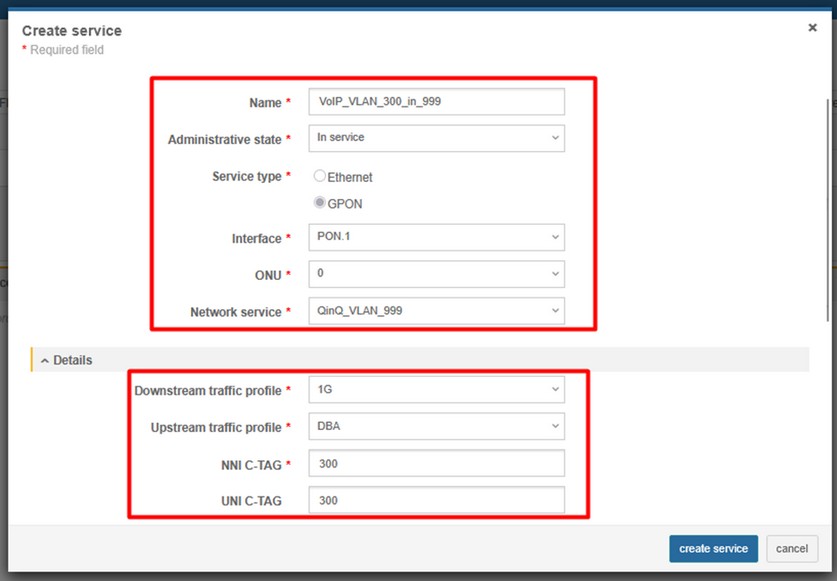

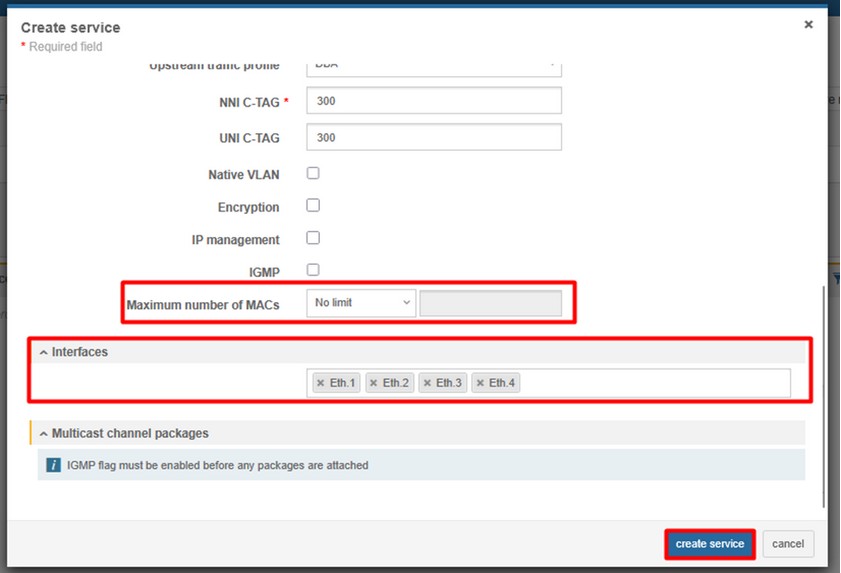

VoIP (C-VLAN 300)
MGMT (VLAN 400)
6. Service scenario – TRANSPARENT QinQ
Attention: Following configuration example is based on the HL-4GV model, which features 4 LAN ports, 1 POTS port. Adjust the configuration/services as needed to suit your ONT model.
1. Create ONT profile on OLT :
Click on the image to enlarge it.
(CONFIGURATIONS > GENERIC > EQUIPMENT MODELS > CREATE MODEL)
- NAME – name of the ONT profile (e.g HL-4GV)
- VENDOR – HALNy,
- MODEL – model of the ONT,
- ADMINISTRATIVE STATE – switch to IN SERVICE,
- ETH – put exact number of ETH ports of the ONT (HL-4GV used in this example has 4 ETH ports),
- PON – 1,
- RF – in case ONT is equipped with RF port (HL-4GV used in this example has no RF port),
- VoIP - put exact number of POTS ports of the ONT (HL-4GV used in this example has 2 POTS ports),
- VEIP – 1 – for MGMT IP host purposes.2. Add ONT to GPON port
3. Create DBA profile (CONFIGURATIONS > PON > PON DBA PROFILES)
4. Create Ethernet bandwidth profile (CONFIGURATIONS > ETHERNET > ETHERNET BANDWIDTH PROFILE)
5. Add Network services (VLANs) you need (RESOURCES > SERVICES > NETWORK SERVICES).
MGMT – IP host – VLAN 400
6. Add Client service to your ONU. (RESOURCES > SERVICES > CLIENT SERVICES)

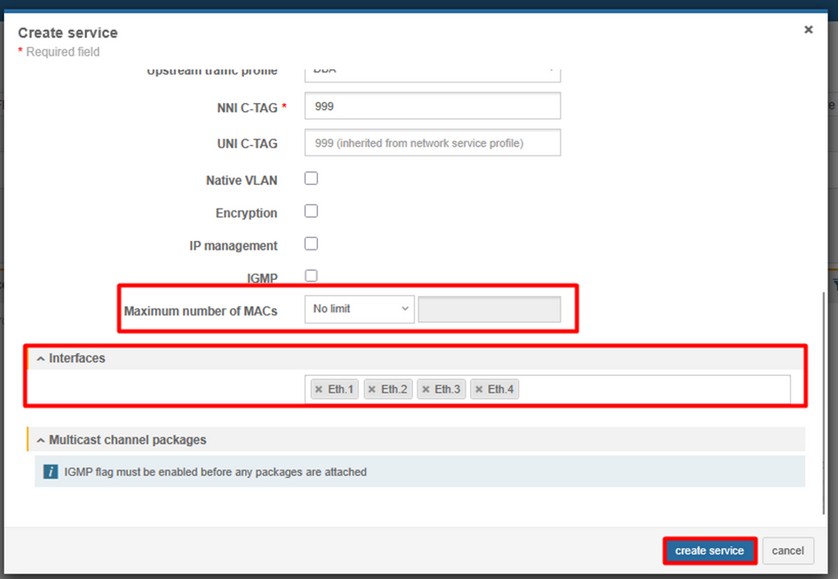

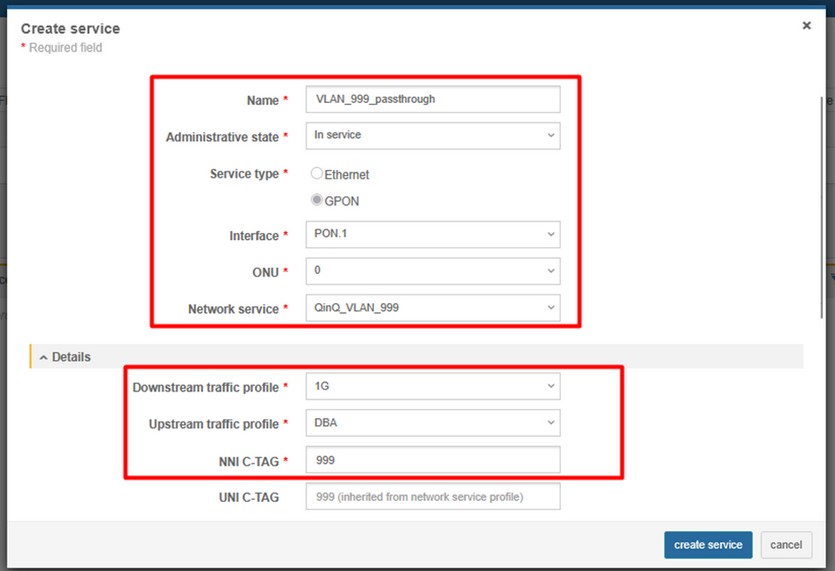

S-VLAN 999 passthrough
MGMT (VLAN 400)
7. Service scenario – OSE / MdO
Attention: Following configuration example is based on the HL-4GV model, which features 4 LAN ports, 1 POTS port. Adjust the configuration/services as needed to suit your ONT model.
1. Create ONT profile on OLT :
Click on the image to enlarge it.
(CONFIGURATIONS > GENERIC > EQUIPMENT MODELS > CREATE MODEL)
- NAME – name of the ONT profile (e.g HL-4GV)
- VENDOR – HALNy,
- MODEL – model of the ONT,
- ADMINISTRATIVE STATE – switch to IN SERVICE,
- ETH – put exact number of ETH ports of the ONT (HL-4GV used in this example has 4 ETH ports),
- PON – 1,
- RF – in case ONT is equipped with RF port (HL-4GV used in this example has no RF port),
- VoIP - put exact number of POTS ports of the ONT (HL-4GV used in this example has 2 POTS ports),
- VEIP – 1 – for MGMT IP host purposes.2. Add ONT to GPON port
3. Create DBA profile (CONFIGURATIONS > PON > PON DBA PROFILES)
4. Create Ethernet bandwidth profile (CONFIGURATIONS > ETHERNET > ETHERNET BANDWIDTH PROFILE)
5. Add Network services (VLANs) you need (RESOURCES > SERVICES > NETWORK SERVICES).
MGMT – IP host – VLAN 400

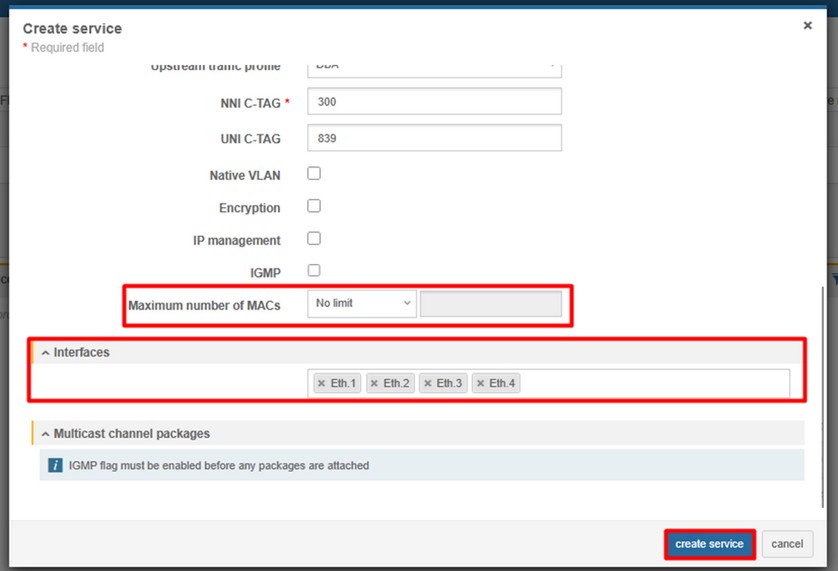

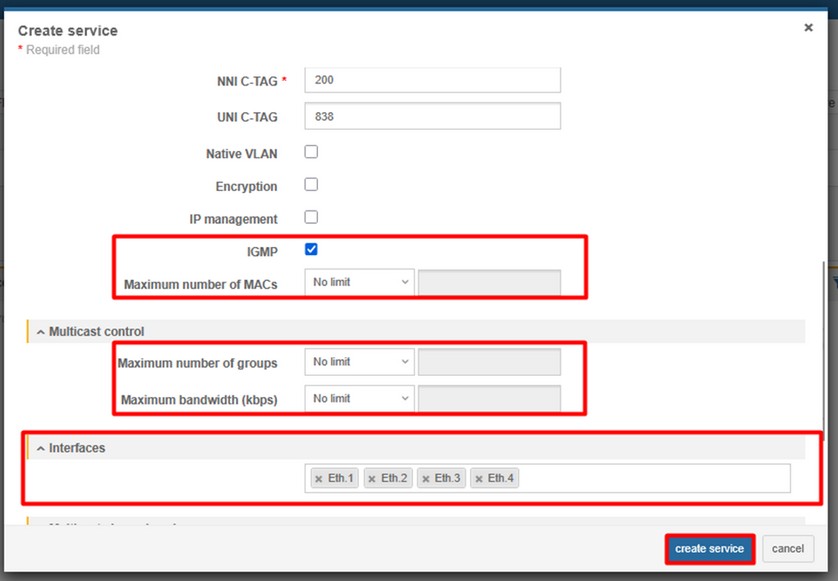

6. Add Client service to your ONU. (RESOURCES > SERVICES > CLIENT SERVICES)

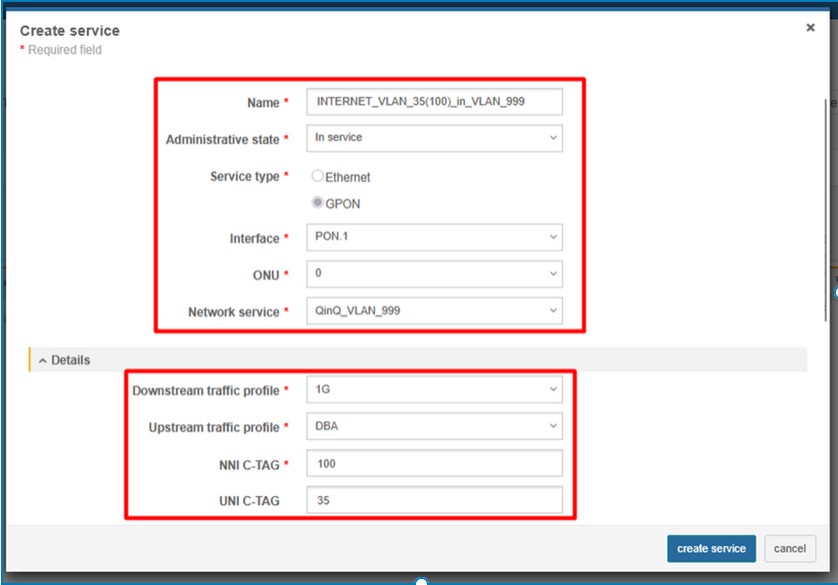

INTERNET

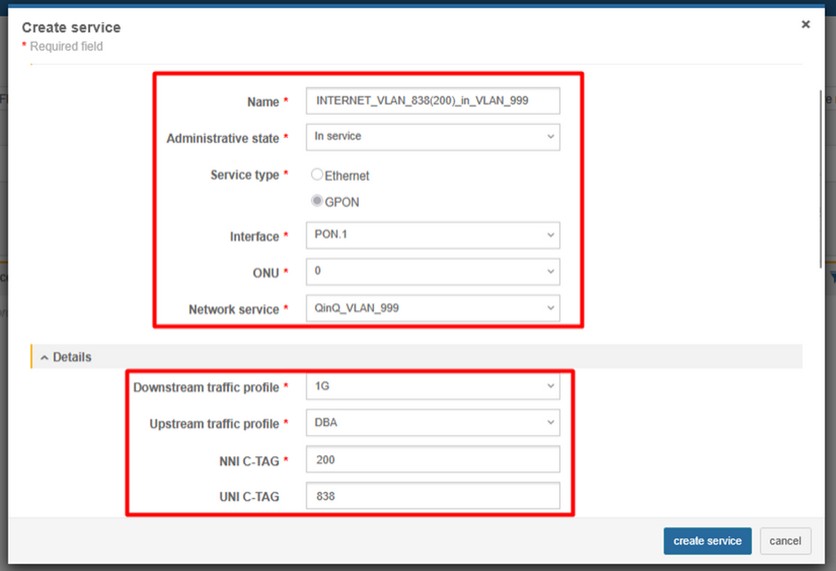

IPTV
VoIP
MGMT (VLAN 400)
ONT Managment
Note: Most provisioning and upgrade options below require ONT to have a valid IP Host setup. For detailed information regarding IP Host click here.
| Method | Configuration | Upgrade |
| Rest API V2 | [Example] | – |
| XML Provisioning [DHCP 66/67, WEB] | [Example] | – |
| OTT | – | [Example] |
| OLT CLI | – | [Example] |
| TR-069 [DHCP 43] | [Example] | [Example] |
| WEB | [Example] | [Example] |
