[ALTICE] OLT1T0 OLT Integration with HALNy SFU 2 LAN
HALNy Integration
Supported SFU service scenarios
1. ONT configuration (Access mode, only INTERNET)
Attention: Following configuration example is based on the HL-2BV model, which features 2 LAN ports, 1 POTS port. Adjust the configuration/services as needed to suit your ONT model.
1. Create ONT profile on OLT:
Click on the image to enlarge it.

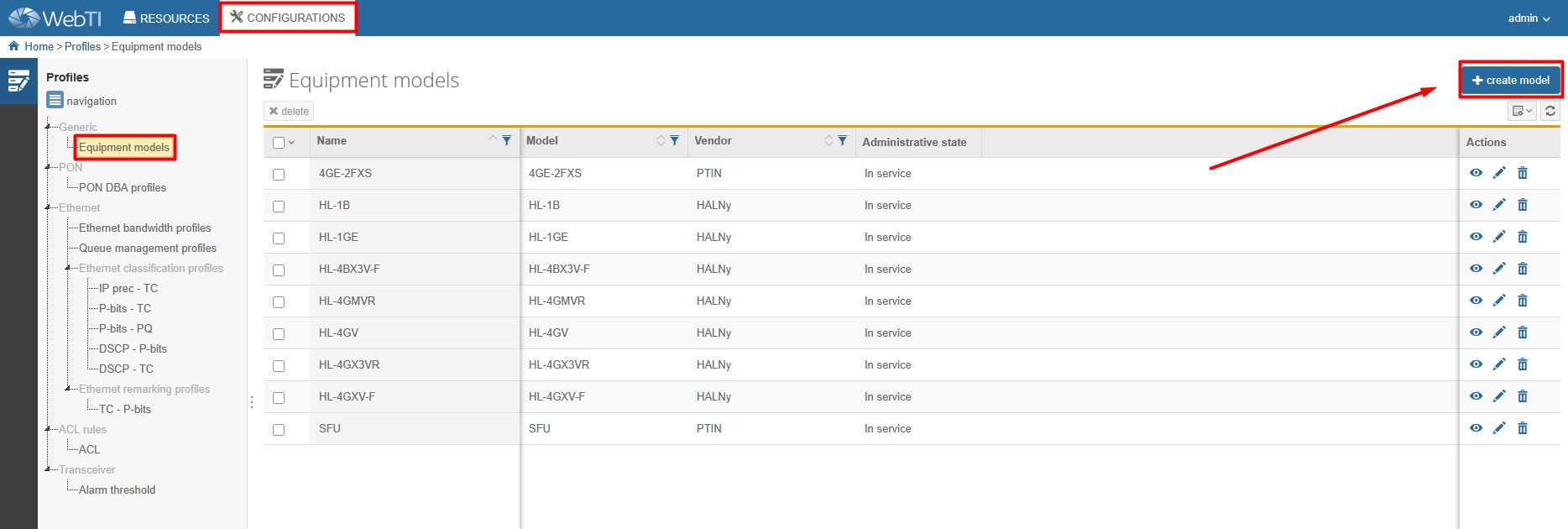

(CONFIGURATIONS > GENERIC > EQUIPMENT MODELS > CREATE MODEL)
- NAME – name of the ONT profile (e.g HL-2BV)
- VENDOR – HALNy
- MODEL – model of the ONT
- ADMINISTRATIVE STATE – switch to IN SERVICE,
- ETH – put exact number of ETH ports of the ONT (HL-2BV used in this example has 2 ETH ports)
- PON – 1
- RF – in case ONT is equipped with RF port (HL-2BV used in this example has no RF port)
- VoIP - put exact number of POTS ports of the ONT (HL-2BV used in this example has 1 POTS port)
- VEIP – 1 – for MGMT IP host purposes.

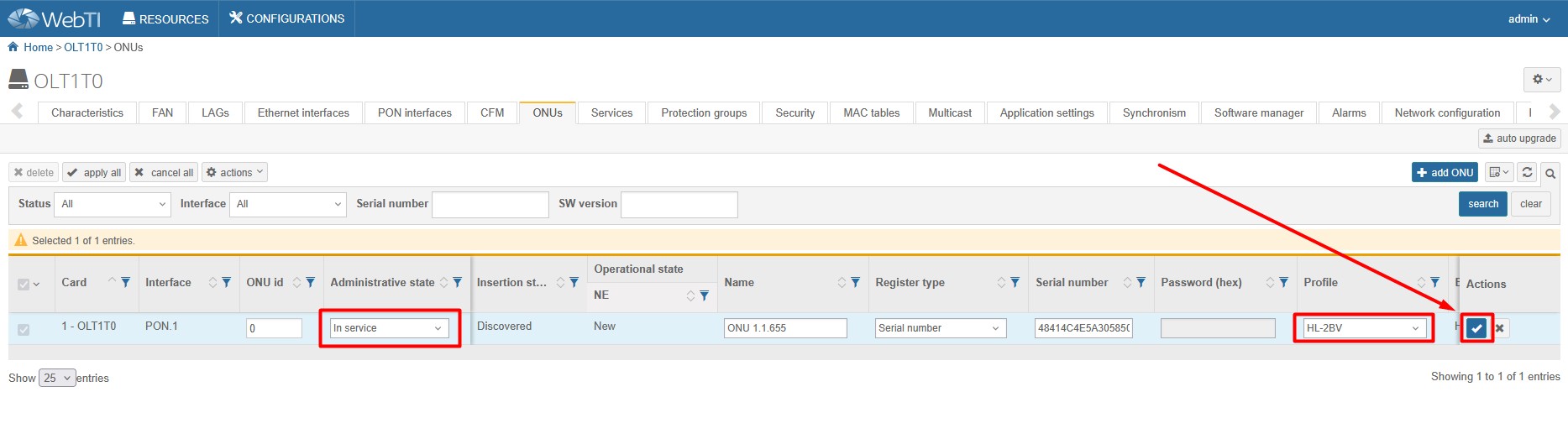

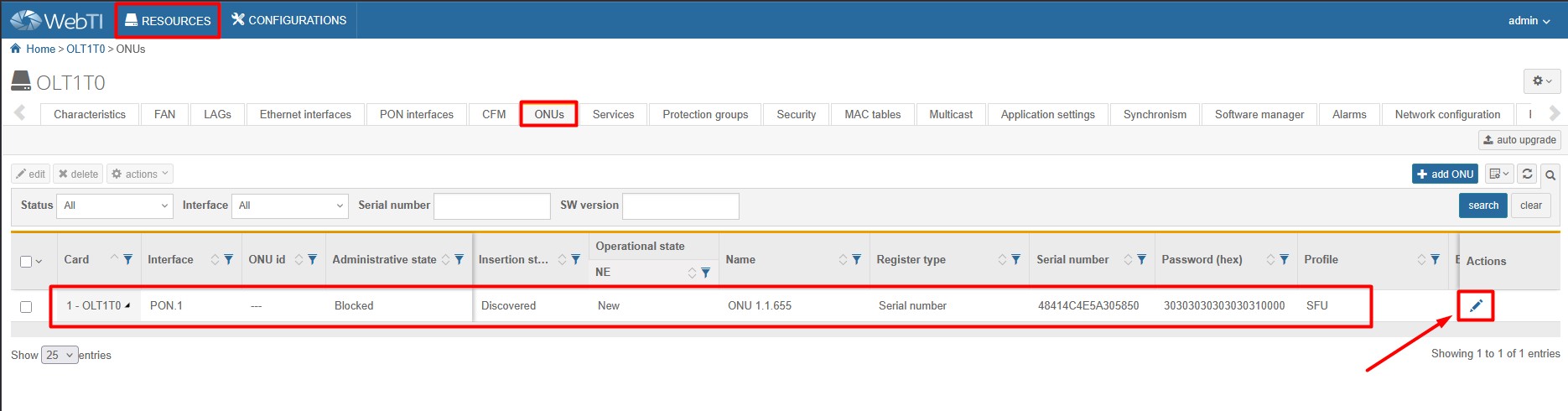

2. Add ONT to GPON port (RESOURCES > ONUs)

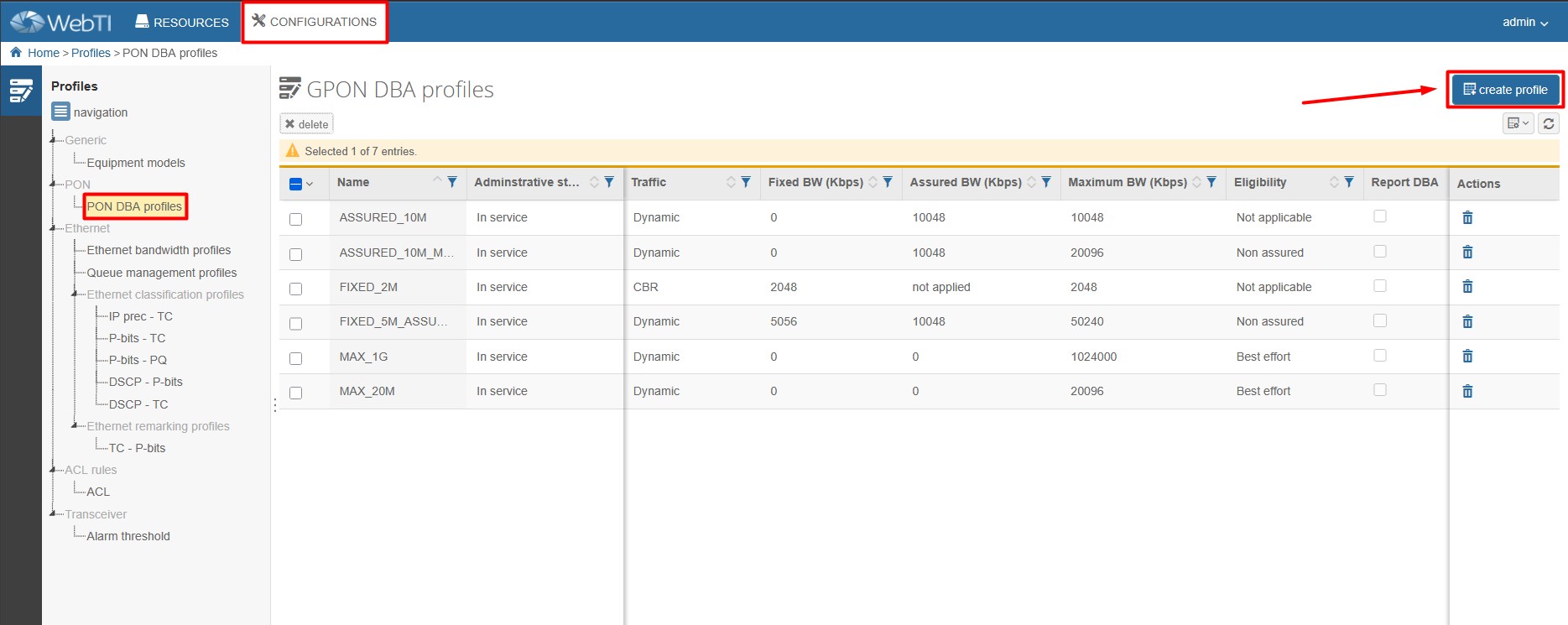

3. Create DBA profile (CONFIGURATIONS > PON > PON DBA PROFILES)

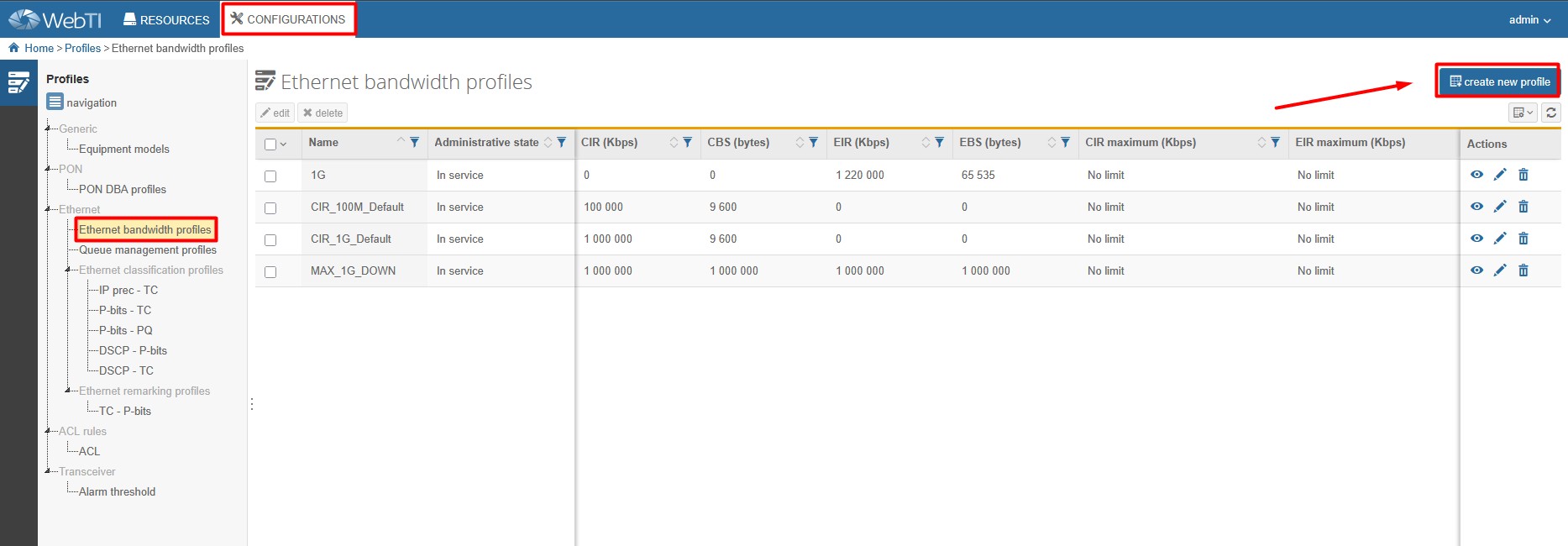

4. Create Ethernet bandwidth profile (CONFIGURATIONS > ETHERNET > ETHERNET BANDWIDTH PROFILE)
NOTE: HL-2BV has one ETH 2.5G port, so there is need to setup ethernet bandwidth profile with higher EIR value than in profile named *1G* to match ETH 2.5G bandwidth.

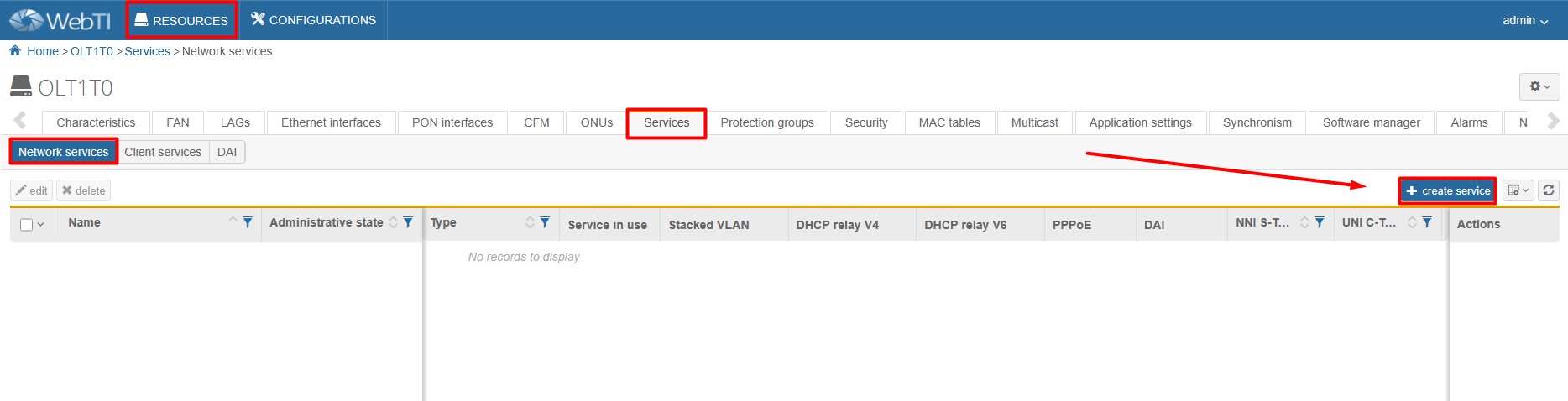

5. Add Network services (VLANs) you need (RESOURCES > SERVICES > NETWORK SERVICES).

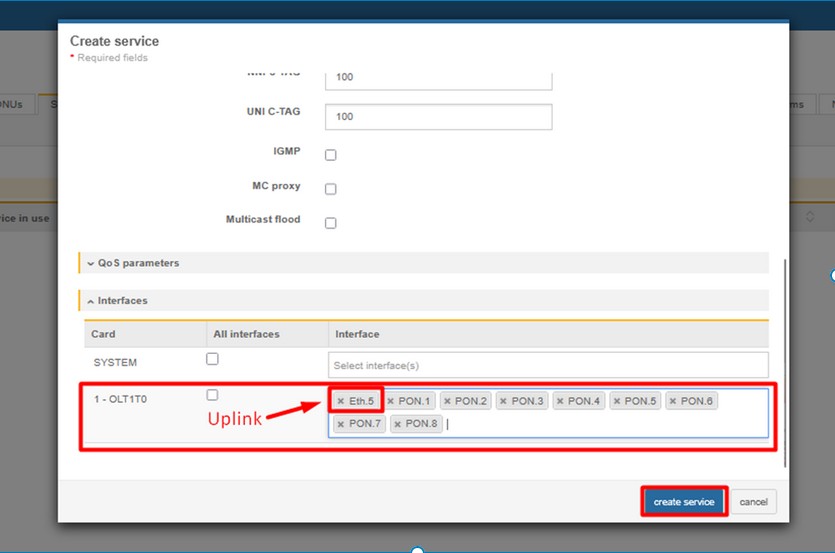

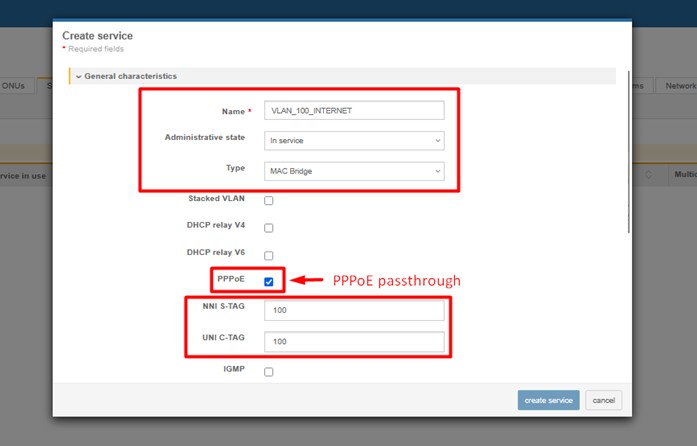

INTERNET – VLAN 100

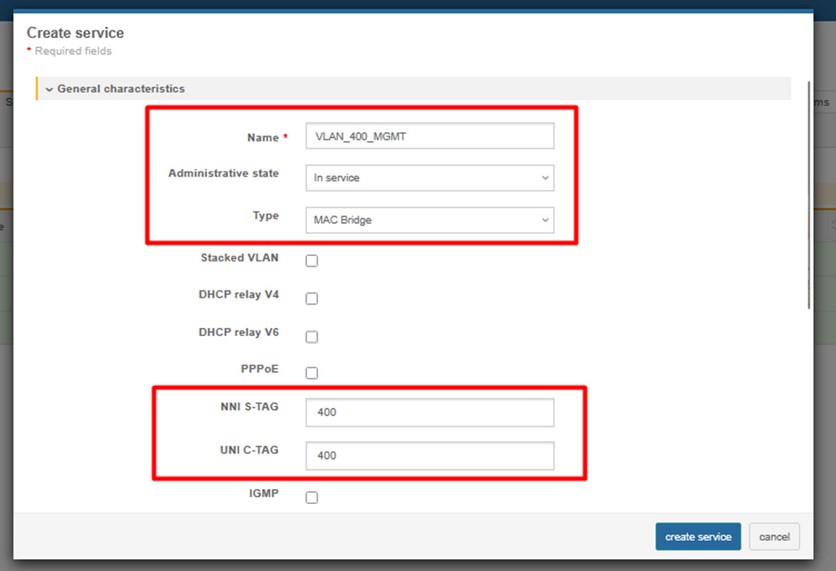

MGMT – IP host – VLAN 400

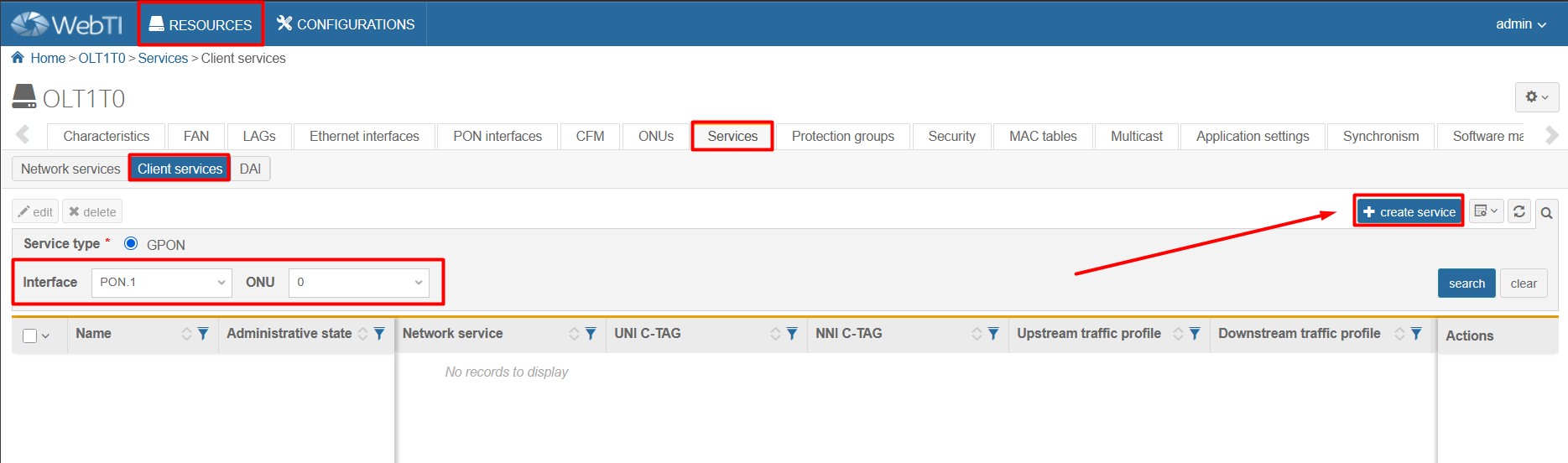

6. Add Client service to your ONU. (RESOURCES > SERVICES > CLIENT SERVICES)

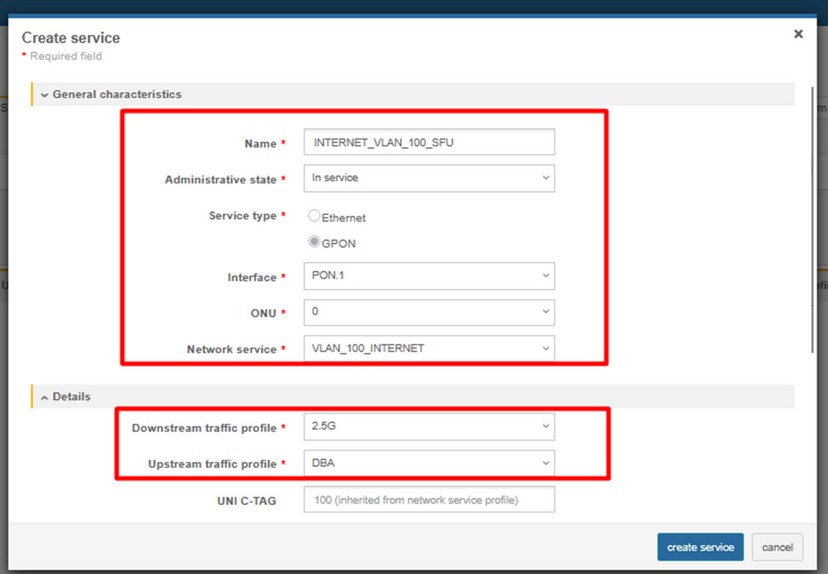

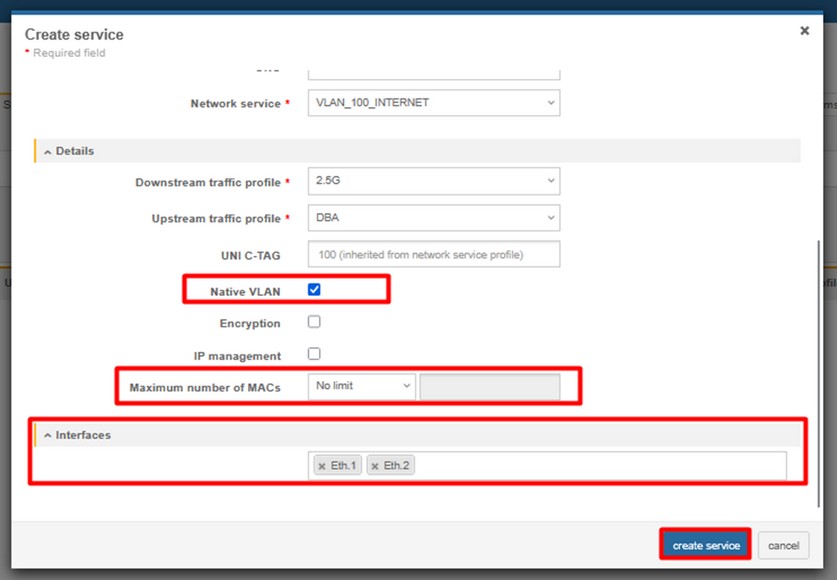

INTERNET (VLAN 100)

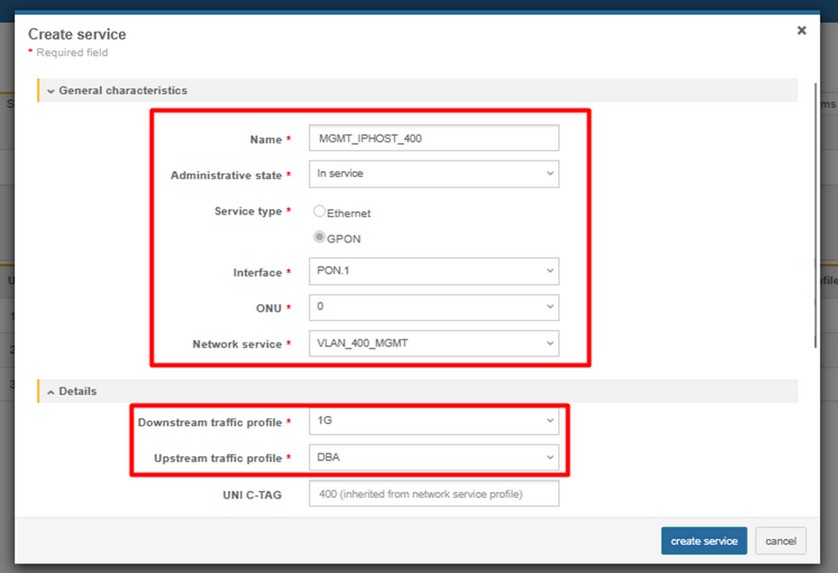

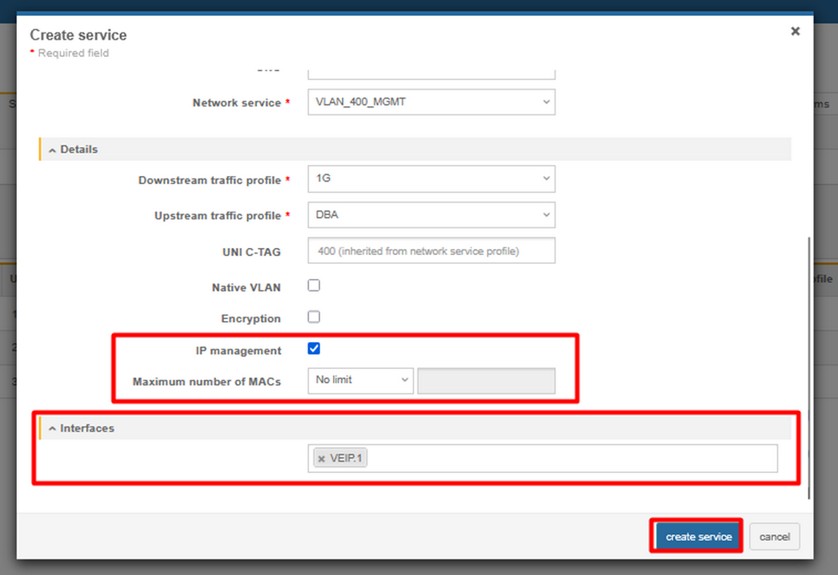

MGMT (VLAN 400)
2. Service scenario – Access mode, Internet + IPTV
1.Create ONT profile on OLT:
Attention: Following configuration example is based on the HL-2BV model, which features 2 LAN ports, 1 POTS port. Adjust the configuration/services as needed to suit your ONT model.
1. Create ONT profile on OLT:
Click on the image to enlarge it.
(CONFIGURATIONS > GENERIC > EQUIPMENT MODELS > CREATE MODEL)
- NAME – name of the ONT profile (e.g HL-2BV)
- VENDOR – HALNy
- MODEL – model of the ONT
- ADMINISTRATIVE STATE – switch to IN SERVICE,
- ETH – put exact number of ETH ports of the ONT (HL-2BV used in this example has 2 ETH ports)
- PON – 1
- RF – in case ONT is equipped with RF port (HL-2BV used in this example has no RF port)
- VoIP - put exact number of POTS ports of the ONT (HL-2BV used in this example has 1 POTS port)
- VEIP – 1 – for MGMT IP host purposes.2. Add ONT to GPON port (RESOURCES > ONUs)
3. Create DBA profile (CONFIGURATIONS > PON > PON DBA PROFILES)
4. Create Ethernet bandwidth profile (CONFIGURATIONS > ETHERNET > ETHERNET BANDWIDTH PROFILE)
NOTE: HL-2BV has one ETH 2.5G port, so there is need to setup ethernet bandwidth profile with higher EIR value than in profile named *1G* to match ETH 2.5G bandwidth.
5. Add Network services (VLANs) you need (RESOURCES > SERVICES > NETWORK SERVICES).
INTERNET – VLAN 100

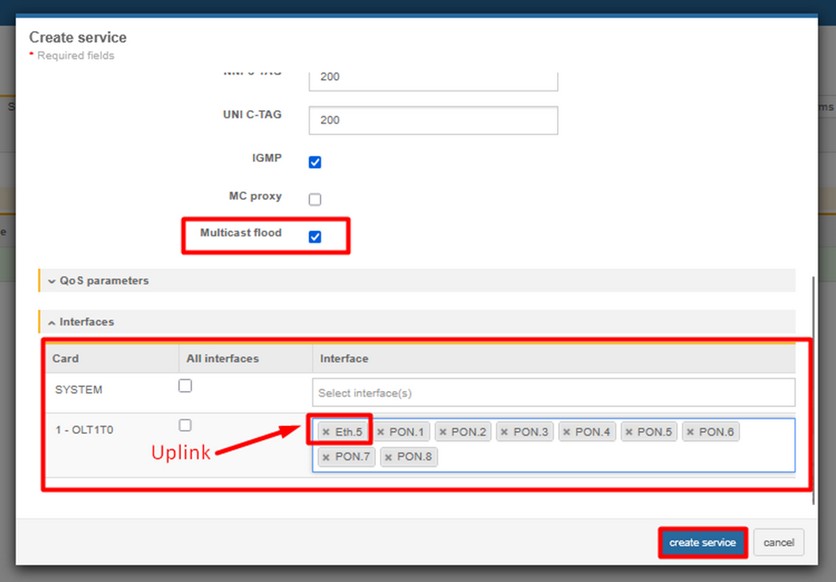

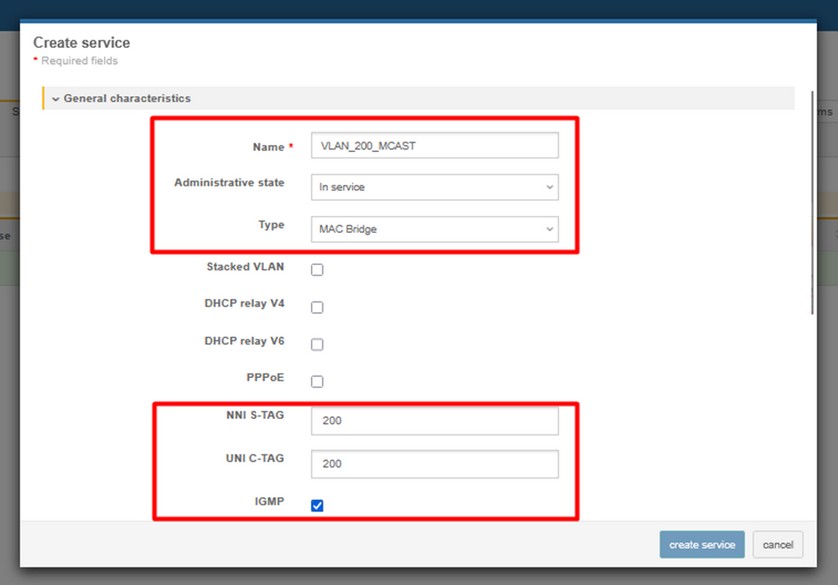

MULTICAST – VLAN 200
MGMT – IP host – VLAN 400
6. Add Client service to your ONU. (RESOURCES > SERVICES > CLIENT SERVICES)

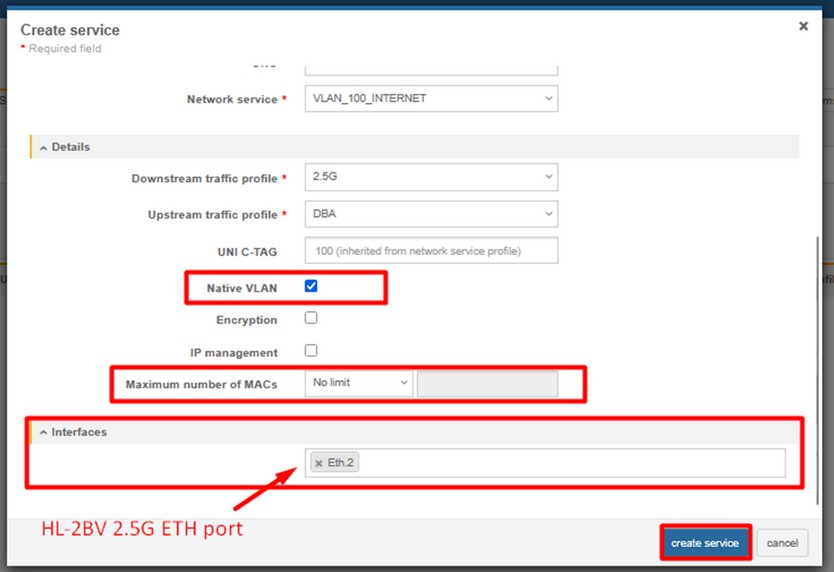

INTERNET (VLAN 100, binding to ETH 2.5G port)

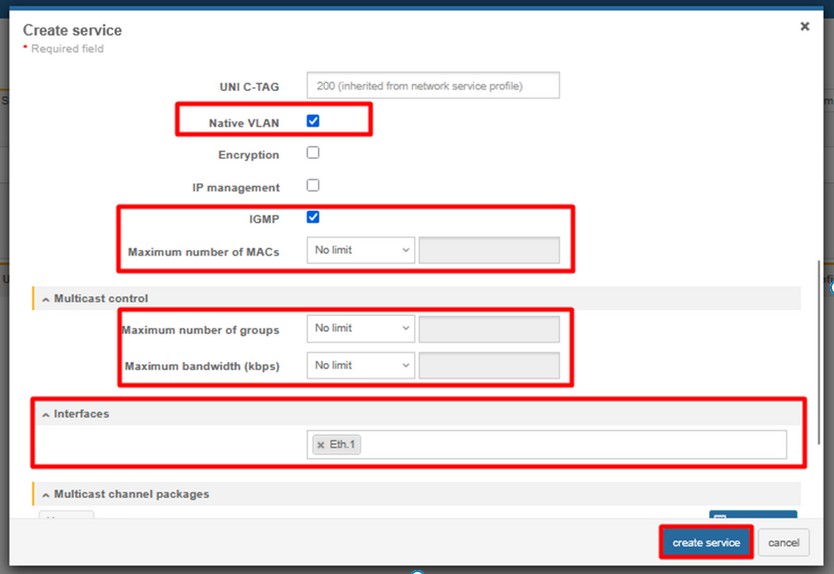

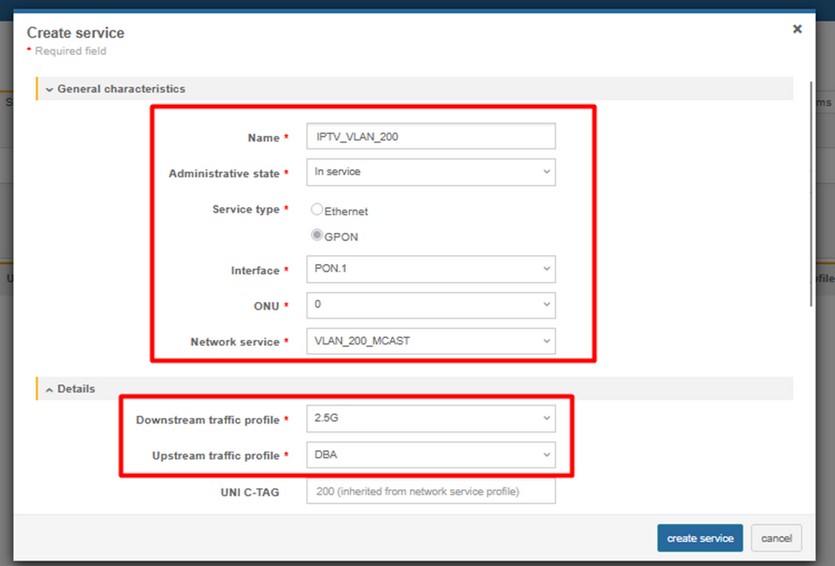

IPTV (VLAN 200, binding to 1G ETH port)
MGMT (VLAN 400)
3. Service scenario – TRANSPARENT
Attention: Following configuration example is based on the HL-2BV model, which features 2 LAN ports, 1 POTS port. Adjust the configuration/services as needed to suit your ONT model.
1. Create ONT profile on OLT:
Click on the image to enlarge it.
(CONFIGURATIONS > GENERIC > EQUIPMENT MODELS > CREATE MODEL)
- NAME – name of the ONT profile (e.g HL-2BV)
- VENDOR – HALNy
- MODEL – model of the ONT
- ADMINISTRATIVE STATE – switch to IN SERVICE,
- ETH – put exact number of ETH ports of the ONT (HL-2BV used in this example has 2 ETH ports)
- PON – 1
- RF – in case ONT is equipped with RF port (HL-2BV used in this example has no RF port)
- VoIP - put exact number of POTS ports of the ONT (HL-2BV used in this example has 1 POTS port)
- VEIP – 1 – for MGMT IP host purposes.
2. Add ONT to GPON port (RESOURCES > ONUs)
3. Create DBA profile (CONFIGURATIONS > PON > PON DBA PROFILES)
4. Create Ethernet bandwidth profile (CONFIGURATIONS > ETHERNET > ETHERNET BANDWIDTH PROFILE)
NOTE: HL-2BV has one ETH 2.5G port, so there is need to setup ethernet bandwidth profile with higher EIR value than in profile named *1G* to match ETH 2.5G bandwidth.
5. Add Network services (VLANs) you need (RESOURCES > SERVICES > NETWORK SERVICES).
INTERNET – VLAN 100
MULTICAST – VLAN 200

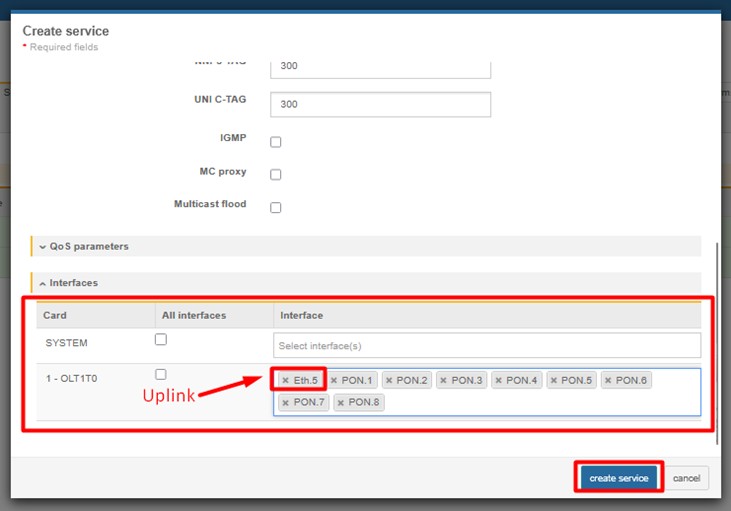

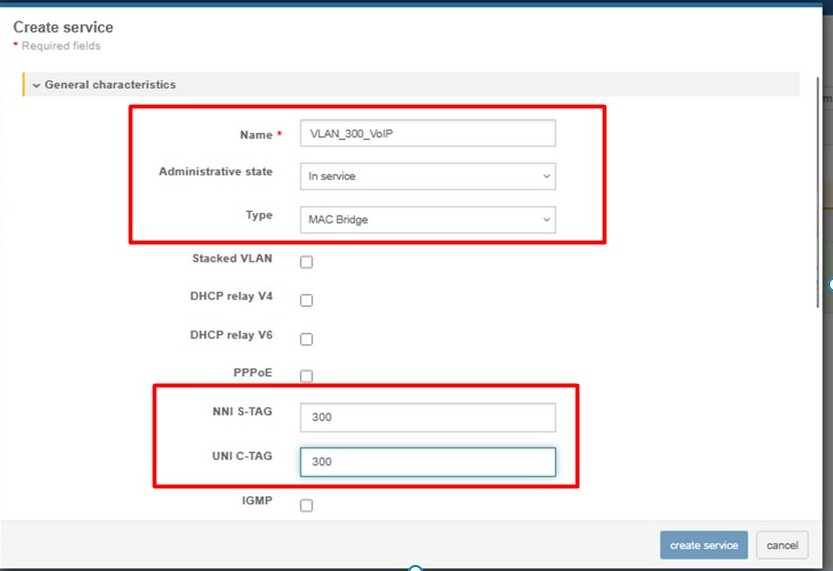

VoIP – VLAN 300

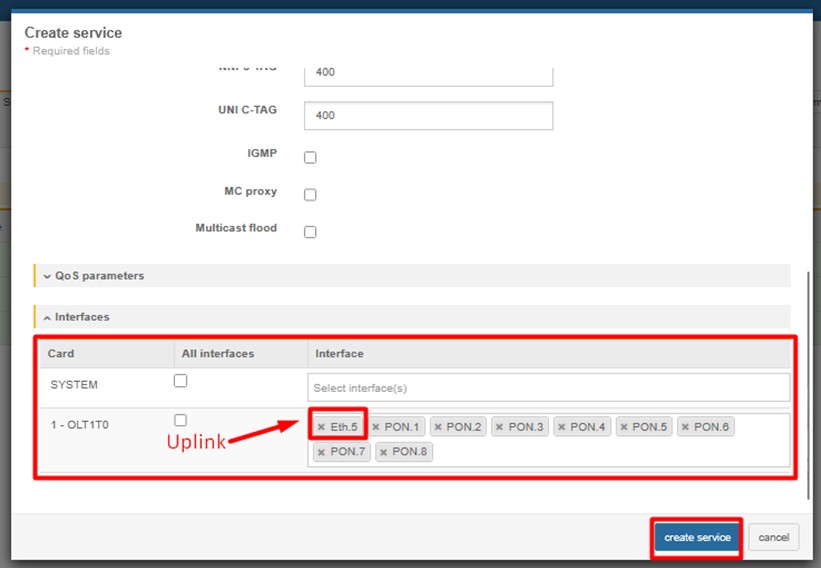

MGMT – IP host – VLAN 400

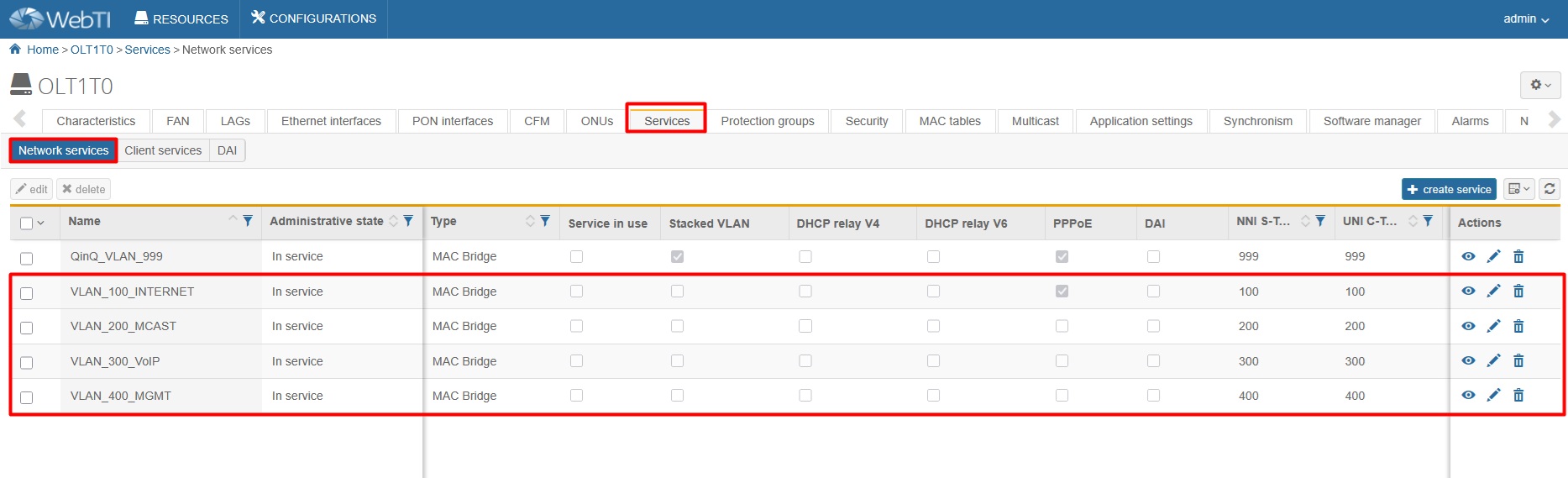

Final result of configured network services should look like below:
6. Add Client service to your ONU. (RESOURCES > SERVICES > CLIENT SERVICES)

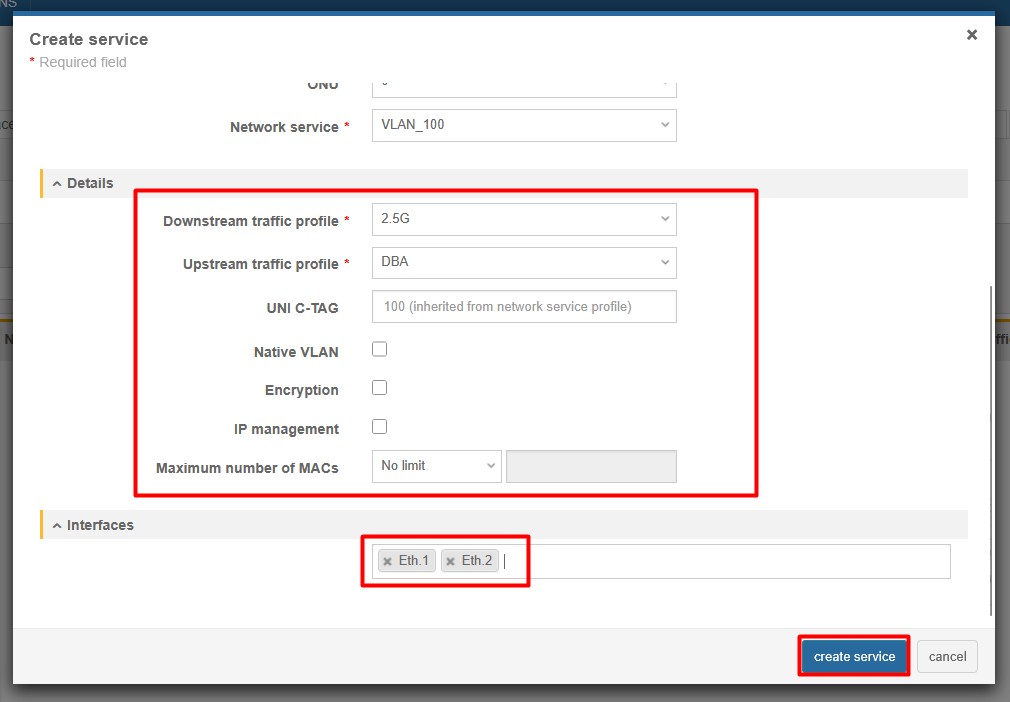

INTERNET (VLAN 100)

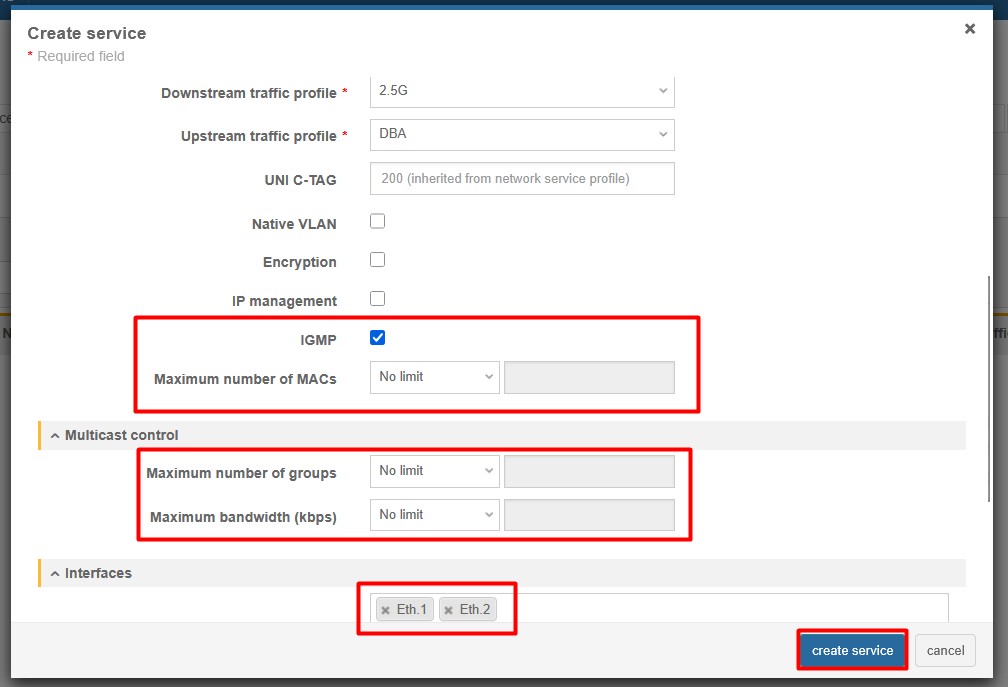

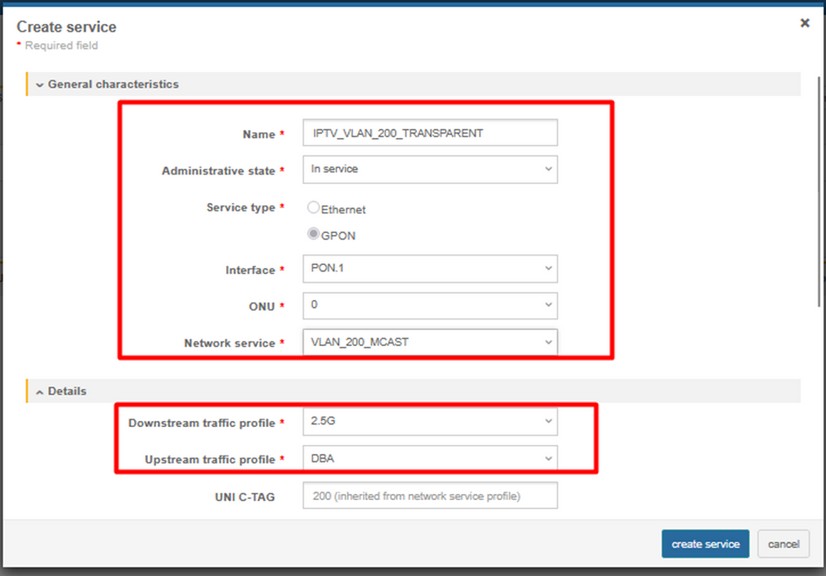

IPTV (VLAN 200)

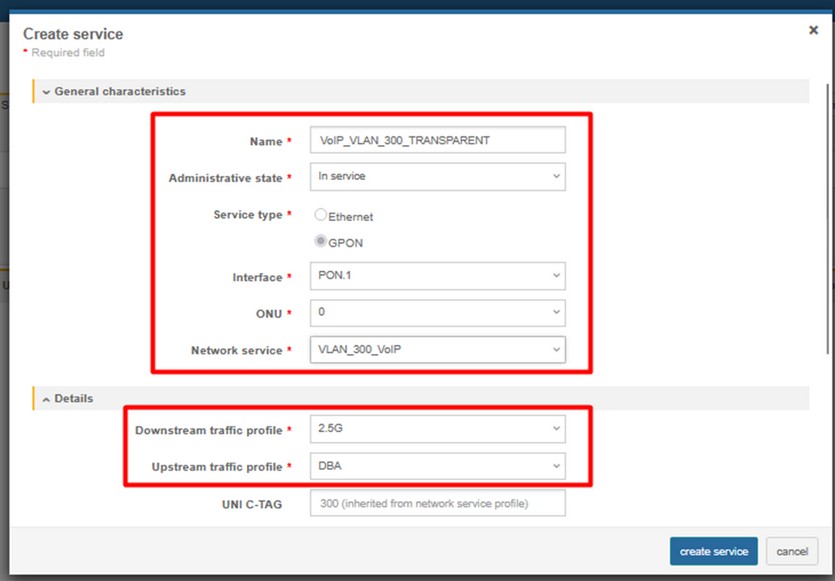

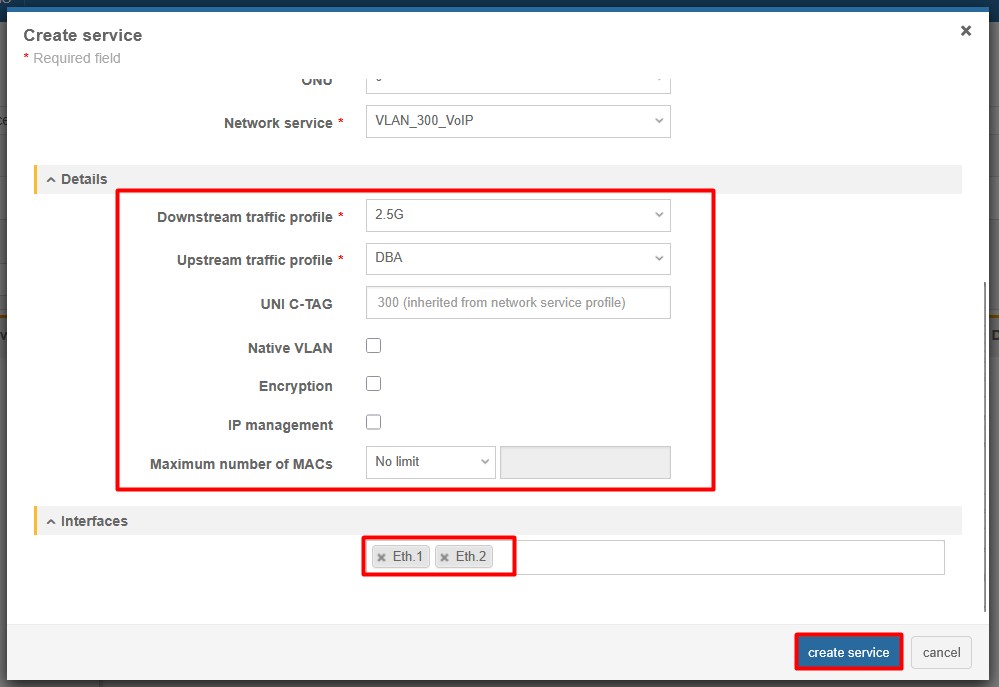

VoIP (VLAN 300)
MGMT (VLAN 400)
4. Service scenario – VLAN translation – rBSA
Attention: Following configuration example is based on the HL-2BV model, which features 2 LAN ports, 1 POTS port. Adjust the configuration/services as needed to suit your ONT model.
1. Create ONT profile on OLT:
Click on the image to enlarge it.
(CONFIGURATIONS > GENERIC > EQUIPMENT MODELS > CREATE MODEL)
- NAME – name of the ONT profile (e.g HL-2BV)
- VENDOR – HALNy
- MODEL – model of the ONT
- ADMINISTRATIVE STATE – switch to IN SERVICE,
- ETH – put exact number of ETH ports of the ONT (HL-2BV used in this example has 2 ETH ports)
- PON – 1
- RF – in case ONT is equipped with RF port (HL-2BV used in this example has no RF port)
- VoIP - put exact number of POTS ports of the ONT (HL-2BV used in this example has 1 POTS port)
- VEIP – 1 – for MGMT IP host purposes.2. Add ONT to GPON port (RESOURCES > ONUs)
3. Create DBA profile (CONFIGURATIONS > PON > PON DBA PROFILES)
4. Create Ethernet bandwidth profile (CONFIGURATIONS > ETHERNET > ETHERNET BANDWIDTH PROFILE)
NOTE: HL-2BV has one ETH 2.5G port, so there is need to setup ethernet bandwidth profile with higher EIR value than in profile named *1G* to match ETH 2.5G bandwidth.
5. Add Network services (VLANs) you need (RESOURCES > SERVICES > NETWORK SERVICES).
INTERNET – VLAN 100
MULTICAST – VLAN 200
VoIP – VLAN 300
MGMT – IP host – VLAN 400
Final result of configured network services should look like below:
6. Add Client services to your ONU. (RESOURCES > SERVICES > CLIENT SERVICES)

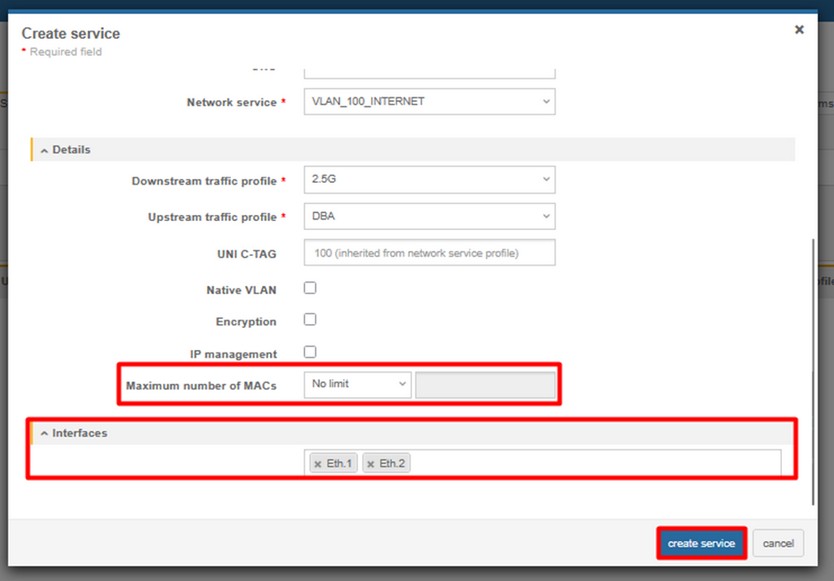

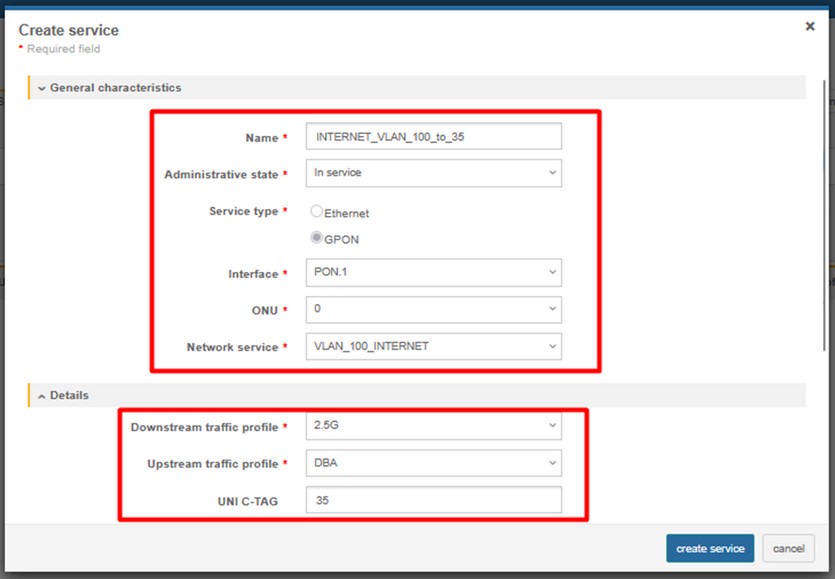

INTERNET (translation VLAN 100 to VLAN 35)

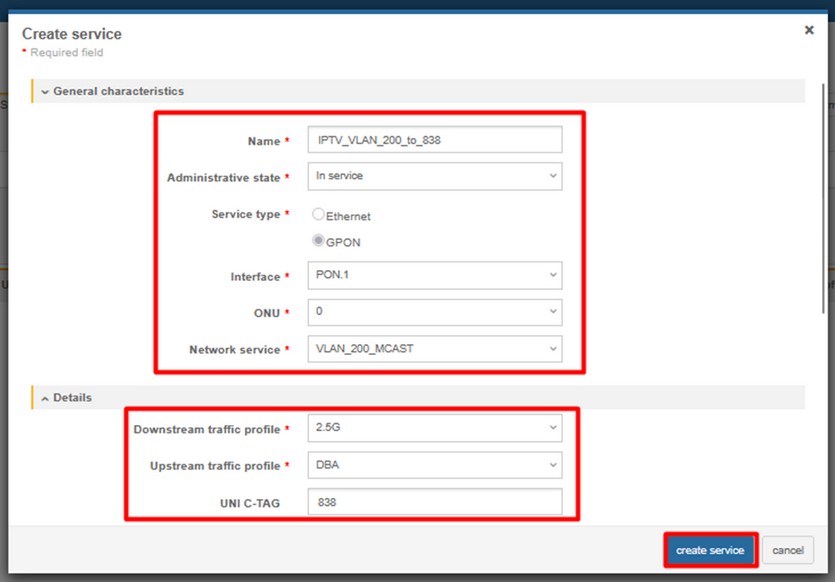

IPTV (translation VLAN 200 to VLAN 838)
VoIP (VLAN 300)
MGMT (VLAN 400)
5. Service scenario – QinQ (802.1q in 802.1q Begin/End of Tunnel)
Attention: Following configuration example is based on the HL-2BV model, which features 2 LAN ports, 1 POTS port. Adjust the configuration/services as needed to suit your ONT model.
1. Create ONT profile on OLT:
Click on the image to enlarge it.
(CONFIGURATIONS > GENERIC > EQUIPMENT MODELS > CREATE MODEL)
- NAME – name of the ONT profile (e.g HL-2BV)
- VENDOR – HALNy
- MODEL – model of the ONT
- ADMINISTRATIVE STATE – switch to IN SERVICE,
- ETH – put exact number of ETH ports of the ONT (HL-2BV used in this example has 2 ETH ports)
- PON – 1
- RF – in case ONT is equipped with RF port (HL-2BV used in this example has no RF port)
- VoIP - put exact number of POTS ports of the ONT (HL-2BV used in this example has 1 POTS port)2. Add ONT to GPON port (RESOURCES > ONUs)
3. Create DBA profile (CONFIGURATIONS > PON > PON DBA PROFILES)
4. Create Ethernet bandwidth profile (CONFIGURATIONS > ETHERNET > ETHERNET BANDWIDTH PROFILE)
NOTE: HL-2BV has one ETH 2.5G port, so there is need to setup ethernet bandwidth profile with higher EIR value than in profile named *1G* to match ETH 2.5G bandwidth.

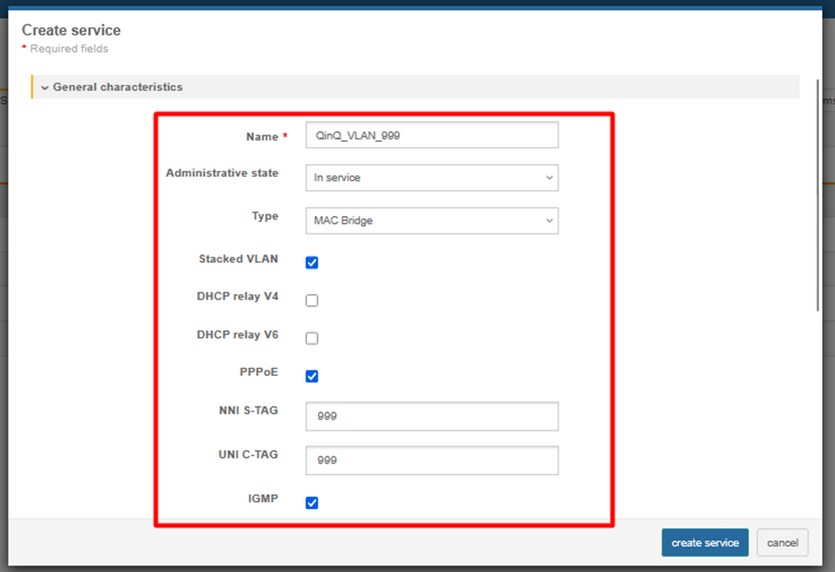

5. Add Network services (VLANs) you need (RESOURCES > SERVICES > NETWORK SERVICES).
6. Add Client services (C-VLANs) to your ONU. (RESOURCES > SERVICES > CLIENT SERVICES)

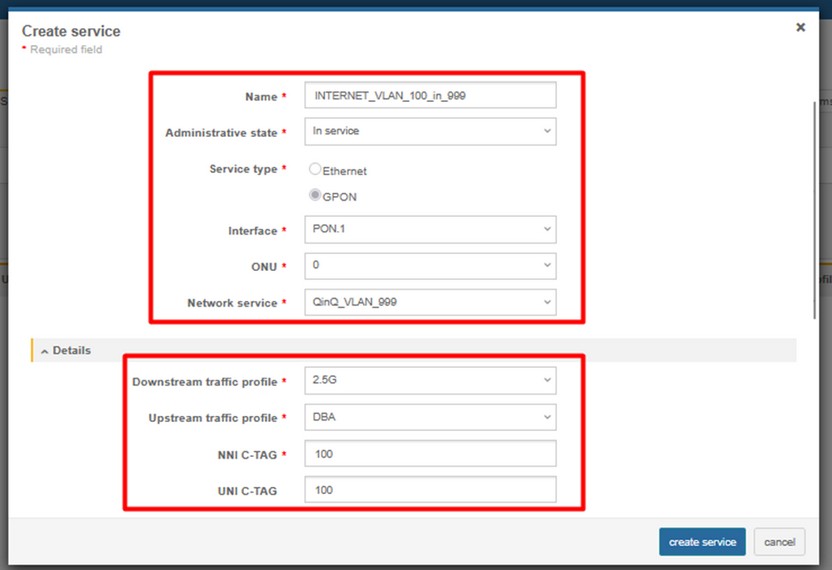

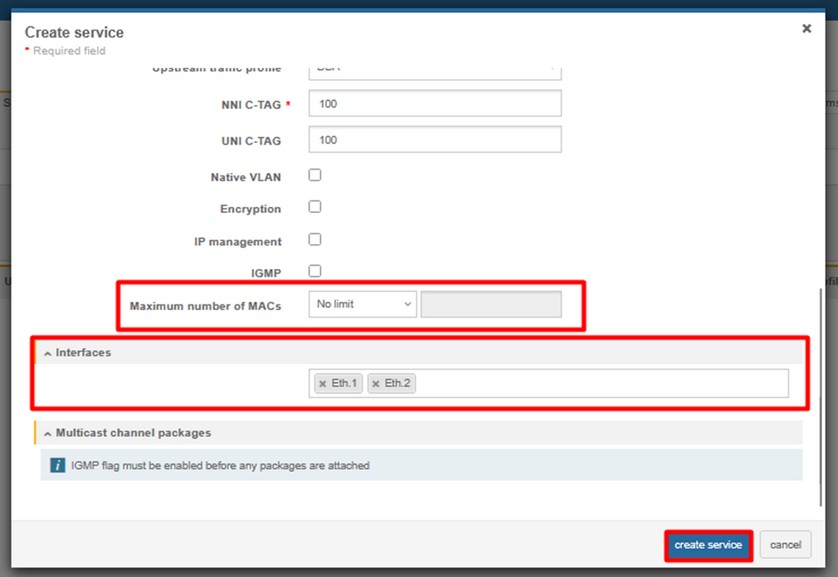

INTERNET (C-VLAN 100)

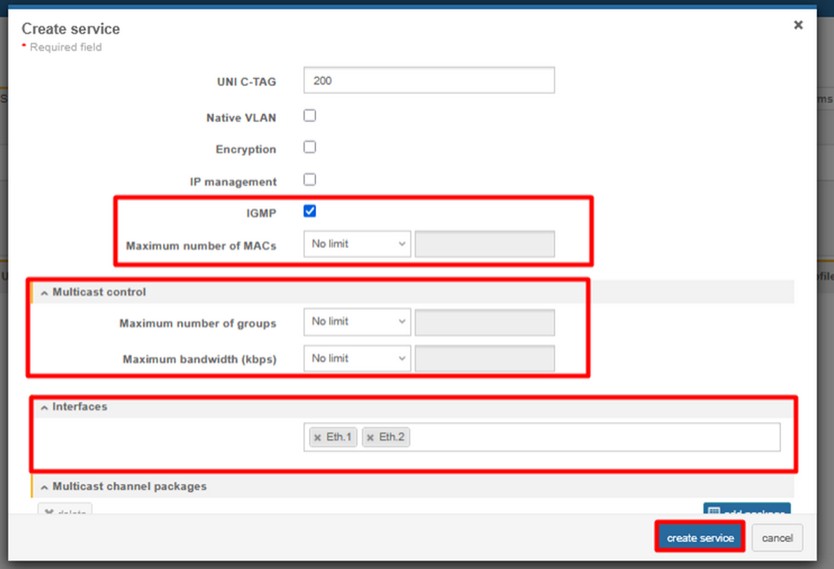

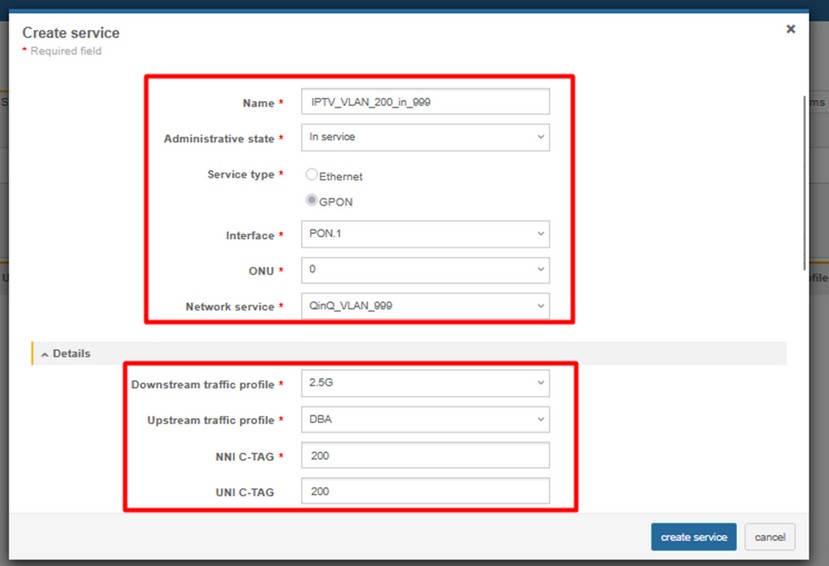

IPTV (C-VLAN 200)

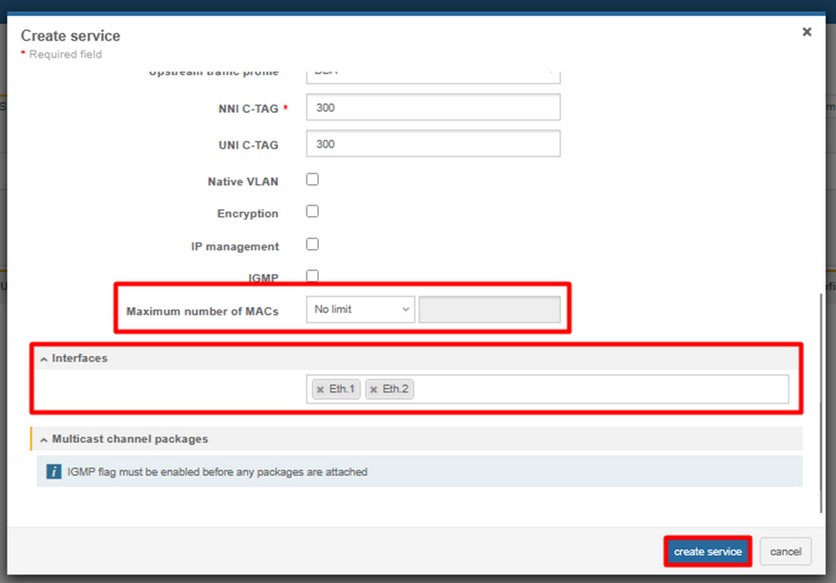

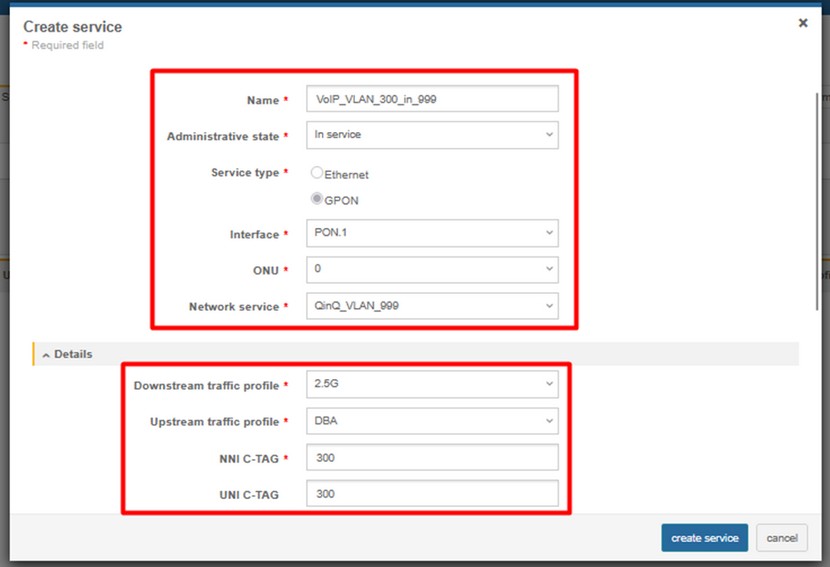

VoIP (C-VLAN 300)
MGMT (C-VLAN 400)
6. Service scenario – TRANSPARENT QinQ
Attention: Following configuration example is based on the HL-2BV model, which features 2 LAN ports, 1 POTS port. Adjust the configuration/services as needed to suit your ONT model.
1. Create ONT profile on OLT:
Click on the image to enlarge it.
(CONFIGURATIONS > GENERIC > EQUIPMENT MODELS > CREATE MODEL)
- NAME – name of the ONT profile (e.g HL-2BV)
- VENDOR – HALNy
- MODEL – model of the ONT
- ADMINISTRATIVE STATE – switch to IN SERVICE,
- ETH – put exact number of ETH ports of the ONT (HL-2BV used in this example has 2 ETH ports)
- PON – 1
- RF – in case ONT is equipped with RF port (HL-2BV used in this example has no RF port)
- VoIP - put exact number of POTS ports of the ONT (HL-2BV used in this example has 1 POTS port)2. Add ONT to GPON port (RESOURCES > ONUs)
3. Create DBA profile (CONFIGURATIONS > PON > PON DBA PROFILES)
4. Create Ethernet bandwidth profile (CONFIGURATIONS > ETHERNET > ETHERNET BANDWIDTH PROFILE)
NOTE: HL-2BV has one ETH 2.5G port, so there is need to setup ethernet bandwidth profile with higher EIR value than in profile named *1G* to match ETH 2.5G bandwidth.
5. Add Network services (VLANs) you need (RESOURCES > SERVICES > NETWORK SERVICES).
6. Add Client services (C-VLANs) to your ONU. (RESOURCES > SERVICES > CLIENT SERVICES)

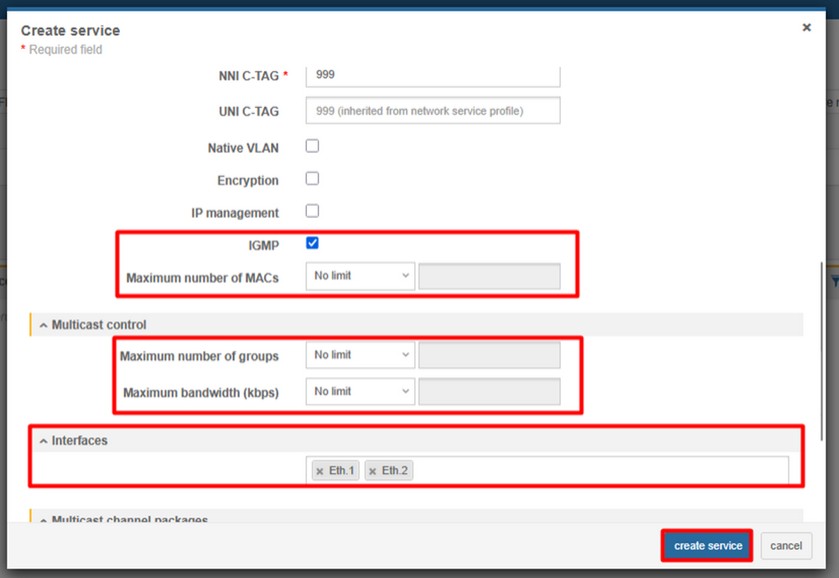

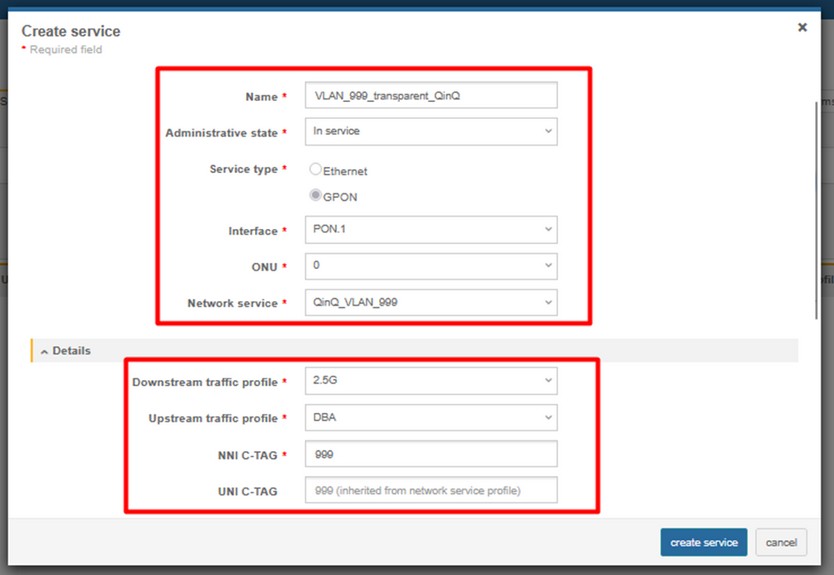

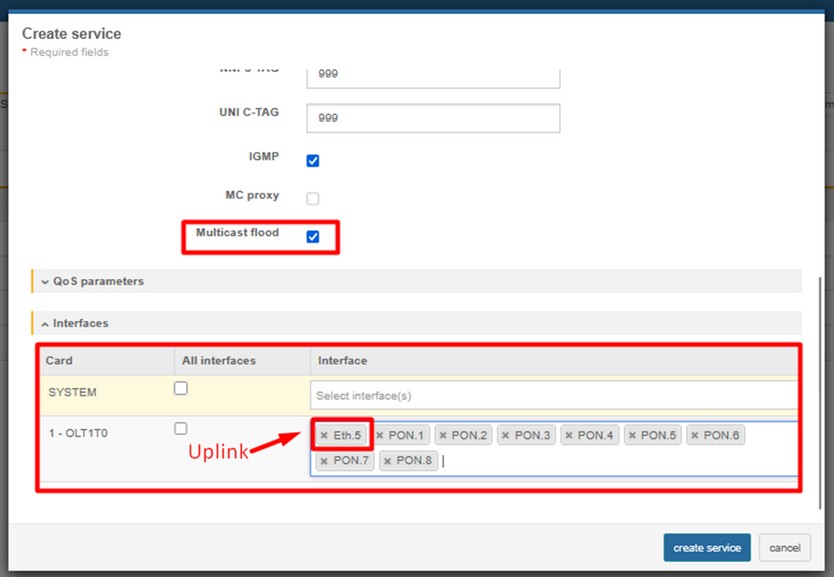

S-VLAN 999 transparent passthrough
MGMT (C-VLAN 400 in S-VLAN 999)
7. Service scenario – OSE/Md0
Attention: Following configuration example is based on the HL-2BV model, which features 2 LAN ports, 1 POTS port. Adjust the configuration/services as needed to suit your ONT model.
1. Create ONT profile on OLT:
Click on the image to enlarge it.
(CONFIGURATIONS > GENERIC > EQUIPMENT MODELS > CREATE MODEL)
- NAME – name of the ONT profile (e.g HL-2BV)
- VENDOR – HALNy
- MODEL – model of the ONT
- ADMINISTRATIVE STATE – switch to IN SERVICE,
- ETH – put exact number of ETH ports of the ONT (HL-2BV used in this example has 2 ETH ports)
- PON – 1
- RF – in case ONT is equipped with RF port (HL-2BV used in this example has no RF port)
- VoIP - put exact number of POTS ports o2. Add ONT to GPON port (RESOURCES > ONUs)
3. Create DBA profile (CONFIGURATIONS > PON > PON DBA PROFILES)
4. Create Ethernet bandwidth profile (CONFIGURATIONS > ETHERNET > ETHERNET BANDWIDTH PROFILE)
NOTE: HL-2BV has one ETH 2.5G port, so there is need to setup ethernet bandwidth profile with higher EIR value than in profile named *1G* to match ETH 2.5G bandwidth.
5. Add Network services (VLANs) you need (RESOURCES > SERVICES > NETWORK SERVICES).
6. Add Client services (C-VLANs) to your ONU. (RESOURCES > SERVICES > CLIENT SERVICES)

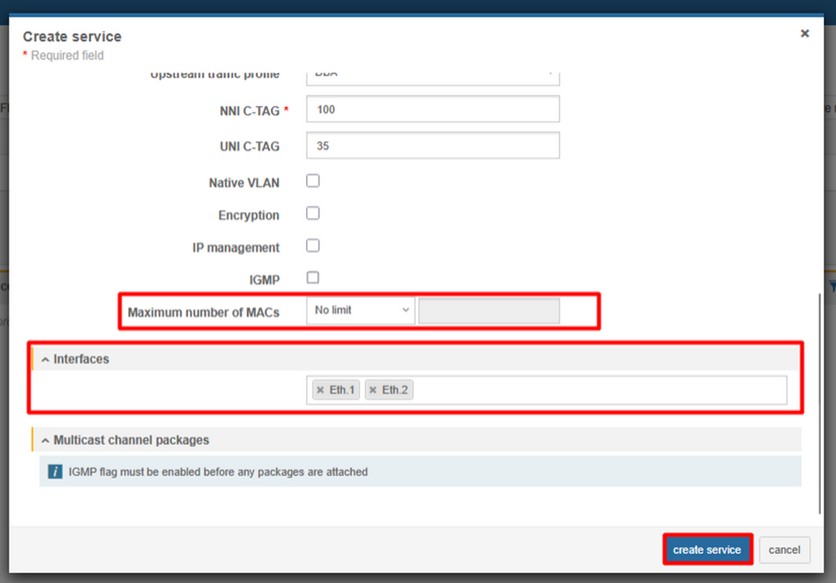

INTERNET (Translated C-VLAN 35 (100) in S-VLAN 999)

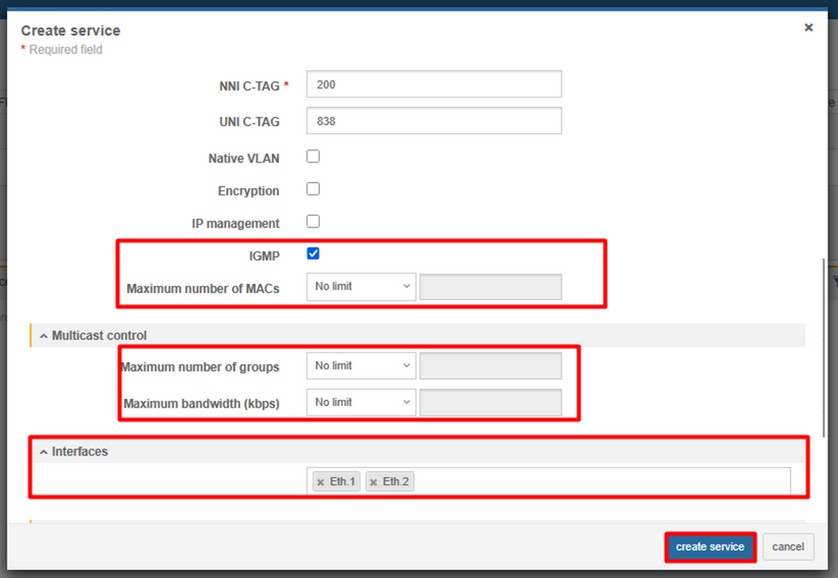

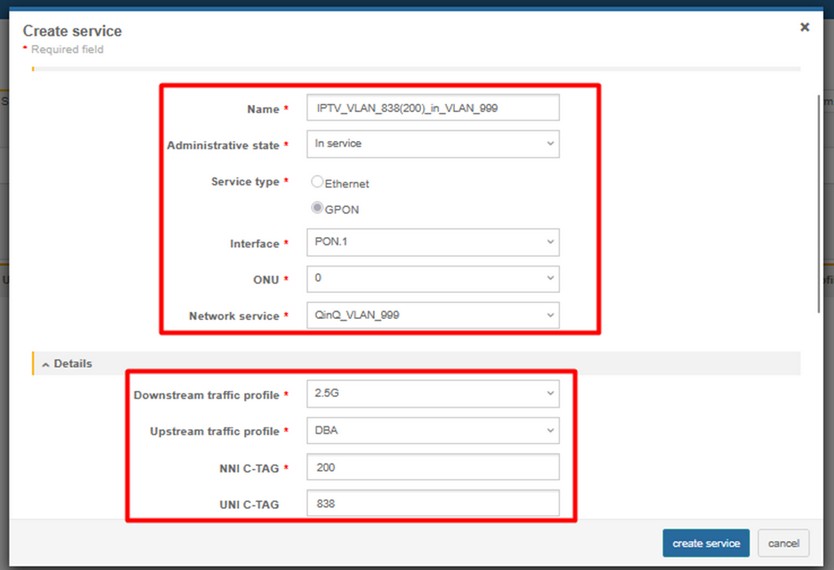

IPTV (Translated C-VLAN 838 (200) in S-VLAN 999)

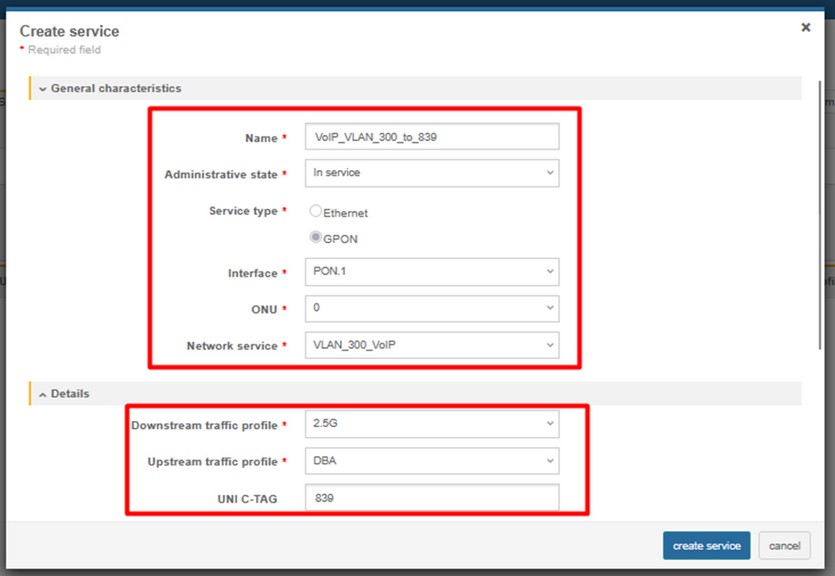

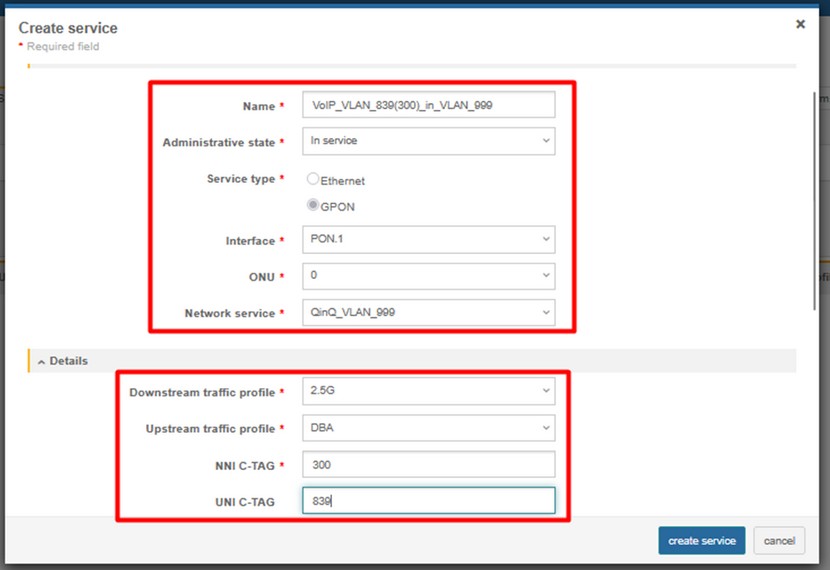

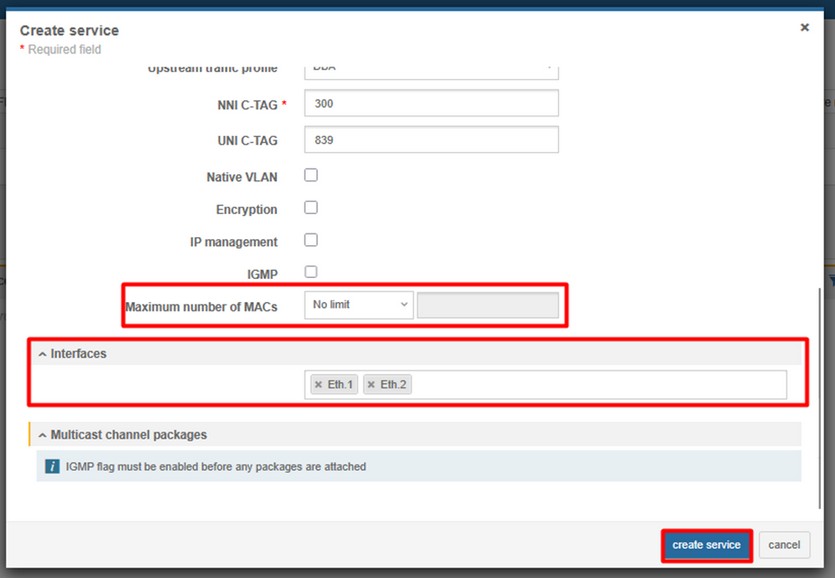

VOIP (Translated C-VLAN 839 (300) in S-VLAN 999)
MGMT – VLAN 400
ONT Managment
Note: Most provisioning and upgrade options below require ONT to have a valid IP Host setup. For detailed information regarding IP Host click here.
| Method | Configuration | Upgrade |
| Rest API V2 | [Example] | – |
| XML Provisioning [DHCP 66/67, WEB] | [Example] | – |
| OTT | – | [Example] |
| OLT CLI | – | [Example] |
| TR-069 [DHCP 43] | [Example] | [Example] |
| WEB | [Example] | [Example] |
