[ALTICE] OLT1T0 OLT Integration with HALNy HGU
HALNy Integration
Supported HGU service scenarios
1. ONT configuration (Bridge access/Router NAT/PPPoE – INTERNET, IPTV, VoIP)
Attention: Following configuration example is based on the HL-4GX3VR model, which features 4 LAN ports, 1 POTS port 1 RF port. Adjust the configuration/services as needed to suit your ONT model.
1.Create ONT profile on OLT:
Click on the image to enlarge it.

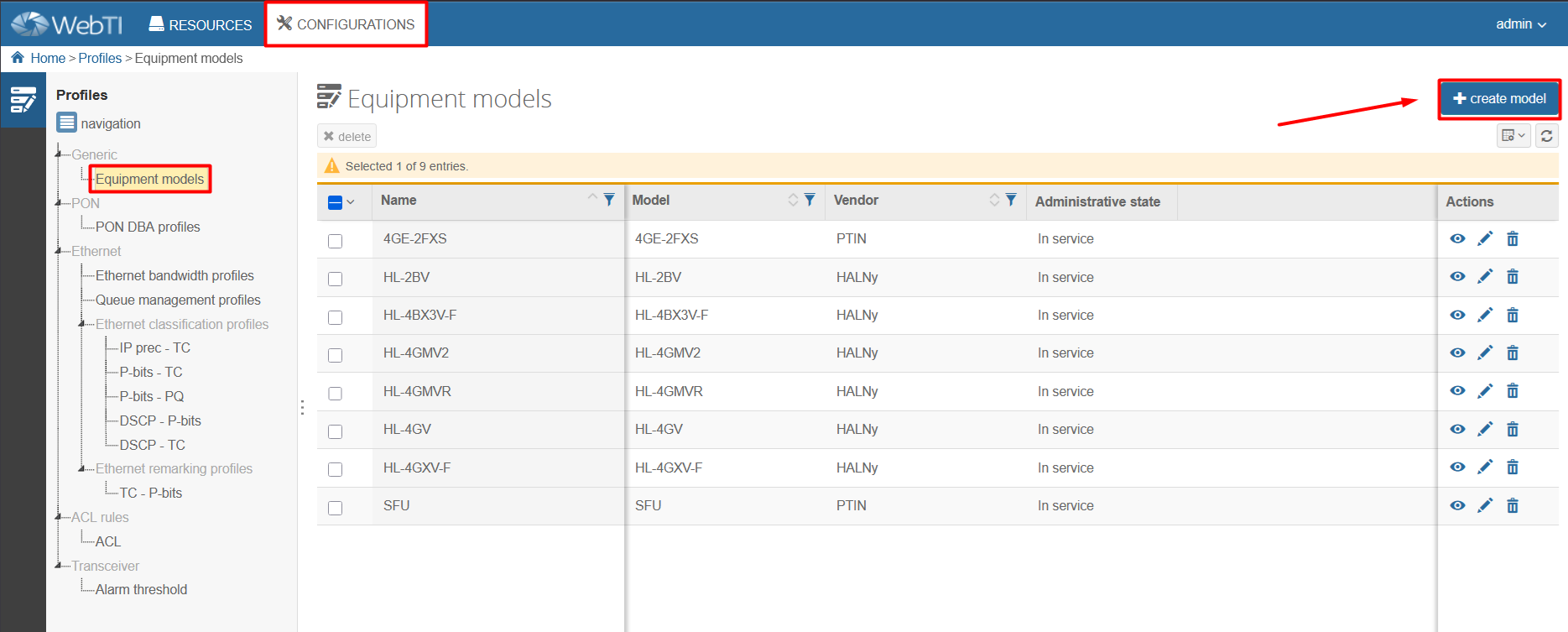

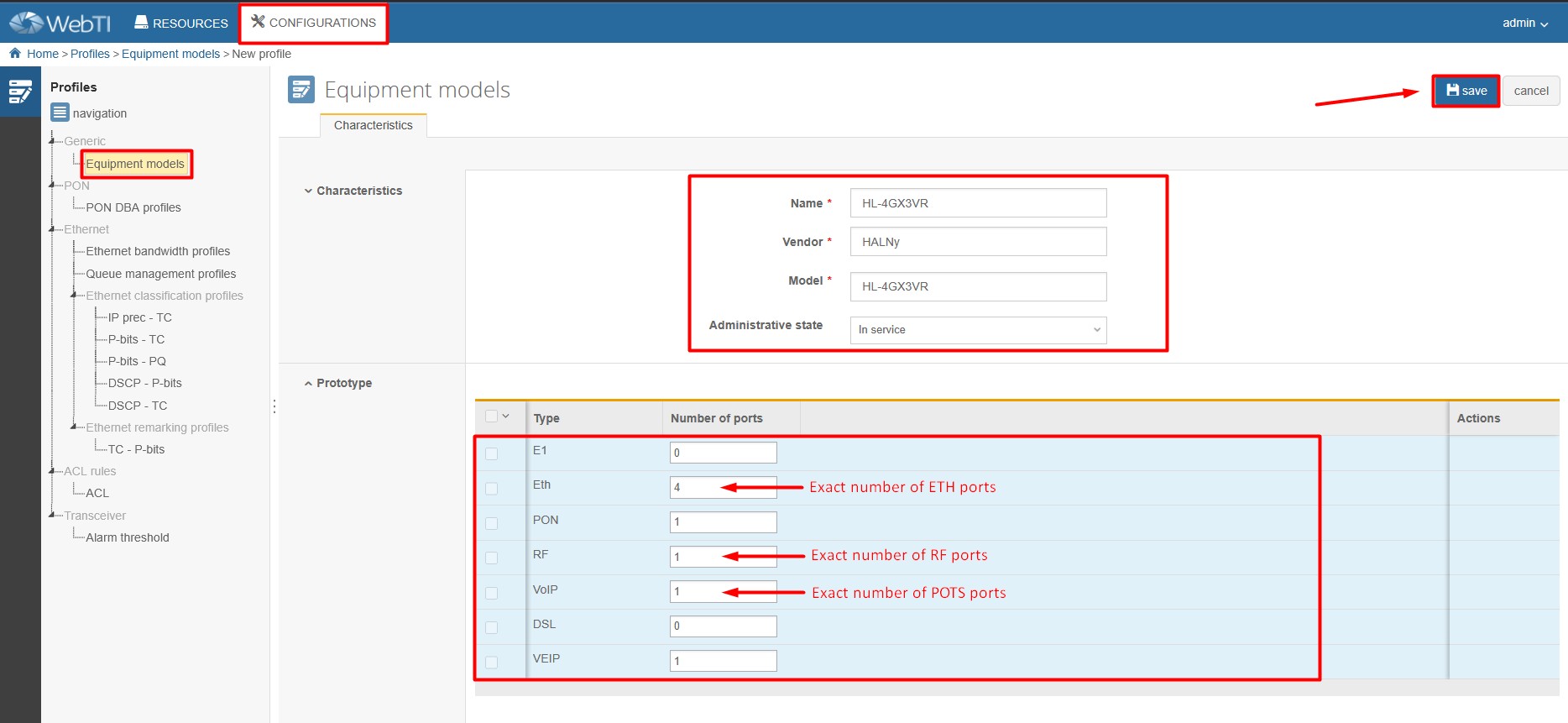

(CONFIGURATIONS > GENERIC > EQUIPMENT MODELS > CREATE MODEL)
- NAME – name of the ONT profile (e.g HL-4GX3VR)
- VENDOR – HALNy
- MODEL – model of the ONT
- ADMINISTRATIVE STATE – switch to IN SERVICE
- ETH – put exact number of ETH ports of the ONT
- PON – 1
- RF – in case ONT is equipped with RF port
- VoIP - put exact number of POTS ports of the ONT
- VEIP – 1

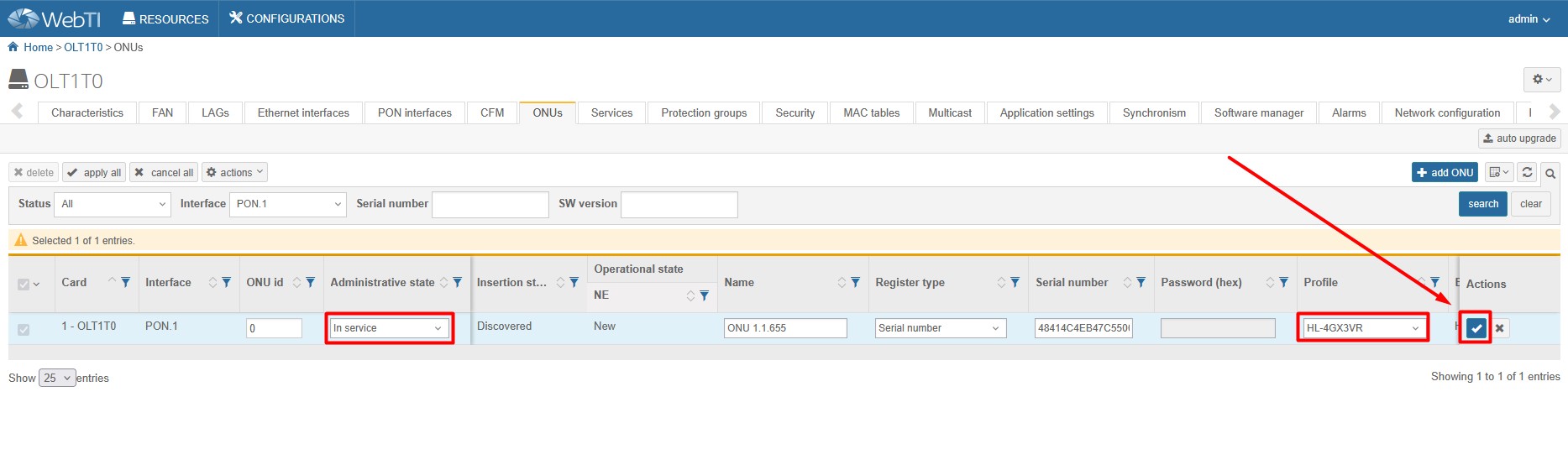

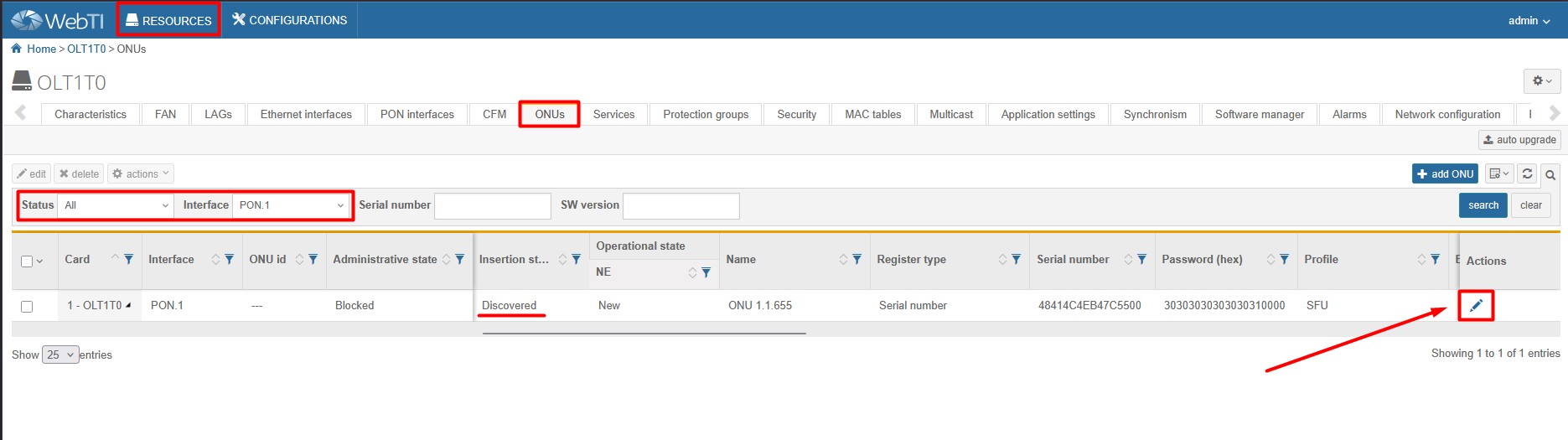

2. Add ONT to GPON port (RESOURCES > ONUs > ADD ONU)
3. Create DBA profile (CONFIGURATIONS > PON > PON DBA PROFILES)

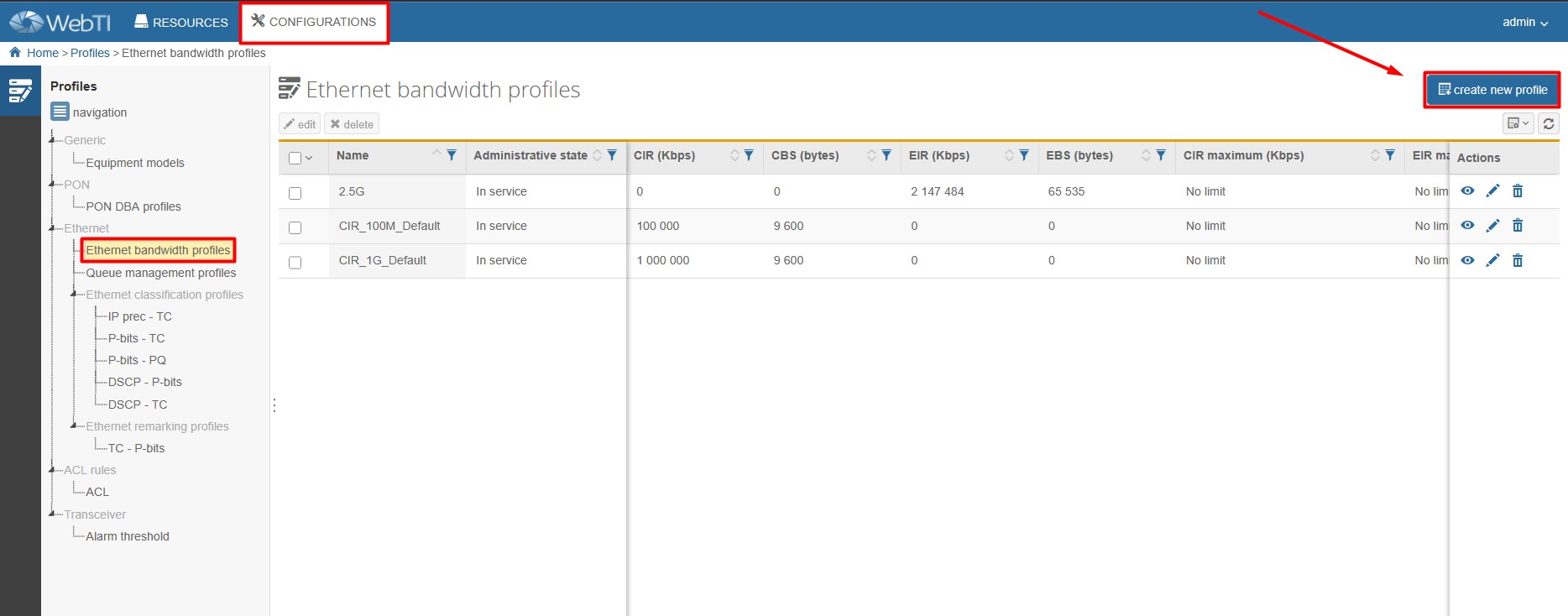

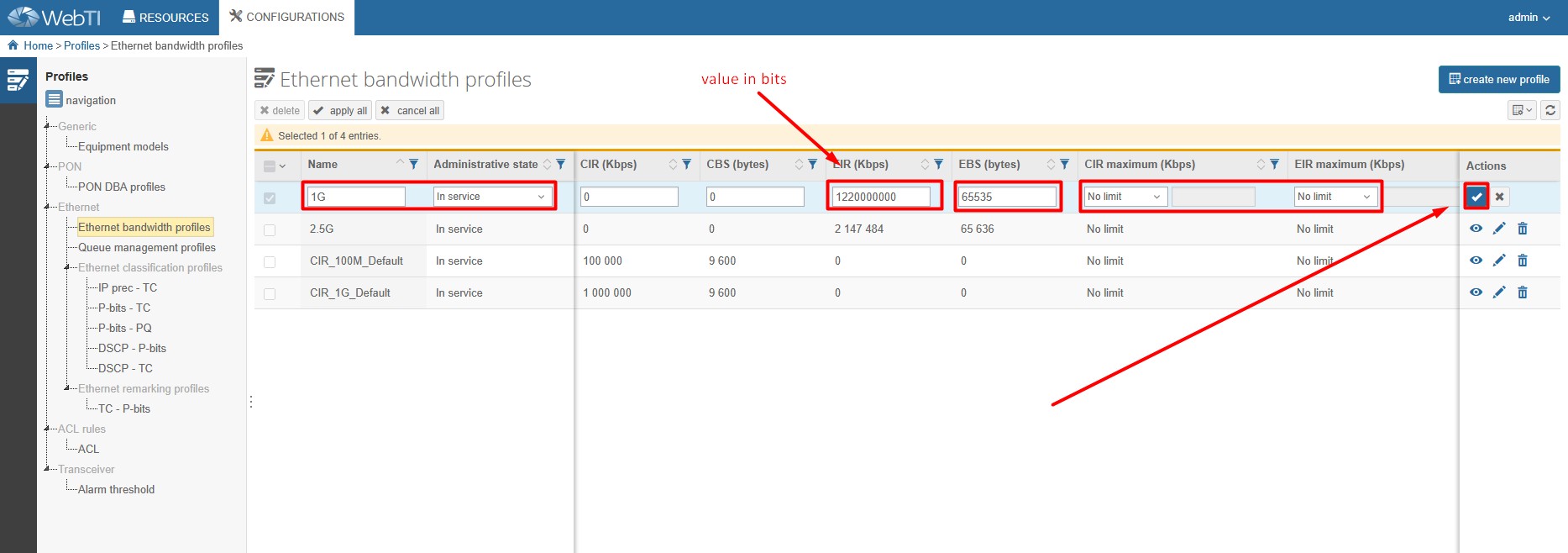

4. Create Ethernet bandwidth profile (CONFIGURATIONS > ETHERNET > ETHERNET BANDWIDTH PROFILE)
5. Add Network services (VLANs) you need (RESOURCES > SERVICES > NETWORK SERVICES)
INTERNET – VLAN 100
MULTICAST – VLAN 200
VoIP – VLAN 300
MGMT – IP host – VLAN 400 (Optional)
Final result of configured network services should look like below:
6. Add Client services to your ONU. (RESOURCES > SERVICES > CLIENT SERVICES)

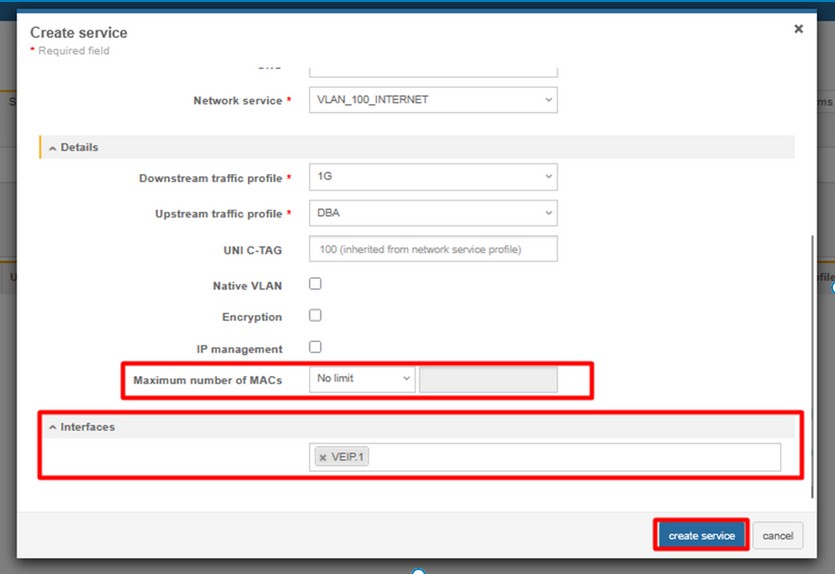

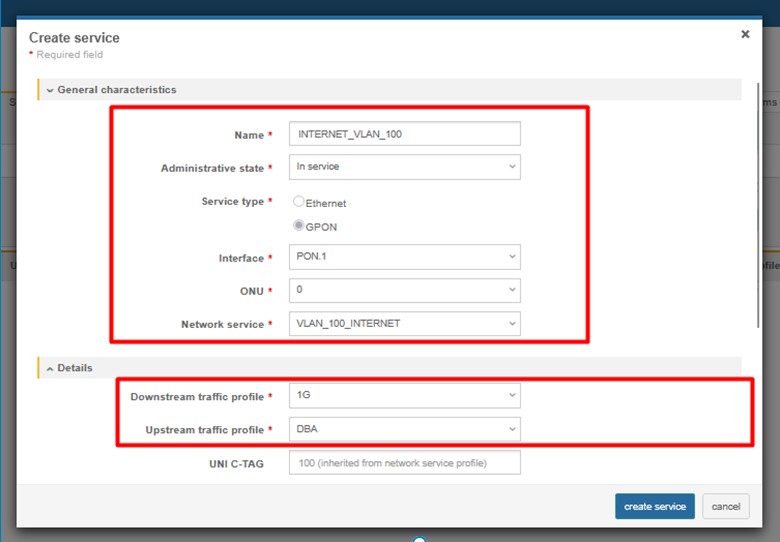

INTERNET

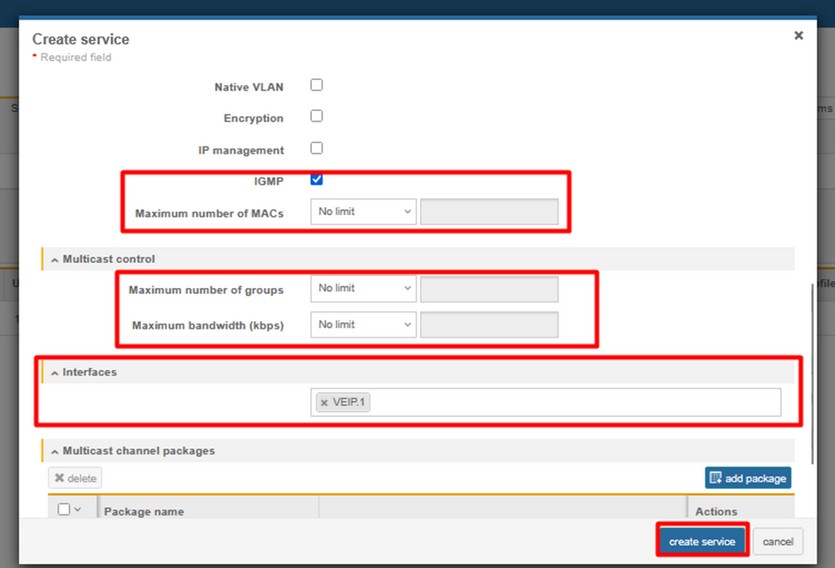

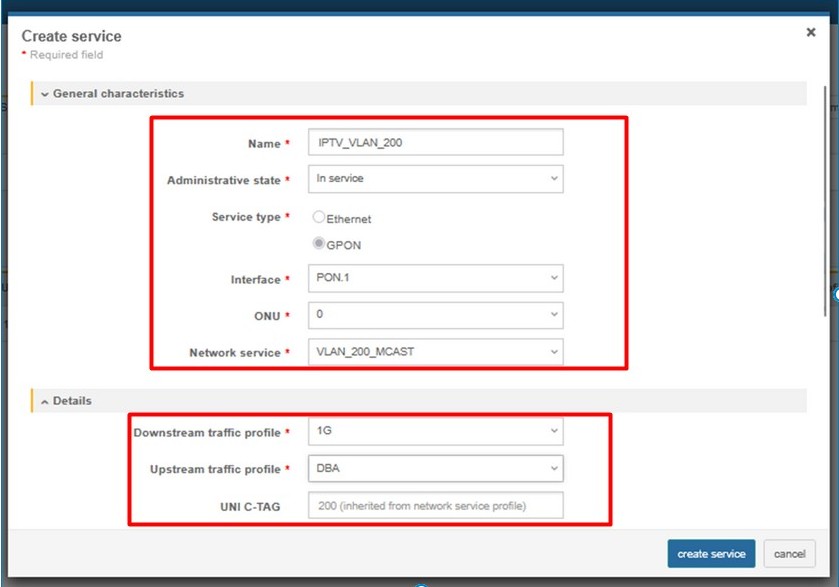

IPTV

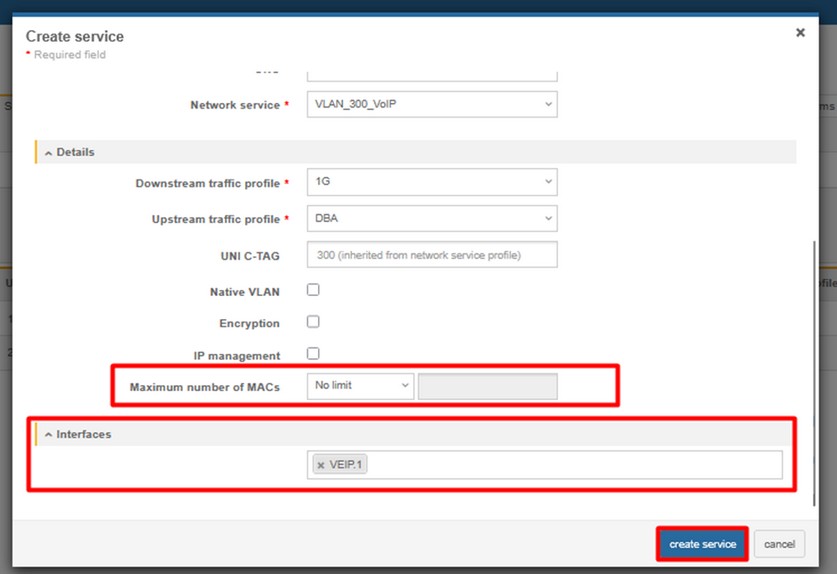

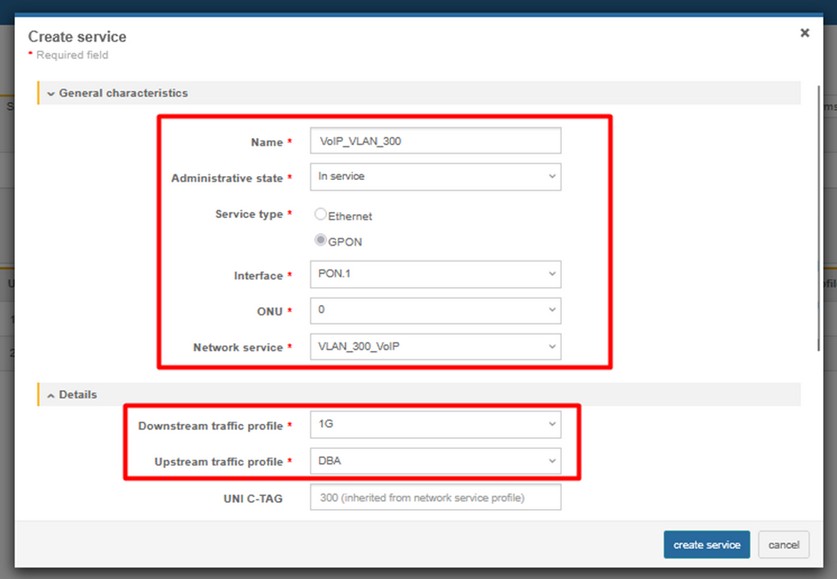

VoIP
MGMT – IP HOST (Optional)

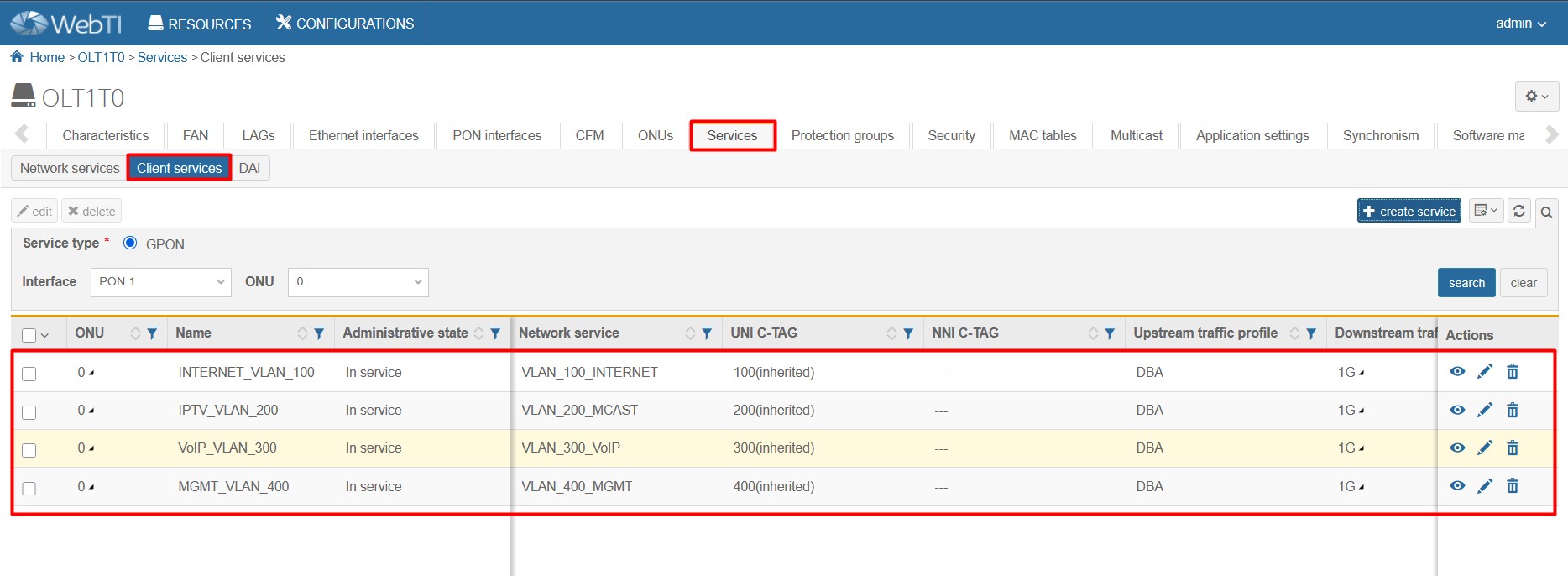

Final result of configured client services should look like below:

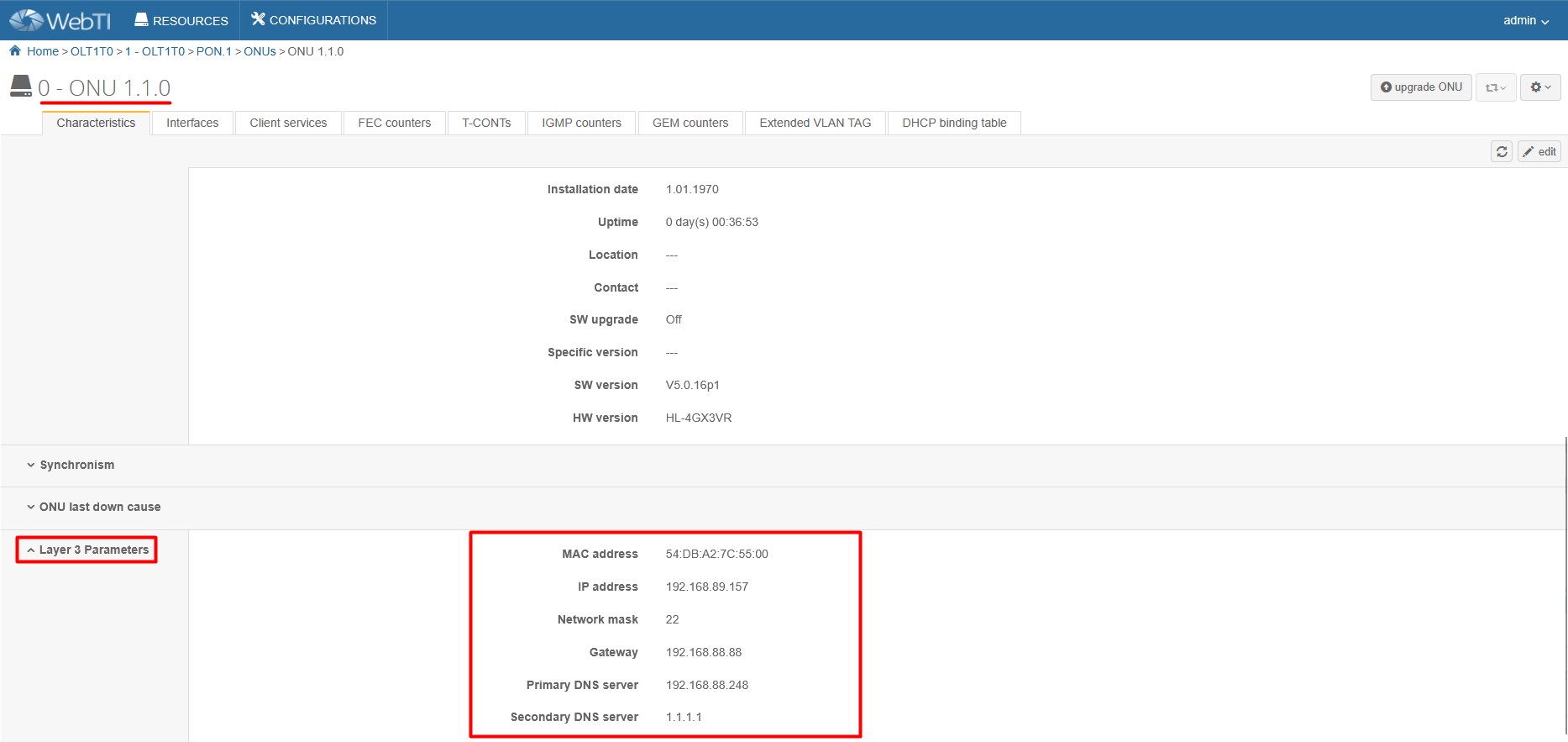

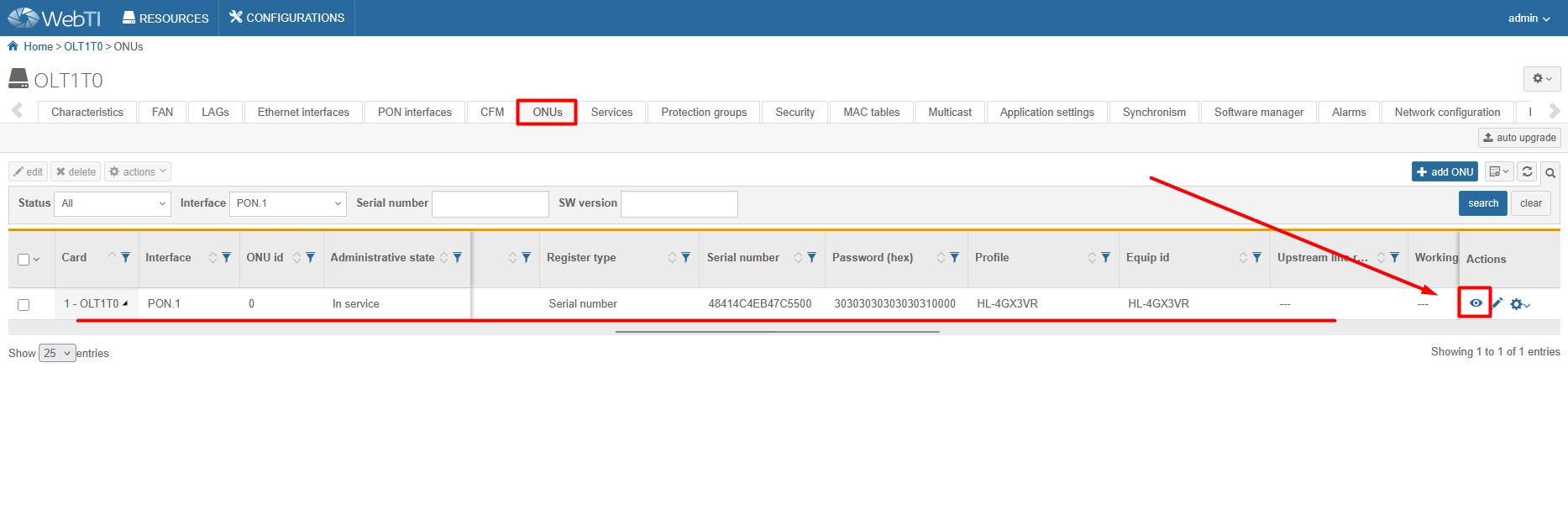

7. (Optional) Check if ONT gets ip address on IP-HOST interface
2. ONT configuration (Bridge access/Router NAT/PPPoE – INTERNET, IPTV, VoIP) with Translation
1.Create ONT profile on OLT :
Click on the image to enlarge it.
(CONFIGURATIONS > GENERIC > EQUIPMENT MODELS > CREATE MODEL)
- NAME – name of the ONT profile (e.g HL-4GX3VR-HGU)
- VENDOR – HALNy
- MODEL – model of the ONT
- ADMINISTRATIVE STATE – switch to IN SERVICE
- ETH – put exact number of ETH ports of the ONT (HL-4GX3VR used in this example has 4 ETH ports)
- PON – 1,RF – in case ONT is equipped with RF port (HL-4GX3VR used in this example has 1 RF port)
- VoIP - put exact number of POTS ports of the ONT (HL-4GX3VR used in this example has 1 POTS port)
- VEIP – 1
2. Add ONT to GPON port (RESOURCES > ONUs > ADD ONU
3. Create DBA profile (CONFIGURATIONS > PON > PON DBA PROFILES)
4. Create Ethernet bandwidth profile (CONFIGURATIONS > ETHERNET > ETHERNET BANDWIDTH PROFILE)
5. Add Network services (VLANs) you need (RESOURCES > SERVICES > NETWORK SERVICES)
INTERNET – VLAN 100
MULTICAST – VLAN 200
VoIP – VLAN 300
MGMT – IP host – VLAN 400 (Optional)
Final result of configured network services should look like below:

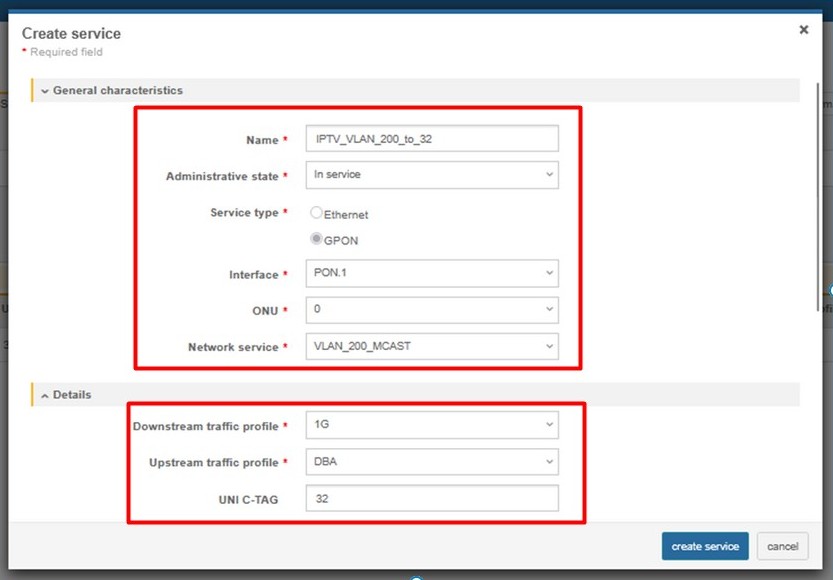

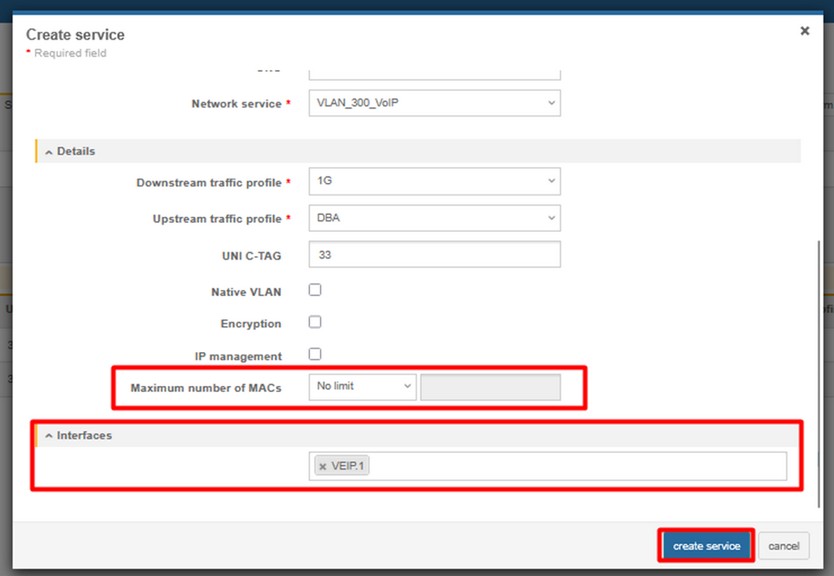

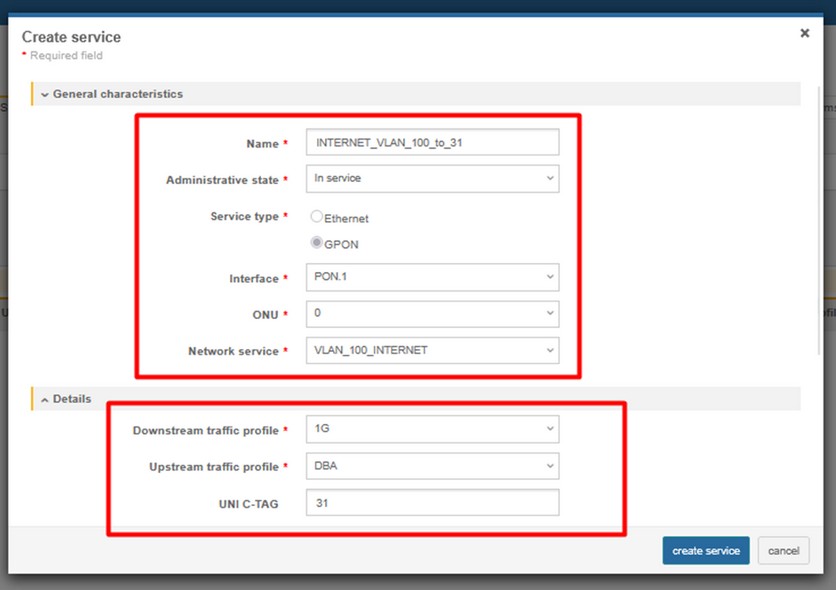

6. Add Client services to your ONU. (RESOURCES > SERVICES > CLIENT SERVICES)

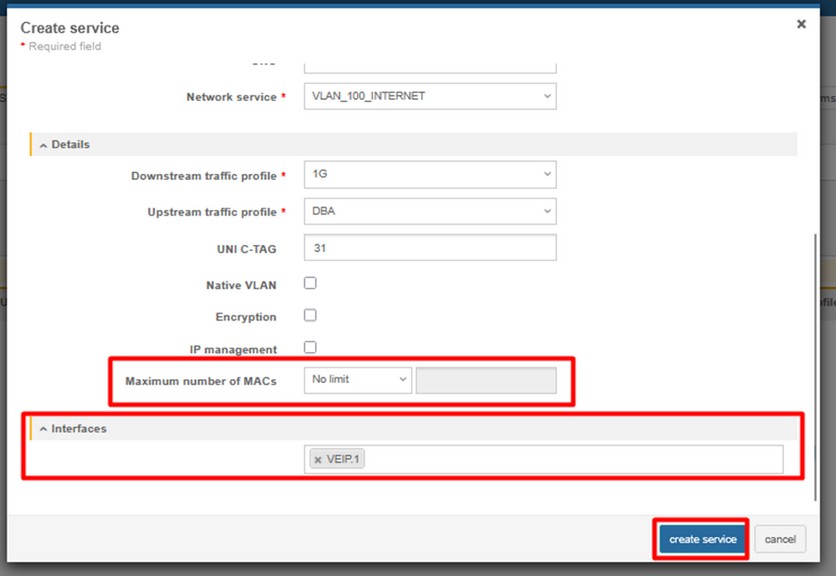

INTERNET

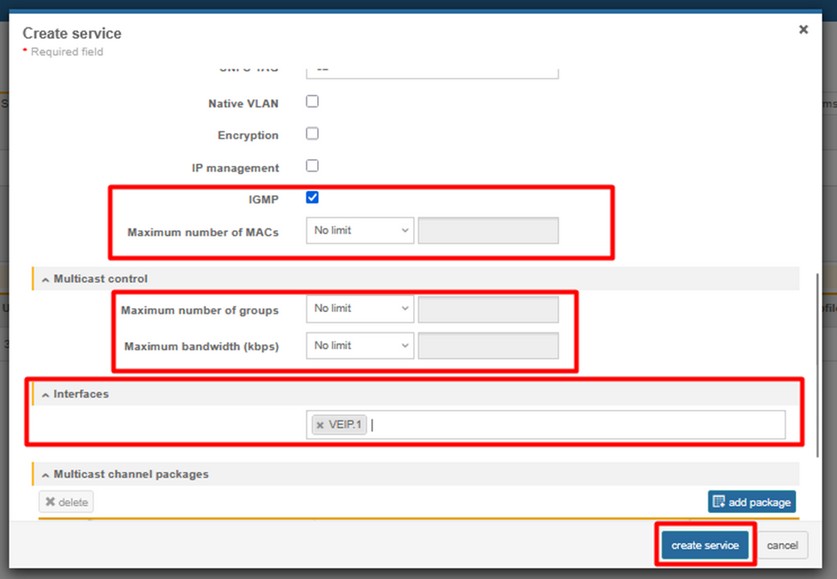

IPTV

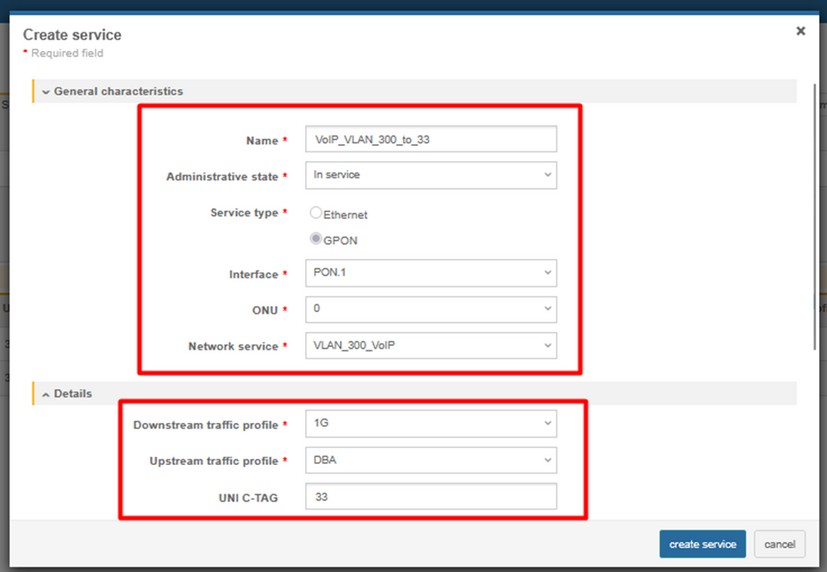

VoIP

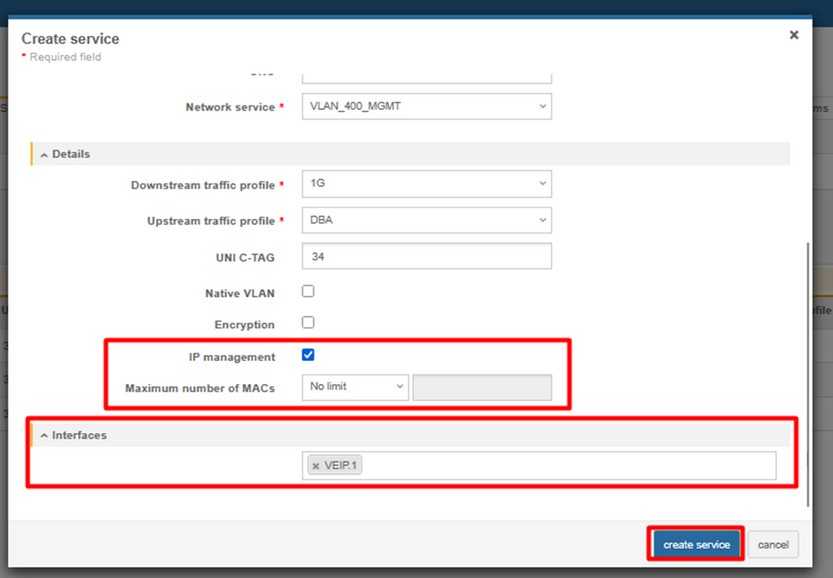

MGMT – IP HOST (optional)

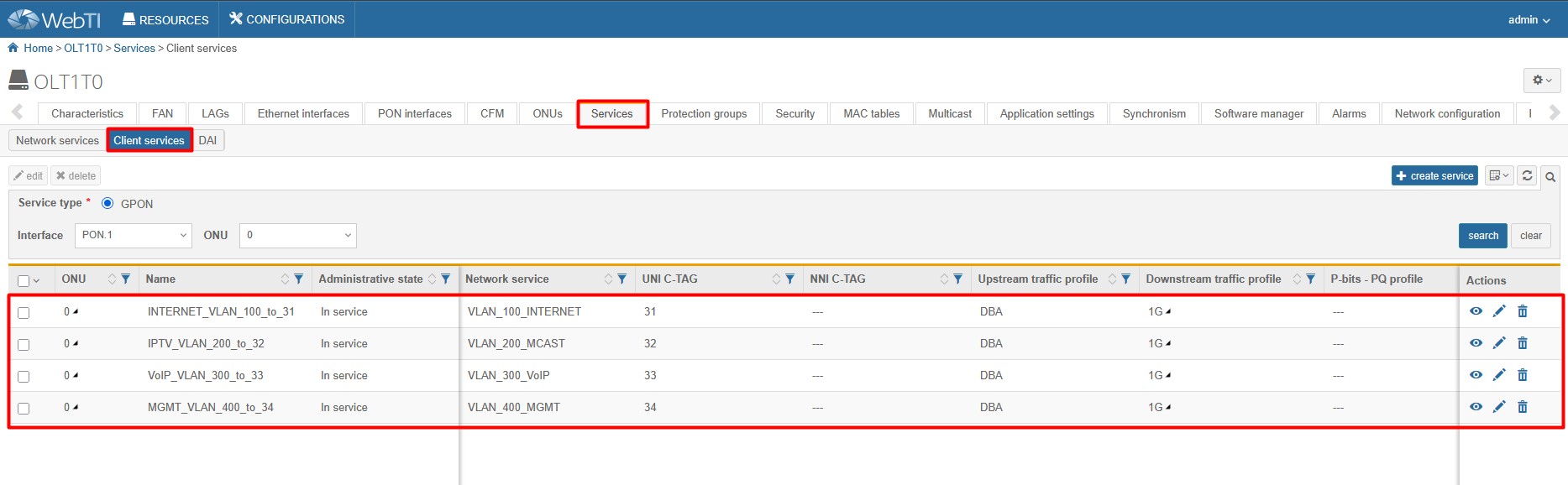

Final result of configured client services should look like below:
7. (Optional) Check if ONT gets ip address on IP-HOST interface
ONT Managment
Note: Most provisioning and upgrade options below require ONT to have a valid IP Host setup. For detailed information regarding IP Host click here.
| Method | Configuration | Upgrade |
| Rest API V2 | [Example] | – |
| XML Provisioning [DHCP 66/67, WEB] | [Example] | – |
| OTT | – | [Example] |
| OLT CLI | – | [Example] |
| TR-069 [DHCP 43] | [Example] | [Example] |
| WEB | [Example] | [Example] |
