[ADTRAN] TA5004 OLT Integration with HALNy SFU 2 LAN

Created On14 July 2025

Last Updated On24 July 2025

byAdrian Puk

HALNy Integration

Supported SFU service scenarios

1. ONT configuration (Access mode, only INTERNET)

ONT was connect to the shelf 1, card 3, GPON port 2 with ONU_ID 2.

Attention: Remeber to enable interfaces using the “no shutdown” command

1.Create Internet and MGMT EVC:

evc "100"
  s-tag 100
  connect men-port ten-gigabit-ethernet 1/B/1
  mac-switched
  no preserve-ce-vlan
  no shutdown

evc "MGMT"
  s-tag 400
  connect men-port ten-gigabit-ethernet 1/B/1
  mac-switched
  no preserve-ce-vlan
  no shutdown

2.Register ONT:

remote-device ont 2@1/3/2.gpon
  description "HL-2BV"
  mac-spoofing-allowed enable
  serial-number "HALN5a6fa578"
  no shutdown

3.Enable interfaces:

LAN1:
interface gigabit-ethernet 2/0/1@1/3/2
  mac limit 8
  no shutdown
LAN2:
interface gigabit-ethernet 2/0/2@1/3/2
  mac limit 8
  no shutdown

4. Enable SFU mode:

Attention: You have to use “shutdown” command for SFU mode.

interface virtual-gigabit-ethernet 2/0/1@1/3/2.gpon
  mac limit 8
  shutdown

5.Configure ONT LAN interfaces:

LAN1:
evc-map "2/0/1@1/3/2.gpon" 1/3
  connect evc "100"
  connect uni gigabit-ethernet 2/0/1@1/3/2
  men-pri 0
  men-c-tag-pri 0
  no shutdown
LAN2:
evc-map "2/0/2@1/3/2.gpon" 1/3
  connect evc "100"
  connect uni gigabit-ethernet 2/0/2@1/3/2
  men-pri 0
  men-c-tag-pri 0
  no shutdown

6.Configure management ip-host:

interface gpon 1/3/2
  subtended-host 2 ip address dhcp
  subtended-host 2 s-tag 400

7.Configure downstream shaper:

shaper "2@1/3/2.gpon" 1/3
  per remote-device 2@1/3/2.gpon queue 0
  rate 1000000
  no shutdown

8.Configure upstream shaper:

shaper "2@1/3/2.gpon-UP" 2@1/3/2.gpon
  per interface gpon 2/0/1@1/3/2.gpon channel 1
  rate 1200000
  gpon channel assured-bandwidth 2500
  gpon channel fixed-bandwidth 0
  no shutdown

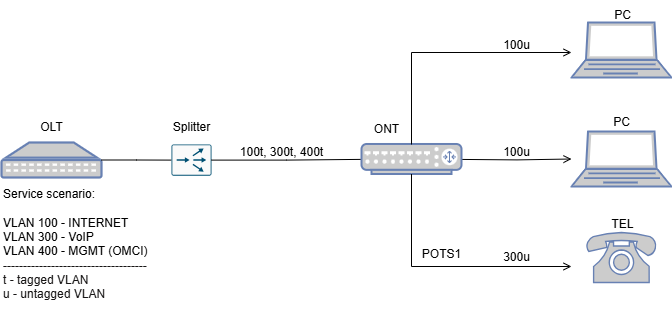

2. ONT configuration (Access mode, INTERNET, IP-HOST, VoIP)

ONT was connect to the shelf 1, card 3, GPON port 2 with ONU_ID 2.

Attention: Remeber to enable interfaces using the “no shutdwon” command

1.Create Internet and MGMT EVC:

evc "100"
  s-tag 100
  connect men-port ten-gigabit-ethernet 1/B/1
  mac-switched
  no preserve-ce-vlan
  no shutdown

evc "MGMT"
  s-tag 400
  connect men-port ten-gigabit-ethernet 1/B/1
  mac-switched
  no preserve-ce-vlan
  no shutdown

2.Create VoIP EVC:

evc "300"
  s-tag 300
  connect men-port ten-gigabit-ethernet 1/B/1
  mac-switched
  no preserve-ce-vlan
  no shutdown

3.Register ONT:

remote-device ont 2@1/3/2.gpon
  description "HL-2BV"
  mac-spoofing-allowed enable
  serial-number "HALN5a6fa578"
  no shutdown

4.Enable interfaces:

LAN1:
interface gigabit-ethernet 2/0/1@1/3/2
  mac limit 8
  no shutdown
LAN2:
interface gigabit-ethernet 2/0/2@1/3/2
  mac limit 8
  no shutdown

5.Enable SFU mode:

Attention: You have to use “shutdown” command for SFU mode.

interface virtual-gigabit-ethernet 2/0/1@1/3/2.gpon
  mac limit 8
  shutdown

6.Configure ONT LAN interfaces:

LAN1:
evc-map "2/0/1@1/3/2.gpon" 1/3
  connect evc "100"
  connect uni gigabit-ethernet 2/0/1@1/3/2
  men-pri 0
  men-c-tag-pri 0
  no shutdown
LAN2:
evc-map "2/0/2@1/3/2.gpon" 1/3
  connect evc "100"
  connect uni gigabit-ethernet 2/0/2@1/3/2
  men-pri 0
  men-c-tag-pri 0
  no shutdown

7.Configure EVC map for VOICE ip-host:

evc-map "1-3-2-2" 1/3
  connect evc "300"
  connect ip-host "1-3-2-2" 2@1/3/2.gpon
  men-pri 5
  men-c-tag-pri 5
  match ce-vlan-id 300
  no shutdown

8.Configure ip-host:

interface gpon 1/3/2
  subtended-host 2 ip address dhcp
  subtended-host 2 s-tag 400

9.Configure downstream shaper:

shaper "2@1/3/2.gpon" 1/3
  per remote-device 2@1/3/2.gpon queue 0
  rate 1000000
  no shutdown

10.Configure upstream shaper:

shaper "2@1/3/2.gpon-UP" 2@1/3/2.gpon
  per interface gpon 2/0/1@1/3/2.gpon channel 1
  rate 1200000
  gpon channel assured-bandwidth 2500
  gpon channel fixed-bandwidth 0
  no shutdown

11.Configure VOIP ip-host:

interface ip-host "1-3-2-2" 2@1/3/2.gpon
  ip address dhcp
  connect service sip
  no shutdown

12.Enable fxs interface:

interface fxs 2/0/1@1/3/2
  no shutdown

13.Enable voice protocol:

voice protocol 2@1/3/2 sip

14.Configure profile codec-list:

voice profile codec-list "SIP_Codec"
  preference 1 codec g729
  preference 2 codec g711alaw
  preference 3 codec g711ulaw

15.Configure profile call-feature:

voice profile call-feature "SIP_CALL"
  feature-mode local

16.Configure profile dial-plan:

voice profile dialing "Default_DIAL_PLAN"
  description ""
  dial-plan local XXX
  dial-plan local XXXX

17.Configure profile media:

voice profile media "SIP_MEDIA"
  rtp local-port 50000-60000

18.Configure sip-trunk:

voice sip-trunk T01
  sip proxy primary IP.IP.IP.IP
  sip registrar primary IP.IP.IP.IP
  sip registrar expire-time 560
  domain ""
  sip grammar request-uri host-resolve

19.Configure sip user:

voice user sip 2/0/1@1/3/2
  description "9999"
  connect fxs 2/0/1@1/3/2
  connect profile codec-list "SIP_CODEC"
  connect profile call-feature "SIP_CALL"
  connect profile dial-plan "Default_DIAL_PLAN"
  connect profile media "SIP_MEDIA"
  identity "9999"
  sip-trunk "T01"
  auth-name "9999"
  password "123456789"
  no shutdown

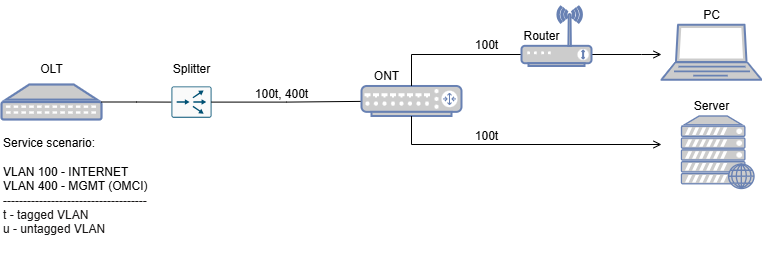

3. ONT configuration (TRANSPARENT mode, only INTERNET)

ONT was connect to the shelf 1, card 3, GPON port 2 with ONU_ID 2.

Attention: Remeber to enable interfaces using the “no shutdwon” command

Create Internet and MGMT EVC:

evc "100"
  s-tag 100
  connect men-port ten-gigabit-ethernet 1/B/1
  mac-switched
  no preserve-ce-vlan
  no shutdown

evc "MGMT"
  s-tag 400
  connect men-port ten-gigabit-ethernet 1/B/1
  mac-switched
  no preserve-ce-vlan
  no shutdown

2. Register ONT:

remote-device ont 2@1/3/2.gpon
  description "HL-2BV"
  mac-spoofing-allowed enable
  serial-number "HALN5a6fa578"
  no shutdown

3. Enable interfaces:

LAN1:
interface gigabit-ethernet 2/0/1@1/3/2
  mac limit 8
  no shutdown
LAN2:
interface gigabit-ethernet 2/0/2@1/3/2
  mac limit 8
  no shutdown

4. Enable SFU mode:

Attention: You have to use “shutdown” command for SFU mode.

interface virtual-gigabit-ethernet 2/0/1@1/3/2.gpon
  mac limit 8
  shutdown

5.Configure ONT LAN interfaces:

LAN1:
evc-map "2/0/1@1/3/2.gpon" 1/3
  connect evc "100"
  connect uni gigabit-ethernet 2/0/1@1/3/2
  match ce-vlan-id 100
  men-pri 0
  men-c-tag-pri 0
  no shutdown
LAN2:
evc-map "2/0/2@1/3/2.gpon" 1/3
  connect evc "100"
  connect uni gigabit-ethernet 2/0/2@1/3/2
  match ce-vlan-id 100
  men-pri 0
  men-c-tag-pri 0
  no shutdown

6.Configure management ip-host:

interface gpon 1/3/2
  subtended-host 2 ip address dhcp
  subtended-host 2 s-tag 400

7.Configure downstream shaper:

shaper "2@1/3/2.gpon" 1/3
  per remote-device 2@1/3/2.gpon queue 0
  rate 1000000
  no shutdown

8.Configure upstream shaper:

shaper "2@1/3/2.gpon-UP" 2@1/3/2.gpon
  per interface gpon 2/0/1@1/3/2.gpon channel 1
  rate 1200000
  gpon channel assured-bandwidth 2500
  gpon channel fixed-bandwidth 0
  no shutdown

ONT Managment

Note: Most provisioning and upgrade options below require ONT to have a valid IP Host setup. For detailed information regarding IP Host click here.

Method	Configuration	Upgrade
Rest API V2	[Example]	–
XML Provisioning [DHCP 66/67, WEB]	[Example]	–
OTT	–	[Example]
OLT CLI	–	–
TR-069 [DHCP 43]	[Example]	[Example]
WEB	[Example]	[Example]
