REST API v2 Triple play (Internet, IPTV, VoIP)

Created On30 May 2025

Last Updated On30 May 2025

byJakub Surowiec

REST API v2 Provisioning

Document date	2025.05.27
Tested with ONT HALNy HL-4GMV2/3/4, HL-4GQV / HL-4GQVS / HL-4GQVS2, HL-4GXV / HL-4GXV-F	Supported on Version: V3.2.42 or above
Tested with ONT HALNy: HL-1B, HL-2BV, HL-4G2	Supported on Version: V4.0.7 or above
Tested with ONT HALNy: HL-4BX3V-F, HL-4GX3VR	Supported on Version: V5.0.9 or above

How to run

configure IP-host interface for ONT and check IP-HOST-ADDRESS
send an HTTP request to API interface on port 48626
select proper endpoint to read/write/delete

http://IP-HOST-ADDRESS:48626/api/v2/endpoint

Username: apiuser
Password: <4lastMacCharacters>APIpass

Full REST API v2 documentation can be found here

Example of configuration using POSTMAN:

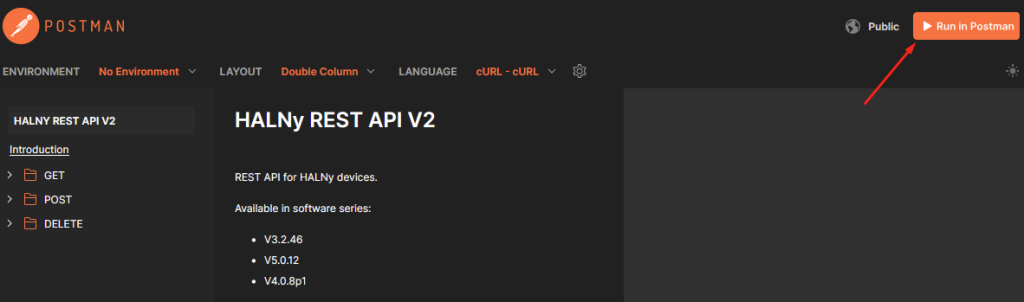

1. You can import our documentation straight to Postman, using Run in Postman button:

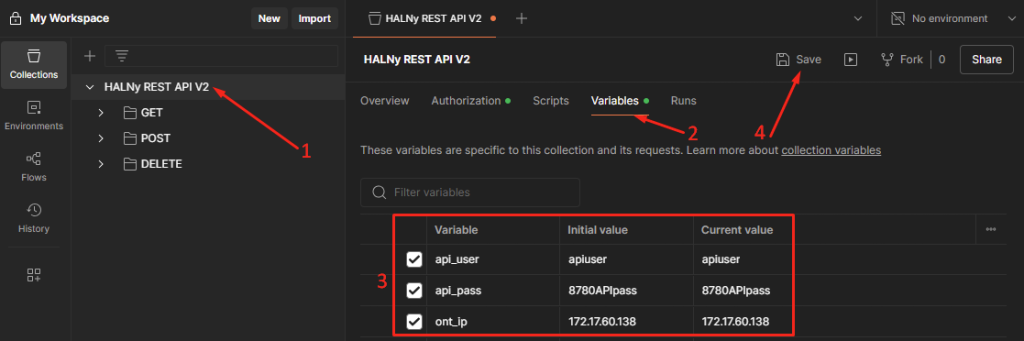

2. Next, define the api_user, api_pass and ont_ip variables, setting them as the Username, Password and ONT’s ip-host address:

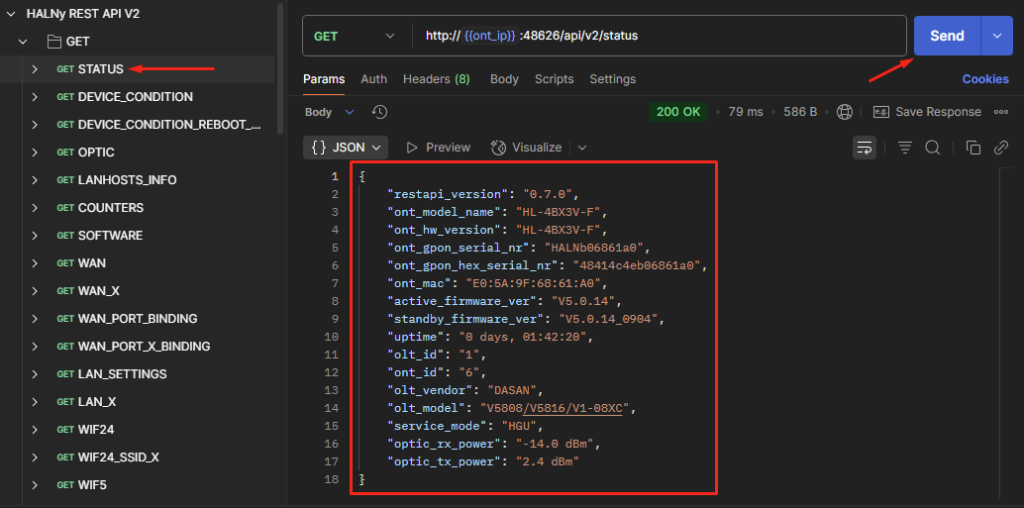

3. After that, you can successfully send POST and GET requests using POSTMAN.

Example of configuration using cURL:

Variables:
Username: apiuser
Password: 8780APIpass
ONT ip-host address: 172.17.60.138
Endpoint: /wan/1

GET Request:

curl -u apiuser:8780APIpass http://172.17.60.138:48626/api/v2/wan/1

POST Request:

curl -u apiuser:8780APIpass http://172.17.60.138:48626/api/v2/wan/1 \
 -H "Content-Type: application/json" \
 --data '{
    "enabled":"yes",
    "conn_type":"DHCP",
    "mode":"router",
    "service_type":"internet",
    "ip_version":"ipv4",
    "dot1q":"tag",
    "vlan_id":"400",
    "cos":"0",
    "nat_enable":"yes",
}'

Triple play (Internet, IPTV, VoIP) ONT configuration

NOTE:
After each change, you must apply the settings using the dedicated apply node.

Router Mode – INTERNET

1. Configuration

URL:

http://{{ont_ip}}:48626/api/v2/wan/1

JSON:

{
    "enabled":"yes",
    "conn_type":"DHCP",
    "mode":"router",
    "service_type":"internet",
    "ip_version":"ipv4",
    "dot1q":"tag",
    "vlan_id":"400",
    "cos":"0",
    "nat_enable":"yes"
}

2. Apply changes

URL:

http://{{ont_ip}}:48626/api/v2/wan/1/apply

JSON:

{
    "apply":"yes"
}

Bridge Mode – IPTV

1. Configuration

URL:

http://{{ont_ip}}:48626/api/v2/wan/2

JSON:

{
    "enabled":"yes",
    "conn_type":"bridge",
    "mode":"bridge",
    "service_type":"other",
    "ip_version":"ipv4",
    "dot1q":"tag",
    "vlan_id":"200",
    "cos":"5"
}

2. Apply changes

URL:

http://{{ont_ip}}:48626/api/v2/wan/2/apply

JSON:

{
    "apply":"yes"
}

Router Mode – VOICE

1. Configuration

URL:

http://{{ont_ip}}:48626/api/v2/wan/3

JSON:

{
    "enabled":"yes",
    "conn_type":"dhcp",
    "mode":"router",
    "service_type":"voip",
    "ip_version":"ipv4",
    "dot1q":"tag",
    "vlan_id":"100",
    "cos":"6"
}

2. Apply changes

URL:

http://{{ont_ip}}:48626/api/v2/wan/3/apply

JSON:

{
    "apply":"yes"
}

Port binding

NOTE:
LAN 2.5G port mapping depends on the device model:
HL-1B – LAN1
HL-2BV – LAN2
HL-4BX3V-F – LAN4

1. Configuration

Binding WAN1 to LAN1, LAN2, Wi-Fi2.4G, Wi-Fi5G:

URL:

http://{{ont_ip}}:48626/api/v2/wan/1/port_bind

JSON:

{
   "lan1":"yes",
   "lan2":"yes",
   "lan3":"no",
   "lan4":"no",
   "wifi24_ssid1":"yes",
   "wifi5_ssid1":"yes"
}

Binding WAN2 to LAN3, LAN4:

URL:

http://{{ont_ip}}:48626/api/v2/wan/2/port_bind

JSON:

{
   "lan1":"no",
   "lan2":"no",
   "lan3":"yes",
   "lan4":"yes",
   "wifi24_ssid1":"no",
   "wifi5_ssid1":"no"
}

2. Apply changes

URL:

http://{{ont_ip}}:48626/api/v2/wan/1/apply
http://{{ont_ip}}:48626/api/v2/wan/2/apply

JSON:

{
    "apply":"yes"
}

VoIP POTS configuration

1. Configuration

URL:

http://{{ont_ip}}:48626/api/v2/voip

JSON:

{
    "register_server": "10.192.168.149",
    "register_port":"5060"
}

URL:

http://{{ont_ip}}:48626/api/v2/voip/line/1

JSON:

{
    "enable": "yes",
    "login":"1100",
    "password":"1100",
    "display_name":"test_voip"
}

2. Apply changes

URL:

http://{{ont_ip}}:48626/api/v2/voip/apply

JSON:

{
    "apply":"yes"
}

LAN configuration change

1. Configuration

URL:

http://{{ont_ip}}:48626/api/v2/lan

JSON:

{
    "dhcp_enable":"yes",
    "ip": "192.168.99.1",
    "netmask": "255.255.255.0",
    "dhcp_lease_time":"7200",
    "dhcp_start_ip":"192.168.99.100",
    "dhcp_end_ip":"192.168.99.120",
    "dns_proxy_type": "manual",
    "dns_primary":"192.168.123.1"
}

2. Apply changes

URL:

http://{{ont_ip}}:48626/api/v2/lan/apply

JSON:

{
    "apply":"yes"
}

Wi-Fi 2.4 GHz Configuration

1. Configuration

URL:

http://{{ont_ip}}:48626/api/v2/wlan24

JSON:

{
    "enable": "yes",
    "mode": "802.11g/n/ax",
    "country": "POLAND",
    "channel": "13",
    "channel_selection": "manual",
    "channel_width": "40MHz",
    "tx_power": "100",
    "min_rssi_sta_connect": "-80",
    "min_rssi_sta_disconnect":"-85"
}

2. Apply changes

URL:

http://{{ont_ip}}:48626/api/v2/wlan24/apply

JSON:

{
    "apply":"yes"
}

Wi-Fi 2.4 GHz SSID 1 Configuration

1. Configuration

URL:

http://{{ont_ip}}:48626/api/v2/wlan24/ssid/1

JSON:

{
    "prefix":"TEST-",
    "ssid_name":"SSID-1",
    "security":"WPA2/WPA3 Personal",
    "encryption":"AES",
    "password":"wifipass"
}

2. Apply changes

URL:

http://{{ont_ip}}:48626/api/v2/wlan24/apply

JSON:

{
    "apply":"yes"
}

Wi-Fi 5 GHz Configuration

1. Configuration

URL:

http://{{ont_ip}}:48626/api/v2/wlan5

JSON:

{
    "enable": "yes",
    "mode": "802.11n/ac/ax",
    "country": "POLAND",
    "channel": "64",
    "channel_selection": "manual",
    "channel_width": "40MHz",
    "tx_power": "60",
    "dfs_enable":"yes",
    "min_rssi_sta_connect": "-80",
    "min_rssi_sta_disconnect":"-85"
}

2. Apply changes

URL:

http://{{ont_ip}}:48626/api/v2/wlan5/apply

JSON:

{
    "apply":"yes"
}

Wi-Fi 5 GHz SSID 1 Configuration

1. Configuration

URL:

http://{{ont_ip}}:48626/api/v2/wlan5/ssid/1

JSON:

{
    "prefix":"TEST5-",
    "ssid_name":"SSID-1",
    "security":"WPA2/WPA3 Personal",
    "encryption":"AES",
    "password":"wifipass5"
}

2. Apply changes

URL:

http://{{ont_ip}}:48626/api/v2/wlan5/apply

JSON:

{
    "apply":"yes"
}

Router Mode – INTERNET PPPoE

1. Configuration

URL:

http://{{ont_ip}}:48626/api/v2/wan/1

JSON:

{
    "enabled":"yes",
    "conn_type":"pppoe",
    "mode":"router",
    "service_type":"internet",
    "ip_version":"ipv4",
    "ppp_login":"login",
    "ppp_password":"password123",
    "dot1q":"tag",
    "vlan_id":"400",
    "cos":"0",
    "nat_enable":"yes"
}

2. Apply changes

URL:

http://{{ont_ip}}:48626/api/v2/wan/1/apply

JSON:

{
    "apply":"yes"
}

WEB MGMT Configuration

1. Configuration

URL:

http://{{ont_ip}}:48626/api/v2/management/web

JSON:

{
    "wan_mgmt_enable": "yes",
    "wan_port": "8080",
    "wan_https_port":"4443",
    "iphost_port":"8081",
    "iphost_https_port":"4444",
    "lan_web_access_enable":"yes",
    "https_access_enable":"yes"
}

2. Apply changes

URL:

http://{{ont_ip}}:48626/api/v2/management/web/apply

JSON:

{
    "apply":"yes"
}

Useradmin and Admin password change

1. Configuration

URL:

http://{{ont_ip}}:48626/api/v2/management/passwords

JSON:

{
        "admin_password": "admin123",
        "user_password": "adminnnnnn"
}

2. Apply changes

URL:

http://{{ont_ip}}:48626/api/v2/management/passwords/apply

JSON:

{
    "apply":"yes"
}

Port forwarding

1. Configuration

URL:

http://{{ont_ip}}:48626/api/v2/nat_config/port_forwarding_rule/0

JSON:

{
    "active":"yes",
    "protocol":"udp",
    "wan_start_port":"4000",
    "wan_end_port":"5000",
    "local_ip":"192.168.99.125",
    "lan_start_port":"1234",
    "name":"TEST",
    "nat_loopback_enabled":"no"
}

2. Apply changes

URL:

http://{{ont_ip}}:48626/api/v2/nat_config/port_forwarding_rule/apply

JSON:

{
    "apply":"yes"
}
