IGMP proxy

Created On4 February 2021

Last Updated On5 January 2026

byHalny

Document Date	2021.02.04
Tested with ONT HALNy HL-1GE/2, HL-1GC, HL-4G, HL-4GMV	Supported on Version: V2.0.18 above
Tested with ONT HALNy HL-4GQV, HL-4GQVS/2, HL-4GXV/-F, HL-4GMV2/3/4	Supported on Version: V3.1.22 above
Tested with ONT HALNy HL-1B, HL-2BV, HL-4G2	Supported on Version: V4.0.5 above
Tested with ONT HALNy HL-4BX3V-F	Supported on Version: V5.0.8 above

IGMP proxy concept

IGMP proxy is used for providing both Internet and IPTV services on the same LAN subnet. This solution allows STB to establish an Internet connection for services like VoD, Spotify, Deezer, YouTube, Internet radio stations, and others.

Service scenarios

ONTs HALNy supports two IGMP proxy scenarios:

Internet and Multicast provided in two separate VLAN

Internet and Multicast provided in the same VLAN

ONT with firmware series V2.0.X

Service Scenario 1 – Internet and Multicast provided in two separate VLAN

WAN1 – Internet

WAN2 – IPTV Multicast

Portbinding settings

The same settings can be configured via XML provisioning:

    <WAN>
        <WAN1>
            <ACTIVE>YES</ACTIVE>
            <MODE>ROUTER</MODE>
            <SERVICE_DESCRIPTION>INTERNET</SERVICE_DESCRIPTION>
            <WAN1_PORT_BINDING>
                <LAN1>YES</LAN1>
                <LAN2>YES</LAN2>
                <LAN3>YES</LAN3>
                <LAN4>YES</LAN4>
                <WLAN_2.4G_SSID1>YES</WLAN_2.4G_SSID1>
                <WLAN_5G_SSID1>YES</WLAN_5G_SSID1>
            </WAN1_PORT_BINDING>
            <VLAN_ENABLE>TAG</VLAN_ENABLE>
            <VLAN_ID>100</VLAN_ID>
            <COS>0</COS>
            <IP_VERSION>IPv4</IP_VERSION>
            <CONNECTION_TYPE>DHCP</CONNECTION_TYPE>
            <MTU></MTU>
            <DEFAULT_ROUTE>YES</DEFAULT_ROUTE>
            <NAT_ENABLE>YES</NAT_ENABLE>
            <IGMP_PROXY></IGMP_PROXY>
        </WAN1>
        <WAN2>
            <ACTIVE>YES</ACTIVE>
            <MODE>ROUTER</MODE>
            <SERVICE_DESCRIPTION>OTHER</SERVICE_DESCRIPTION>
            <WAN2_PORT_BINDING>
                <LAN1>YES</LAN1>
                <LAN2>YES</LAN2>
                <LAN3>YES</LAN3>
                <LAN4>YES</LAN4>
                <WLAN_2.4G_SSID1>YES</WLAN_2.4G_SSID1>
                <WLAN_5G_SSID1>YES</WLAN_5G_SSID1>
            </WAN2_PORT_BINDING>
            <VLAN_ENABLE>TAG</VLAN_ENABLE>
            <VLAN_ID>200</VLAN_ID>
            <COS>0</COS>
            <IP_VERSION>IPv4</IP_VERSION>
            <CONNECTION_TYPE>DHCP</CONNECTION_TYPE>
            <MTU></MTU>
            <DEFAULT_ROUTE>NO</DEFAULT_ROUTE>
            <NAT_ENABLE>NO</NAT_ENABLE>
            <IGMP_PROXY>YES</IGMP_PROXY>
        </WAN2>

NOTE: This is part of an example XML file with only mandatory settings.

Service Scenario 2 – Internet and Multicast provided in the same VLAN

WAN1 – Internet and IPTV multicast

Portbinding settings

The same settings can be configured via XML provisioning:

    <WAN>
        <WAN1>
            <ACTIVE>YES</ACTIVE>
            <MODE>ROUTER</MODE>
            <SERVICE_DESCRIPTION>INTERNET</SERVICE_DESCRIPTION>
            <WAN1_PORT_BINDING>
                <LAN1>YES</LAN1>
                <LAN2>YES</LAN2>
                <LAN3>YES</LAN3>
                <LAN4>YES</LAN4>
                <WLAN_2.4G_SSID1>YES</WLAN_2.4G_SSID1>
                <WLAN_5G_SSID1>YES</WLAN_5G_SSID1>
            </WAN1_PORT_BINDING>
            <VLAN_ENABLE>TAG</VLAN_ENABLE>
            <VLAN_ID>100</VLAN_ID>
            <COS>0</COS>
            <IP_VERSION>IPv4</IP_VERSION>
            <CONNECTION_TYPE>DHCP</CONNECTION_TYPE>
            <MTU></MTU>
            <DEFAULT_ROUTE>YES</DEFAULT_ROUTE>
            <NAT_ENABLE>YES</NAT_ENABLE>
            <IGMP_PROXY>YES</IGMP_PROXY>
        </WAN1>

NOTE: This is part of an example XML file with only mandatory settings.

ONT with firmware series V3.X.X, V4.0.X, V5.0.X

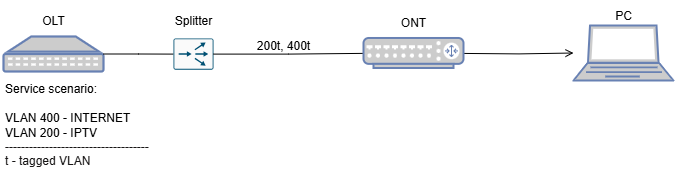

Service Scenario 1 – Internet and Multicast provided in two separate VLAN

WAN1 – Internet

WAN2 – IPTV

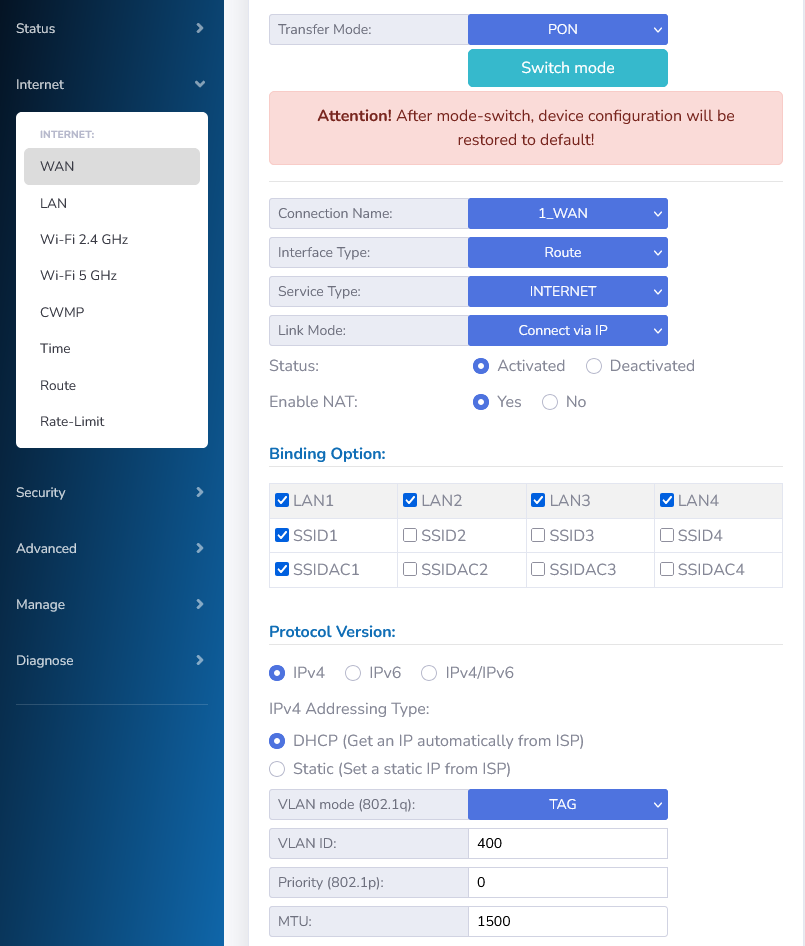

Enable IGMP Proxy

The same settings can be configured via XML provisioning:

<WAN>
	<WAN1>
		<ACTIVE>YES</ACTIVE>
		<MODE>ROUTER</MODE>
		<SERVICE_DESCRIPTION>INTERNET</SERVICE_DESCRIPTION>
			<WAN1_PORT_BINDING>
				<LAN1>YES</LAN1>
				<LAN2></LAN2>
				<LAN3></LAN3>
				<LAN4></LAN4>
				<LAN_2.5G>YES</LAN_2.5G>
				<WLAN_2.4G_SSID1></WLAN_2.4G_SSID1>
				<WLAN_5G_SSID1></WLAN_5G_SSID1>
			</WAN1_PORT_BINDING>
			<VLAN_ENABLE>TAG</VLAN_ENABLE>
			<VLAN_ID>400</VLAN_ID>
			<COS>0</COS>
			<IP_VERSION>IPv4</IP_VERSION>
			<CONNECTION_TYPE>DHCP</CONNECTION_TYPE>
			<MTU>1500</MTU>
			<DEFAULT_ROUTE>YES</DEFAULT_ROUTE>
			<NAT_ENABLE>YES</NAT_ENABLE>
			<IGMP_PROXY></IGMP_PROXY>
			<OPTION82_ENABLE></OPTION82_ENABLE>
	</WAN1>
	<WAN2>
		<ACTIVE>YES</ACTIVE>
		<MODE>ROUTER</MODE>
		<SERVICE_DESCRIPTION>OTHER</SERVICE_DESCRIPTION>
		<WAN2_PORT_BINDING>
			<LAN1>YES</LAN1>
			<LAN2></LAN2>
			<LAN3></LAN3>
			<LAN4></LAN4>
			<LAN_2.5G>YES</LAN_2.5G>
			<WLAN_2.4G_SSID1></WLAN_2.4G_SSID1>
			<WLAN_5G_SSID1></WLAN_5G_SSID1
		</WAN2_PORT_BINDING>
		<VLAN_ENABLE>TAG</VLAN_ENABLE>
		<VLAN_ID>200</VLAN_ID>
		<COS>0</COS>
		<IP_VERSION>IPv4</IP_VERSION>
		<CONNECTION_TYPE>DHCP</CONNECTION_TYPE>
		<MTU></MTU>
		<DEFAULT_ROUTE>NO</DEFAULT_ROUTE>
		<IPv6_DHCP_MODE></IPv6_DHCP_MODE>
		<IPv6_DHCP_PD></IPv6_DHCP_PD>
		<NAT_ENABLE>NO</NAT_ENABLE>
		<IGMP_PROXY>YES</IGMP_PROXY>
	</WAN2>
</WAN>

NOTE: This is part of an example XML file with only mandatory settings.

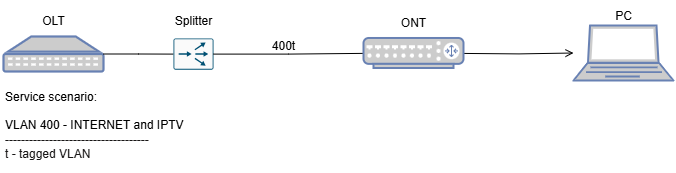

Service Scenario 2 – Internet and Multicast provided in the same VLAN

WAN1 – Internet and IPTV

Enable IGMP Proxy

The same settings can be configured via XML provisioning:

<WAN>
	<WAN1>
		<ACTIVE>YES</ACTIVE>
		<MODE>ROUTER</MODE>
		<SERVICE_DESCRIPTION>INTERNET</SERVICE_DESCRIPTION>
			<WAN1_PORT_BINDING>
				<LAN1>YES</LAN1>
				<LAN2></LAN2>
				<LAN3></LAN3>
				<LAN4></LAN4>
				<LAN_2.5G>YES</LAN_2.5G>
				<WLAN_2.4G_SSID1></WLAN_2.4G_SSID1>
				<WLAN_5G_SSID1></WLAN_5G_SSID1>
			</WAN1_PORT_BINDING>
			<VLAN_ENABLE>TAG</VLAN_ENABLE>
			<VLAN_ID>400</VLAN_ID>
			<COS>0</COS>
			<IP_VERSION>IPv4</IP_VERSION>
			<CONNECTION_TYPE>DHCP</CONNECTION_TYPE>
			<MTU>1500</MTU>
			<DEFAULT_ROUTE>YES</DEFAULT_ROUTE>
			<NAT_ENABLE>YES</NAT_ENABLE>
			<IGMP_PROXY>YES</IGMP_PROXY>
			<OPTION82_ENABLE></OPTION82_ENABLE>
	</WAN1>
</WAN>

NOTE: This is part of an example XML file with only mandatory settings.
